Connecting to a home network (LAN)
This unit can connect to a network using a wired LAN or wireless LAN.
You can connect this unit to your home network (LAN) to enable various
types of playback and operations as described below.
0
Playback of network audio such as Internet Radio and from your media
server(s)
0
Playback of music content from online streaming services
0
Using the Apple AirPlay function
0
Operation on this unit via the network
0
Firmware Update
For connections to the Internet, contact an ISP (Internet Service
Provider) or a computer shop.
Wired LAN

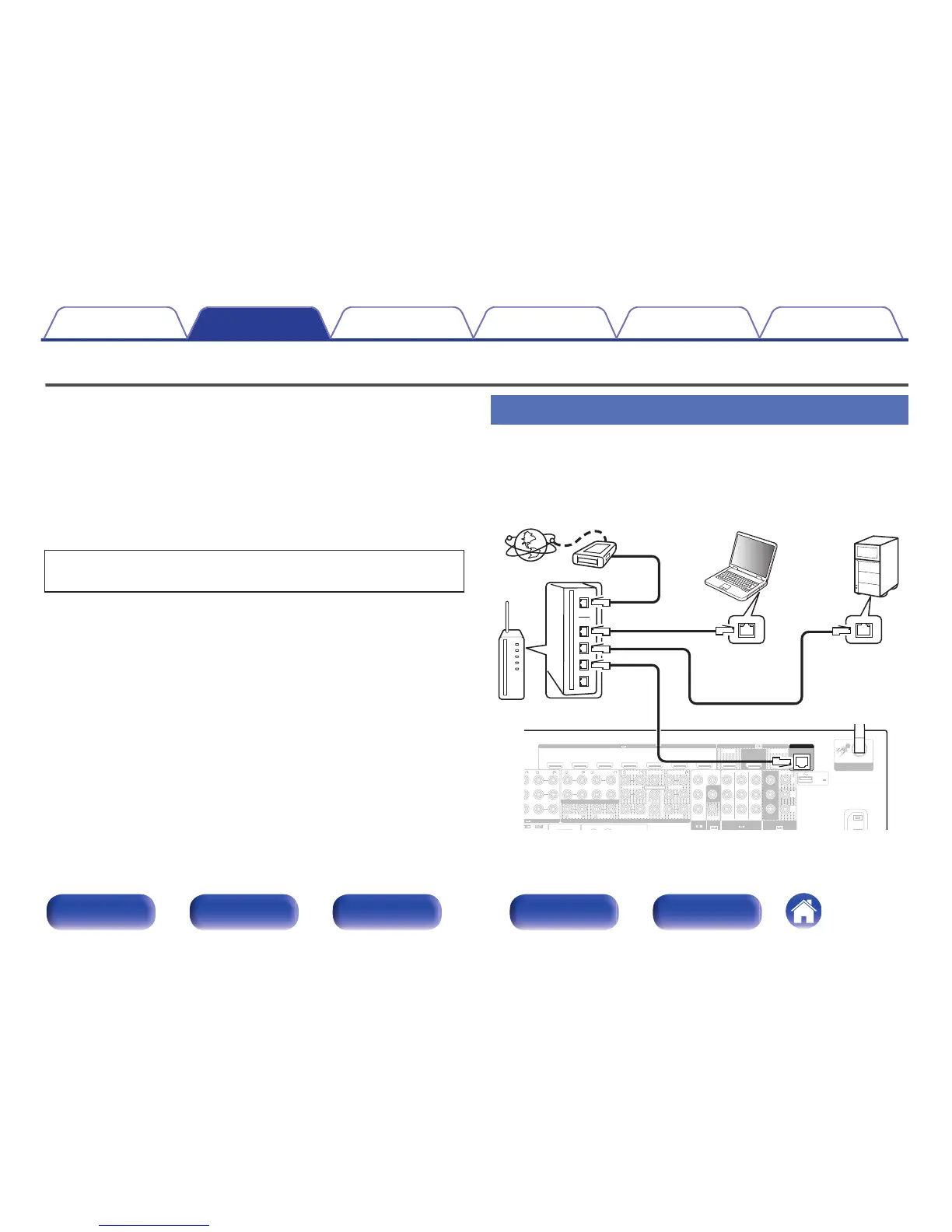

To make connections via wired LAN, use a LAN cable to connect the
router to this unit as shown in the figure below.
.
T
2 DVD
2 DVD 1 CBL/SAT
3 Blu-ray 6 AUX2
7 CD
2 CD 1
TV
AUDIO
6 MEDIA PLAYER
4 GAME
5 MEDIA PLAYER
5 CD
4 GAME
1 CBL/SAT 1 CBL/SAT
2 DVD
2 DVD 3
Blu-ray 4 GAME
7.1CH IN
PRE OUT
(ASSIGNABLE) (ASSIGNABLE)
VIDEO COMPONENT VIDEO VIDEO COMPONENT VIDEO
ARC
MONITOR1
MONITOR/ZONE3 ZONE2
MONITOR/ZONE3
ZONE2
ZONE23 Blu-ray
MONITOR2
STRAIGHT CABLE
ZONE2 ZONE3
FRONT
FRONT
SURROUND SURROUND CENTER SUBWOOFER
SURROUND BACK FRONT WIDE CENTER
HEIGHT1
SURROUND BACK HEIGHT2
1
SUBWOOFER
(ASSIGNABLE)
(ASSIGNABLE)
HDMI HDMI
2
1 CBL/SAT
Bluetooth
/
Wi-Fi
ANTENNA
AC IN
Y
P
B/
C
B
PR/
C
R
5V/1A
NETWORK
Internet
Modem
PC
Router
To WAN side
To LAN port
To LAN port
NAS
(Network Attached
Storage)
LAN port/ Ethernet
connector
LAN port/ Ethernet
connector
