This unit is compatible with Audyssey DSX
®
, Dolby Atmos, DTS Neo:X and DTS:X
which offers an even wider and deeper surround sensation. (v p. 350, 351,
355)
When using Audyssey DSX
®
, install front wide speakers or front height speakers.
0
Dolby Atmos is not supported in a 5.1ch or less speaker configuration.
Update (DTS:X)
0
DTS:X can be selected regardless of the speaker configuration.
0
DTS Neo:X is no longer supported once you update to DTS:X.
0

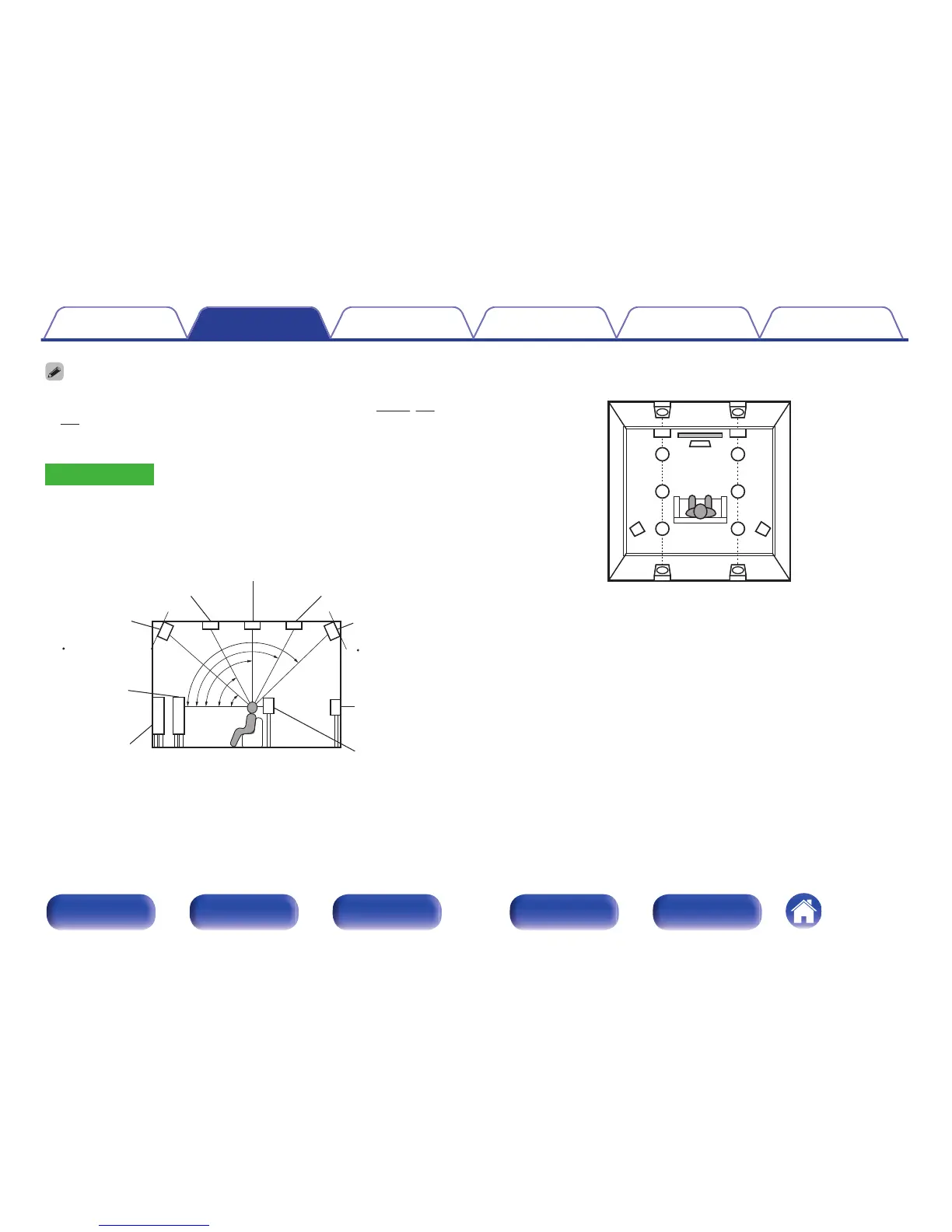

Use the illustration below as a guide for how high each speaker should be
installed. The height does not need to be exactly the same.
.
z1
z2
z3
z4
z5
Point slightly
downwards
Front height
speaker
z1 30° - 45°
z4 125° - 150°
z2 30° - 55°
z3 65° - 100°
z5 135° - 150°
GViewed from the sideH
Top middle speaker
Top front speaker
Top rear speaker
Front speaker
Surround
speaker
Surround
back
speaker
Front wide
speaker
Point slightly
downwards
Rear height
speaker
.
SL
TRL
RHL RHR
FHL
TML
TFL
FL
SR
TRR
FHR
TMR
TFR
FR
C
Height speakers layout
GViewed from the topH
Contents
Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
