Denon AVR-X7200W User Manual

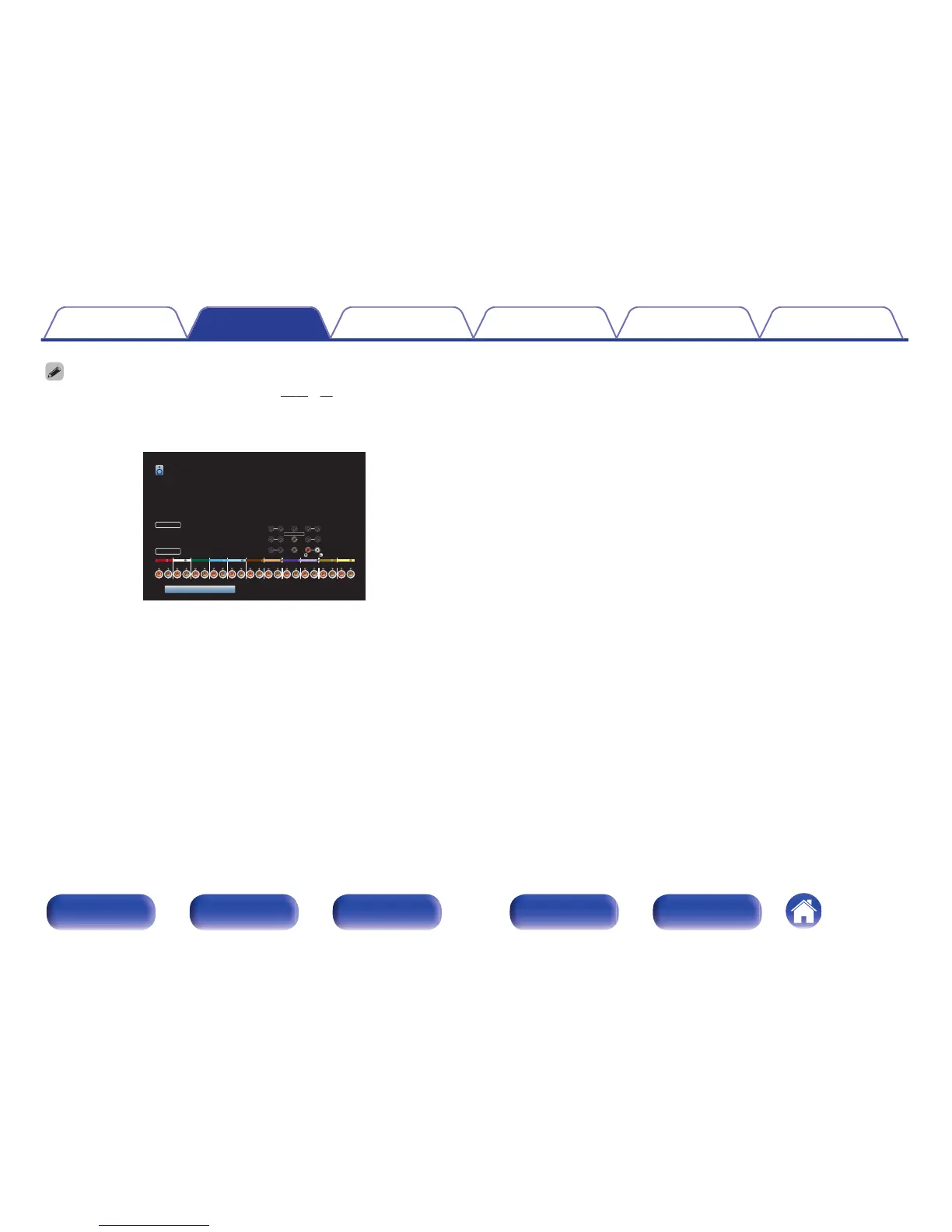

In addition to the connections described in (v p. 49 - 64), this unit allows for
various speaker connections with the “Amp Assign” setting.
Also refer to the menu screen in “View Terminal Config.” on the “Amp Assign” setting
screen, which shows how to make connections in your environment.
.
1
SUBWOOFER
T.REAR
CENTER SURROUND FRONT WIDE/HEIGHT2 SURROUND BACK SURROUNDFRONTFRONT SURROUND BACK FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1
2
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1FRONT
Speakers/Amp Assign
Back
PRE OUT
SPEAKERS
AUTO SWITCHING AUTO SWITCHING AUTO SWITCHING
Assign Mode
-Height Speakers
-Height Layout
-Wide/Height2 Front Wide
-Pre-out Top Rear
11.1ch
4 Height Speakers
Top Front & Top Rear
Contents
Connections Playback Settings Tips Appendix
48
Front panel Display Rear panel Remote Index

Denon AVR-X7200W Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	102 dB
Power output per channel (1KHz@6 Ohm)	190 W
Power output per channel (20-20KHz@8 Ohm)	210 W
HDMI in	8
Audio (L/R) in	7
Composite video in	5
Digital audio optical in	2
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	3
12V trigger	Yes
Speakers connectivity type	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Optical drive included	No
Display	LCD
Product color	Black
Audio decoders	Dolby TrueHD, DTS 96/24, DTS-ES, DTS-HD Master Audio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	780 W

Weight and Dimensions

Depth	427 mm
Width	434 mm
Height	196 mm
Weight	17800 g
