Denon AVR-X7200W User Manual

n

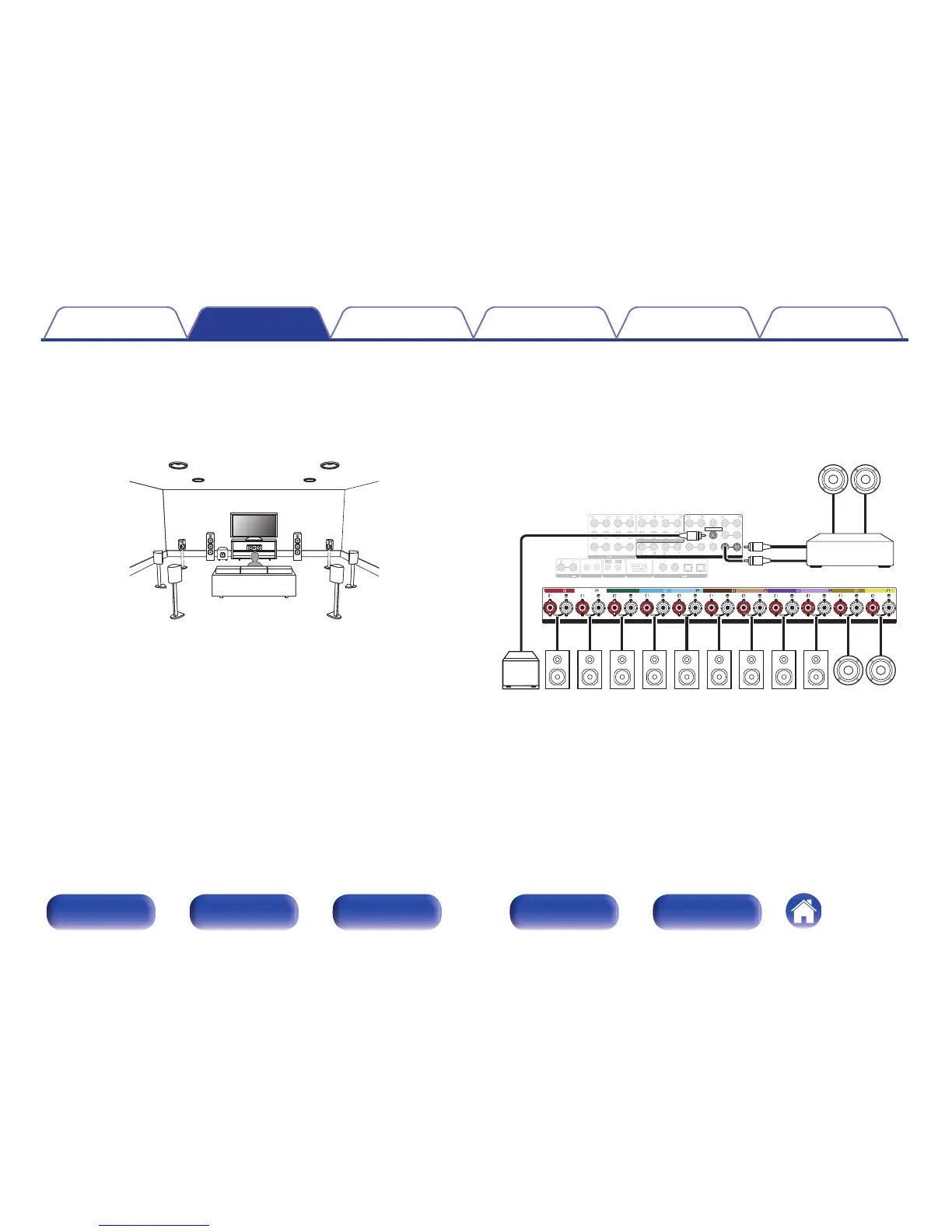

11.1-channel playback
This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time.
You can connect speakers for up to 13-channels for MAIN ZONE by using an external power amplifier. When you connect speakers for 12 or more
channels, the output speakers automatically switch according to the input signal and sound mode.
.
C
FL FR
SBL
SBR
SW
FWL
FWR
TRR
TRL
TFR
TFL
SL SR
.
1 CBL/SAT
PHONO
2 DVD 1 CBL/SAT
2 CD 1
TV
AUDIO
6 MEDIA PLAYER
2 DVD
12
3 Blu-ray
5 CD
4 GAME
RS-232C
7.1CH IN
REMOTE CONTROL TRIGGER OUT
PRE OUT
COAXIAL OPTICAL
STRAIGHT CABLE
I
R
DC12V 150mA MAX.
ZONE2 ZONE3
FRONT
FRONT
SURROUND SURROUND CENTER SUBWOOFER
SURROUND BACK FRONT WIDE CENTER
HEIGHT1
SURROUND BACK HEIGHT2
1
SUBWOOFER
AUDIO
(ASSIGNABLE)
AUDIO
DIGITAL AUDIO
(ASSIGNABLE)
2
ASSIGNABLE ASSIGNABLE ASSIGNABLE
SPEAKERS
IMPEDANCE : 4㨪16
ǡ
CLASS 2 WIRING
CENTER SURROUND SURROUND BACK SURROUNDFRONT SURROUND BACK FRONT WIDE/HEIGHT2FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1
FRONT
TRR TRL
SBR SBLSW
FR FL C SR SL
FWR FWL TFR TFL
Power amplifier
Contents
Connections Playback Settings Tips Appendix
52
Front panel Display Rear panel Remote Index

Denon AVR-X7200W Specifications
