Denon DCD-710AE - SEMICONDUCTOR DATA; IC11: TMP92 FD23 AFG Pin Diagram

36
DCD-710AE
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
The semiconductor which described a detailed drawing in a schematic diagram are omitted to list.
1. IC’s

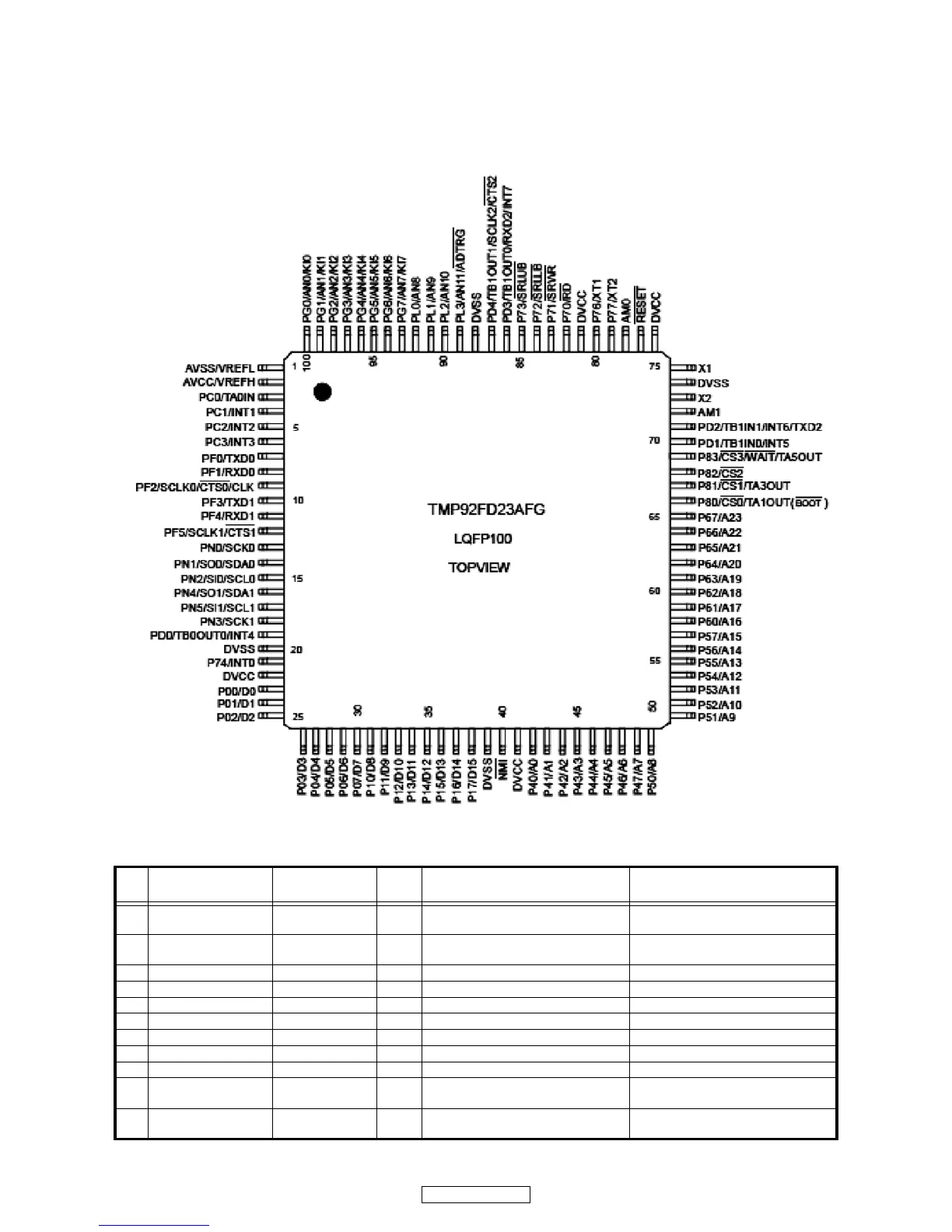

TMP92FD23AFG (IC11)
TMP92FD23AFG Terminal Function
Pin
No
IC Terminal ame Terminal name
I/O
setting
Terminal function Remarks
1 AVSS/VREFL Power
supply(GND)
P Power supply (GND)
2 AVCC/VREFH Power
supply(+3.3V)
P Power supply (+3.3V)
3 PC0/TA0IN Non(PU) I Non(PU) Port only for input (Schmitt)
4 PC1/INT1 Non(PU) I POWER KEY (F107 only) Port only for input (Schmitt)
5 PC2/INT2 PLAY KEY I PLAY KEY Port only for input (Schmitt)
6 PC3/INT3 OP/CL KEY I OP/CL KEY Port only for input (Schmitt)
7 PF0/TXD0 FL_MDT O FL tube communication line (data) (Schmitt I input)
8 PF1/RXD0 OPEN O Non (NC) (Schmitt I input)
9 PF2/SCLK0/CTS0/CLK FL_CLK O FL tube communication line (clock) (Schmitt I input)
10 PF3/TXD1/HSSO [TXD] O DENON BUS [Communication lines for
writing](F107 only)
(Schmitt I input)
11 PF4/RXD1/HSSI [RXD] I DENON BUS [Communication lines for
writing](F107 only)
(Schmitt I input)
