Denon DN-D4500 - Details of Recycle Parts for CD Mechanism Unit

61
DN-D4500

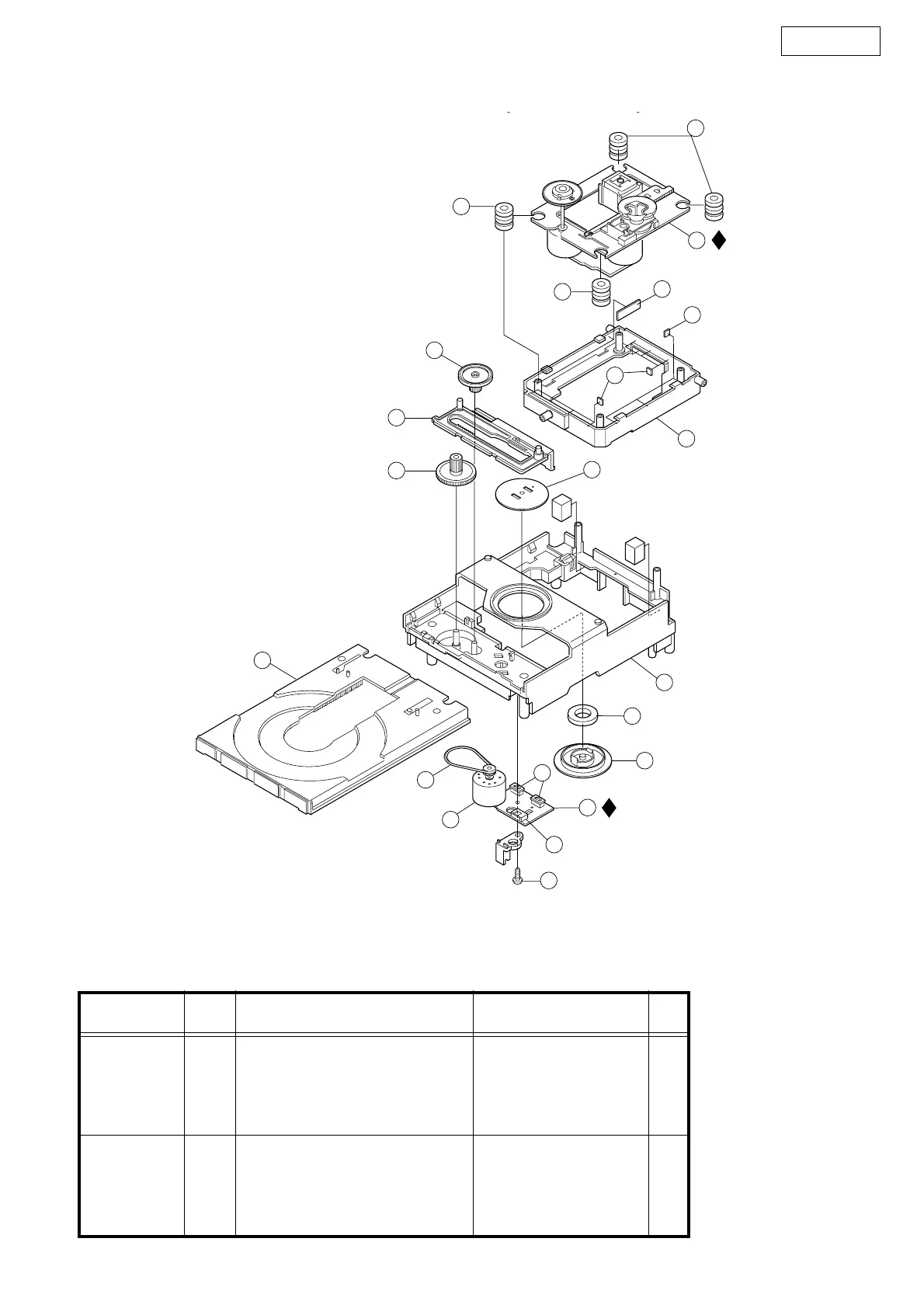

Exploded view of CD Mechanism unit (CD11FTA3N)
Details of Recycle parts for CD Mechanism unit
＊You have to remove the parts that marked “WEEE Mark ◆ " when the recycling processing. (Europe model only)
Ref. No.
WEEE
Mark
Part Name Material Q'ty
1 FRAME CHASSIS ABS 1
2 MAGNET PLATE Steel 1
3 RUBBER CUSHION Rubber 2
4 RUBBER CUSHION Rubber 2
5 MAGNET HOLDER ABS 1
6 DRIVE GEAR POM 1
7 SLIDE GEAR ABS 1
8 PULLEY GEAR POM 1
9 SQUARE BELT Rubber 1
10 MAGNET Steel 1
()
