TECHNICAL SPECIFICATIONS

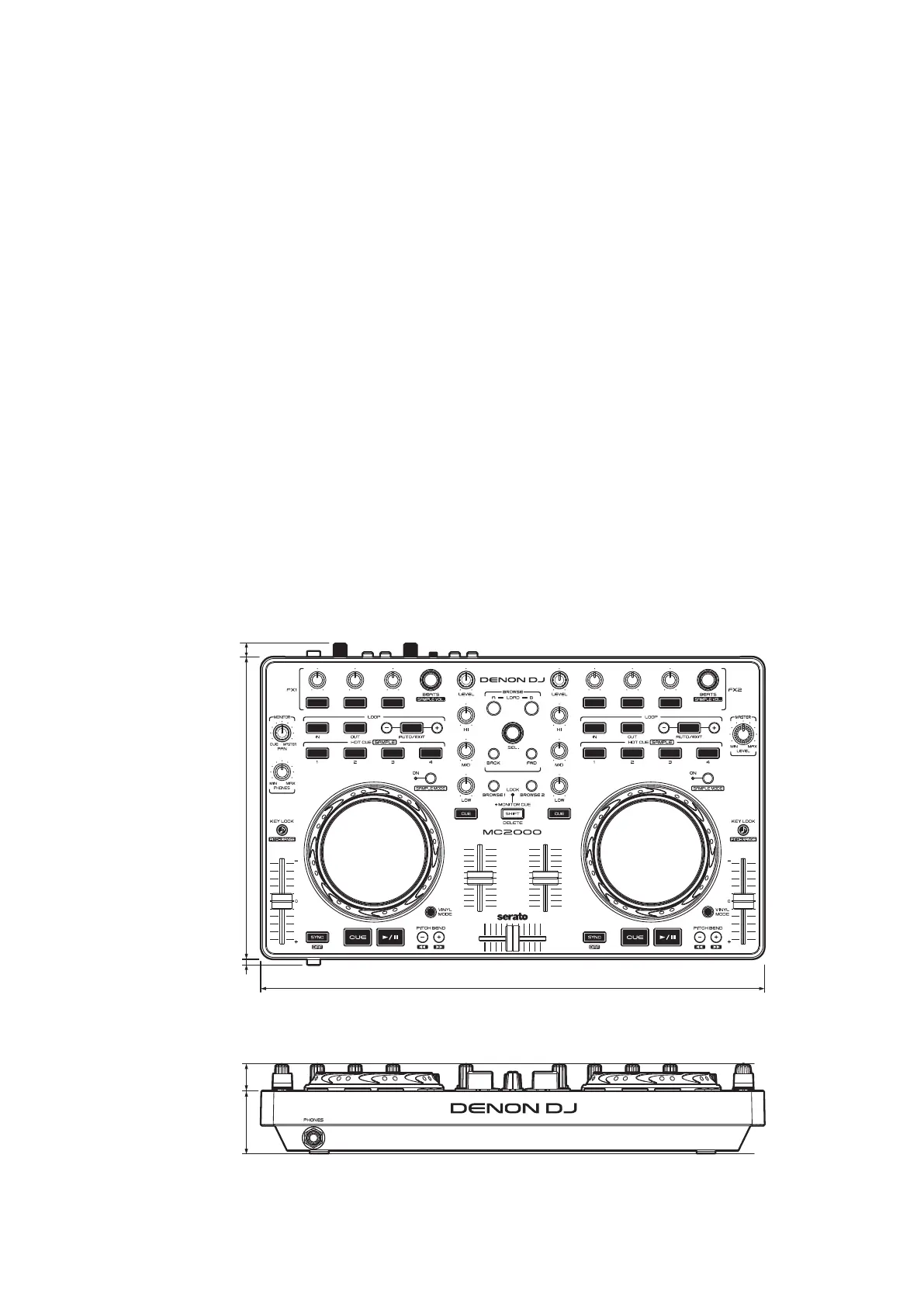

DIMENSION
n
Audio
(0 dBu=0.775 Vrms, 0 dBV =1 Vrms)
• LINE inputs 1 Stereo
Unbalanced RCA terminal
Input impedance: 10 kΩ
Level: 0 dBV
Signal to Noise ratio: Over 82 dB
• Microphone inputs 1 Monaural
Microphone : Balanced 1/4 in. TRS terminal
(Tip: hot, Ring: cold, Sleeve: ground)
Input impedance: 10 kΩ
Level: –48 – –20 dBu (Unity = –40 dBu)
• USB AUDIO inputs 2 Stereo (4 Monaural) 16 bit, Fs: 48 kHz USB B
• MASTER output
Unbalanced: Stereo RCA terminal
Load impedance: 10 kΩ
Level: 2.55 dBV (Max +10dBV)
Frequency response: 20 Hz – 20 kHz (±1 dB)
THD: Less than 0.05 %
Crosstalk: Less than –85 dB (1 kHz)
• Headphone output Stereo 1/4 in. (1 mm)
Load impedance: 40 Ω
Level: Over 50 mW
n
General
USB MIDI input/output: IN: 1ch, OUT: 1ch MIDI 1.0, USB B
Channel fader: PPM 7 Point LED –20 – +10 dB, Peak
CH fader: 45 mm slim type fader
Cross fader: 45 mm fader
Power supply voltage: 5 V (USB Bus Power)
Power consumption: 500 mA
Operating
temperature:
+5 °C – +35 °C
Operating humidity: 25 % – 85 %
Storage temperature: –20 °C – +60 °C
400mm
10.6mm
11.5mm
50.0mm
240.0mm
4.6mm
