Denon MC2000 - Page 7

7
Disassembl
y

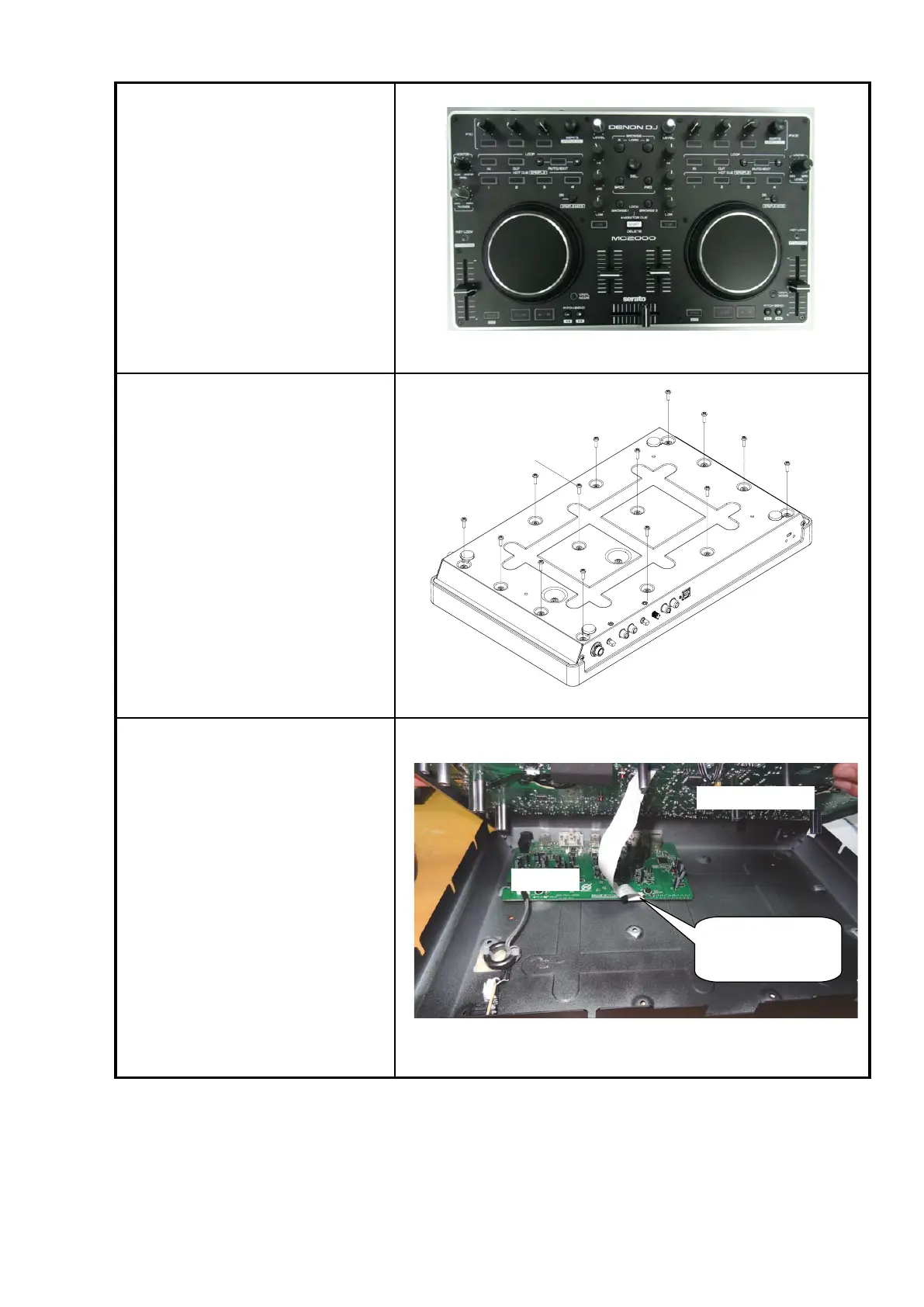

Illustration
1.Dismantle the packaging, taking out
the machine .
2. Remove the screws form bottom base .
3. Disconnect the FCC cable,then remove
the panel from bottom base .
1
2
3
4
7
8
5
6
11
12
13
14
螺絲*14
602-XM610-522
9
10
CONTROL PCB
I/O PCB
Remove the FFC cable
from I/O PCB(REF
N
O.CN300A)
SCREW *14
CN300A
