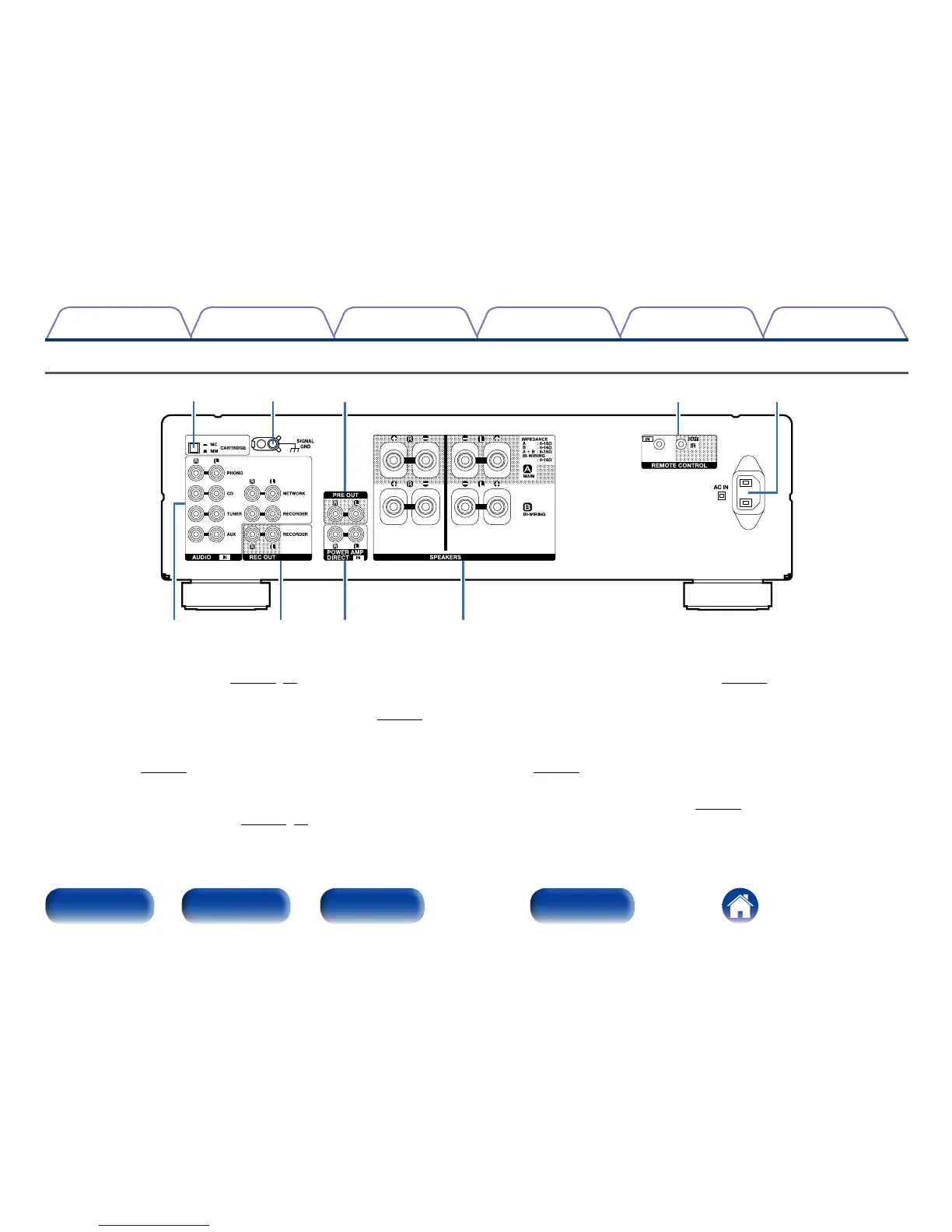

Rear panel
t
yio
u
q w e r
q Audio connectors (AUDIO)
Used to connect players (vpage17, 18).
w REC OUT connectors (RECORDER)
Used to connect the input connector of a recorder (vpage18).
e Power amplifier direct connectors (POWER AMP DIRECT)
Used to connect a pre-amplifier when this unit is used as a power
amplifier (vpage19).
The volume should be adjusted on the connected device.
r Speaker system terminals (SPEAKERS)
Used to connect speakers (vpage15, 16).
t AC inlet (AC IN)
Used to connect the power cord (vpage20).
y REMOTE CONTROL jacks
Extension jack for future use.
u PRE OUT connectors
Use this to add such equipment as a power amplifier or subwoofer
(vpage19).
i SIGNAL GND jacks
Used to connect a turntable (vpage17).
o CARTRIDGE selection switch
Set this switch to MM or MC according to the type of cartridge used
on your turntable.

Denon PMA-1520AE Specifications

General

Amplifier class	-
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (4 Ohm)	280 W
RMS power output per channel (8 Ohm)	140 W
Phono audio in (L,R)	Yes
Purpose	Performance/stage
Product color	Silver
Connectivity technology	Wired
Power consumption (standby)	0.2 W

Weight and Dimensions

Depth	410 mm
Width	434 mm
Height	134 mm
Weight	16100 g
