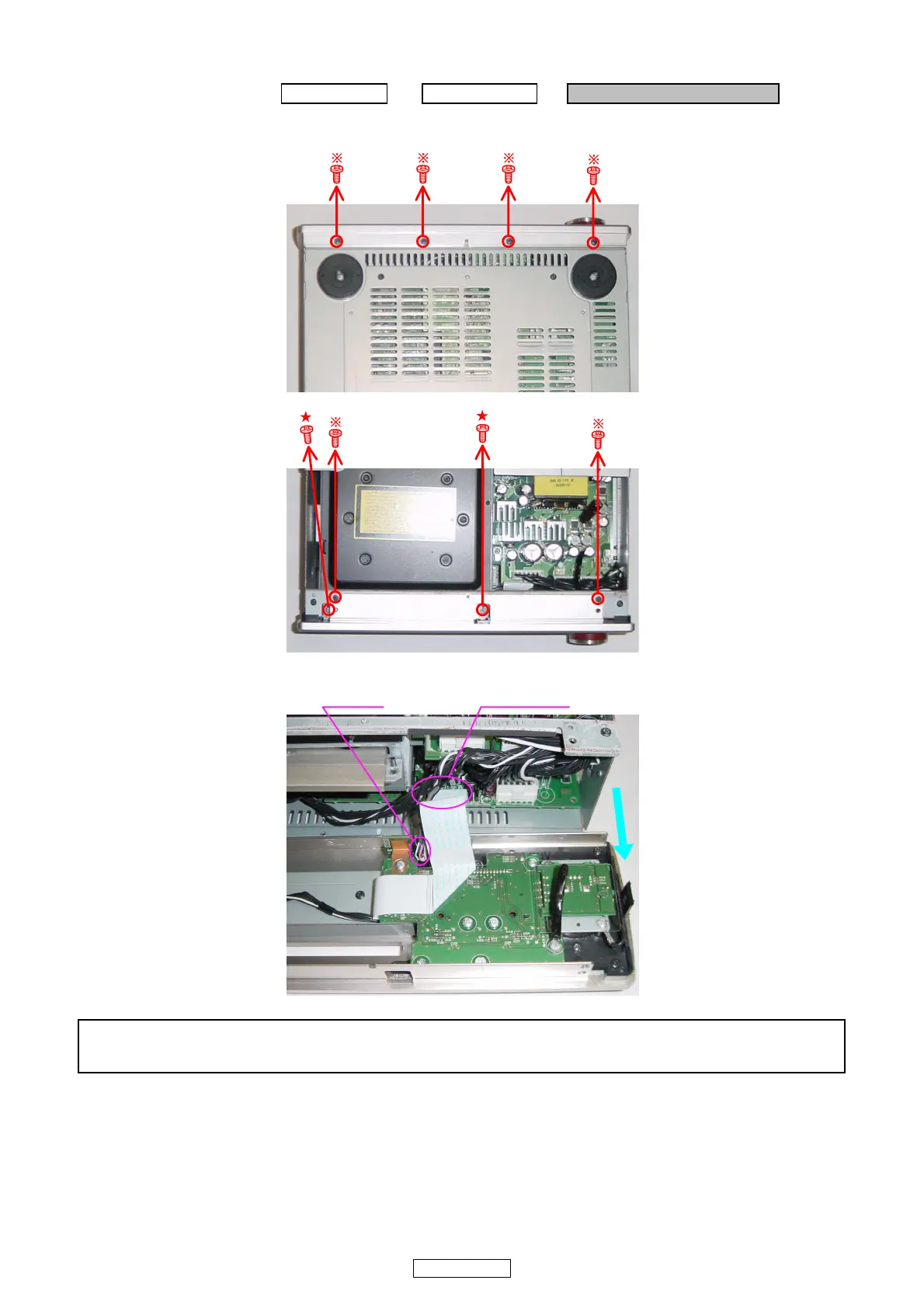

1. FRONT PANEL SUB ASSY
(1) Remove the screws. ( ねじをはずす。）
(2) Disconnect the connector wire and FFC cable.（コネクタワイヤーと FFC ケーブルをはずす。）
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL SUB ASSY.
FRONTPANELSUBASSY の各基板のはずしかたは "EXPLODEDVIEW" を参照してください。
Proceeding (手順) : TOP PANEL → SIDE PANEL → FRONT PANEL SUB ASSY
Bottom view
Top view
FFC CABLE
Picture A
CY051
