Denon RCD-M39 - About the Photos Used for Descriptions in the DISASSEMBLY Section; Loader Panel Assy

12

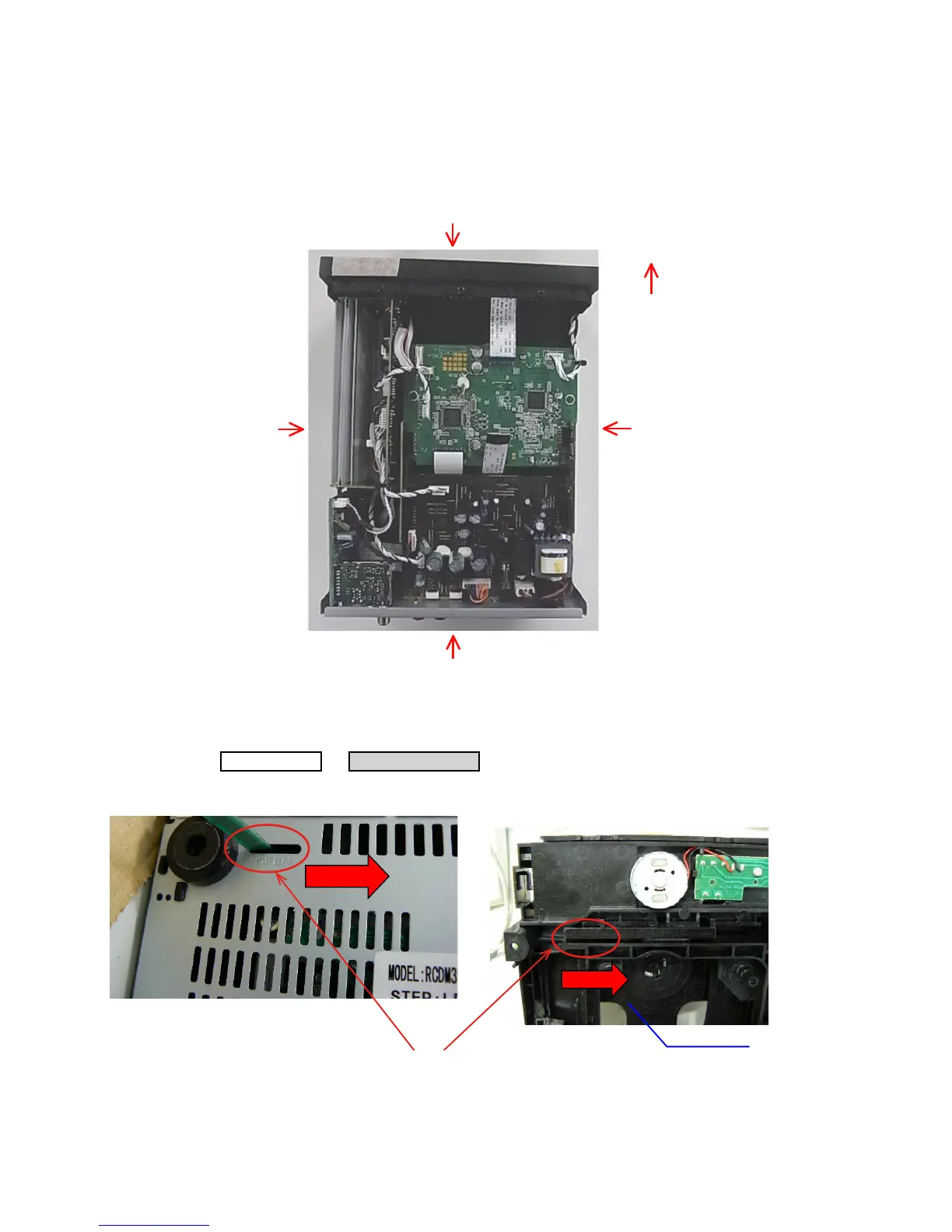

About the photos used for "descriptions in the DISASSEMBLY" section
• The direction from which the photographs used herein were photographed is indicated at "Direction of photograph: ***"
at the left of the respective photographs.
• Refer to the table below for a description of the direction in which the photos were taken.
• Photographs for which no direction is indicated were taken from above the product.
• The photograph is RCD-M39 model.
1. LOADER PANEL ASSY
(1) Detach the LOADER PANEL.
The viewpoint of each photograph
(Photografy direction)
［View from above］
Front side
Direction of photograph: B
Direction of photograph: D
Direction of photograph: C
Direction of photograph: A
Proceeding : TOP COVER
LOADER PANEL
→
CD MECHA
You can slide in the arrow direction to pull out the TRAY.
