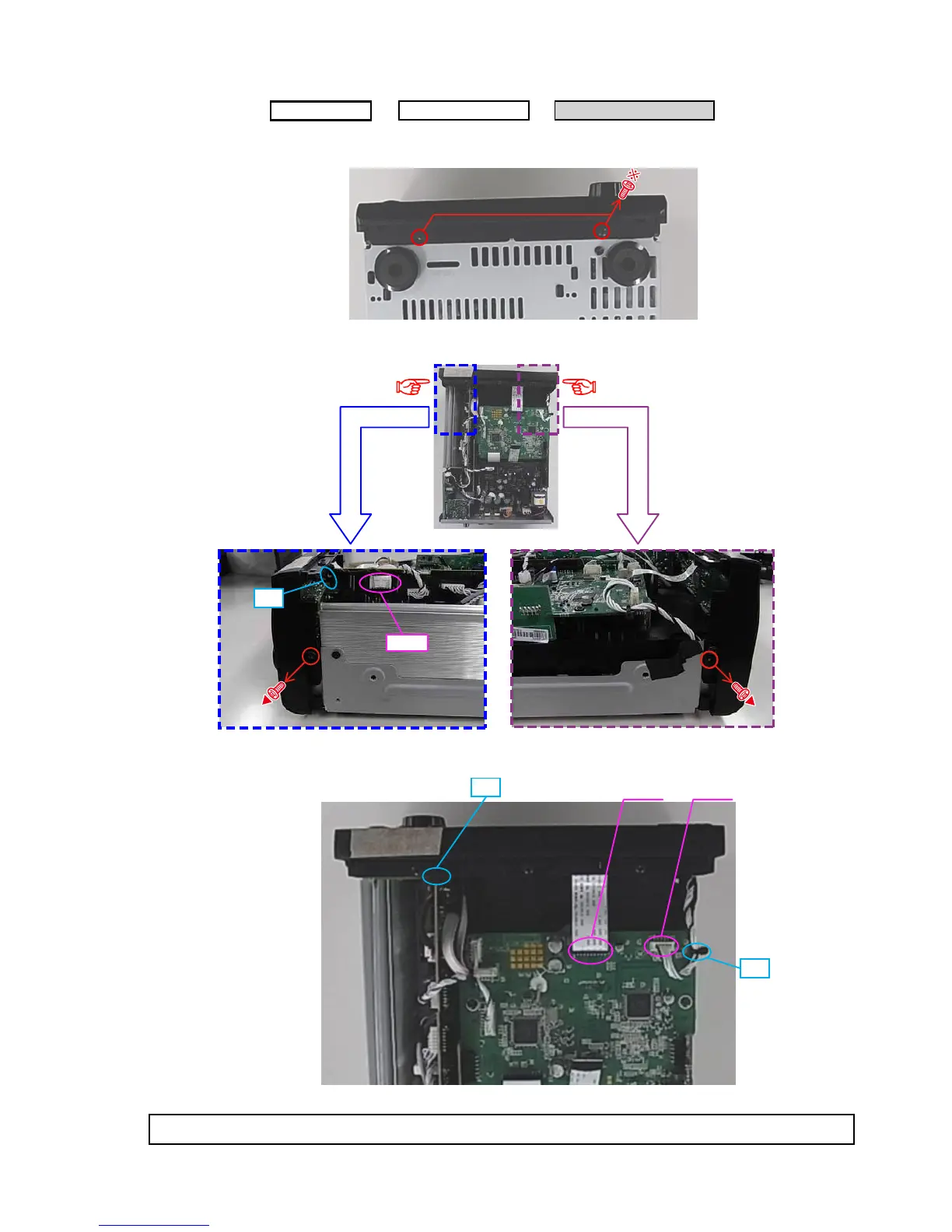

2. FRONT PANEL ASSY
(1) Remove the screws.
(2) Disconnect the connector wire, then remove the screws.
(3) Cut the wire clamp band, then disconnect the connector wires.
Proceeding : TOP COVER
LOADER PANEL
→
FRONT PANEL ASSY
→
View from bottom
cut
CWAJ
Direction of
photograph: D
Direction of
photograph: C
CWMF FCMA
Direction of photograph: B
cut
cut
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANEL ASSY.
