Denon RCD-M39 Service Manual

Name: Denon RCD-M39
Brand: Denon
Rating: 4 (1 reviews)

105 pages

To Next Page

To Previous Page

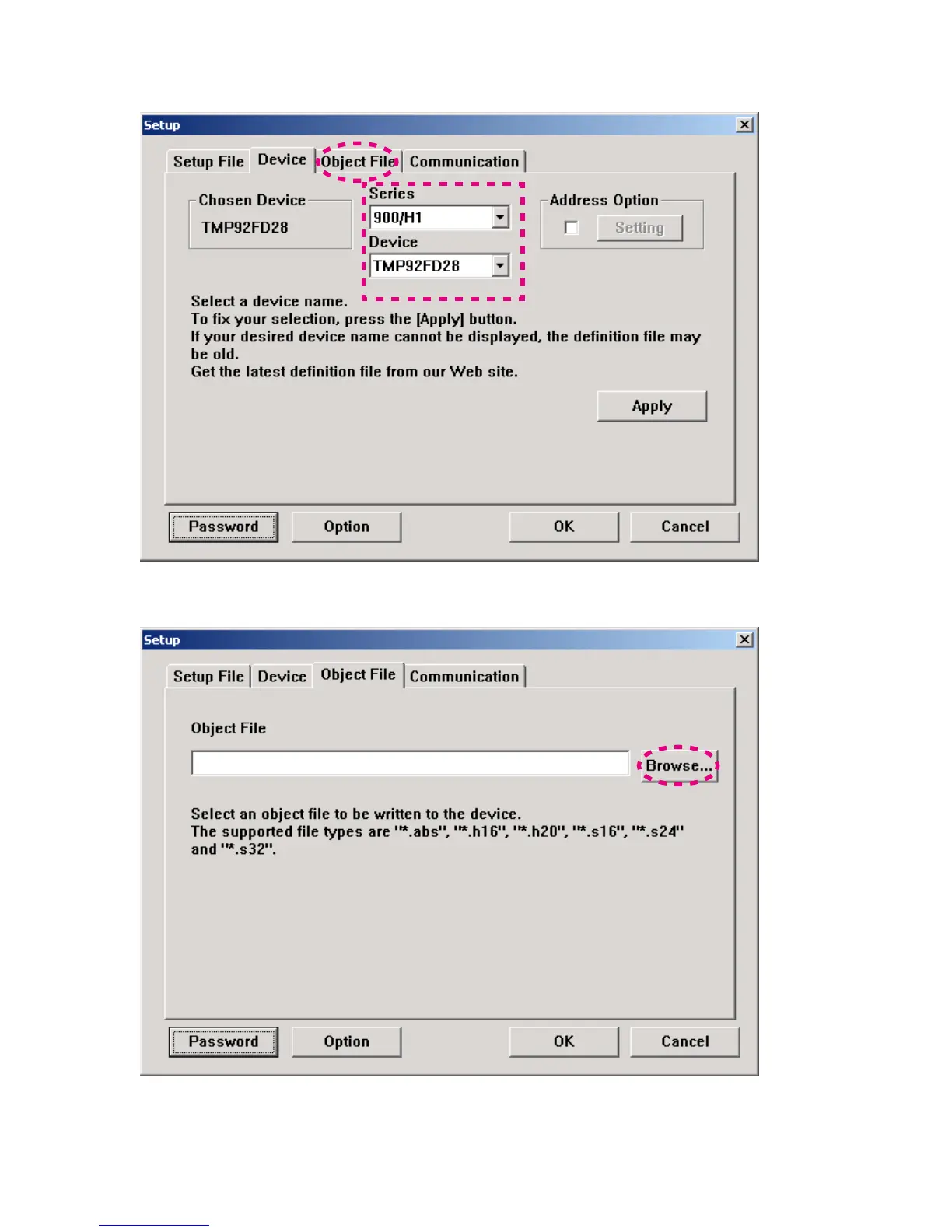

(8) Choose the TMP92FD28 in the Device, and choose the 900/H1 in the Series.

And click Object File tab.

(9) Click Browse.

Default Chapter2
- Table of Contents2
About this Manual3
- What You Can Do with this Manual3
- Using Adobe Reader (Windows Version)4
- Safety Precautions6
Note for Schematic Diagram7
Specifications9
Caution in Servicing10
- Initializing STEREO CD RECEIVER10
- Support for Asia-Pacific Tropical Climate Regions10
Disassembly11
- About the Photos Used for "Descriptions in the DISASSEMBLY" Section12
- Loader Panel Assy12
- Front Panel Assy13
- CD Mecha14
- Heat Sink Sub Assy15
- Rear Panel Assy17
- Power Unit Assy19
- Mcu Pcb Unit Assy19
- Trans19
Note Handling and Replacement of the Laser Pick-Up20
- Protection of the LD20
- Precautions When Handling the Laser CD Mechanism20
- Cautions on Assembling and Adjustment20
- Determining Whether the Laser Pick-Up Is Defective20
Service Mode21
- How to Input21
- Version Display Mode21
- VFD Checking Mode21
- Cold Start Mode (Initialization)22
- CD Test Mode22
- CD Heat Run Mode26
- Error Display27
- Accumulated Laser on Time Display Mode28
Version Upgrade Procedure of Firmware29
- About Replace the Microprocessor Witha New One29
- Update Mode29
Trouble Shooting45
- VFD Dosen't Light45
- No Sound, Noise Generated46
Measuring Method and Waveforms50
- Mcu CD Pcb : Test Point50
- Input Pcb : Test Point51
- Waveforms52
Block Diagram55
Current Block DIAGRAM56
Level Diagram57
Wiring Diagram58
Printed Wiring Boards59
- Amp59
- Power59
- Front60
- Speaker60
- Connector61
- Conneter61
- Mcu62
- Digital Input63
- DC-DC63
- Regulator63
- Dab63
Schematic Diagrams (1/3)64
- Mcu&CD64
- Digital Input65
- Power & Amp66
Exploded View67
Exploded View of CD Mechanism Unit68
Parts List of Exploded View69
Parts List of CD Mechanism Unit69
Packing View70
Parts List of Packing & Accessories70
Semiconductors71
- IC's71
- Fl Display90
Parts List of Pcb Unit93

Other manuals for Denon RCD-M39

Owner's Manual63 pages

Getting Started9 pages

Getting Started Guide9 pages
