53

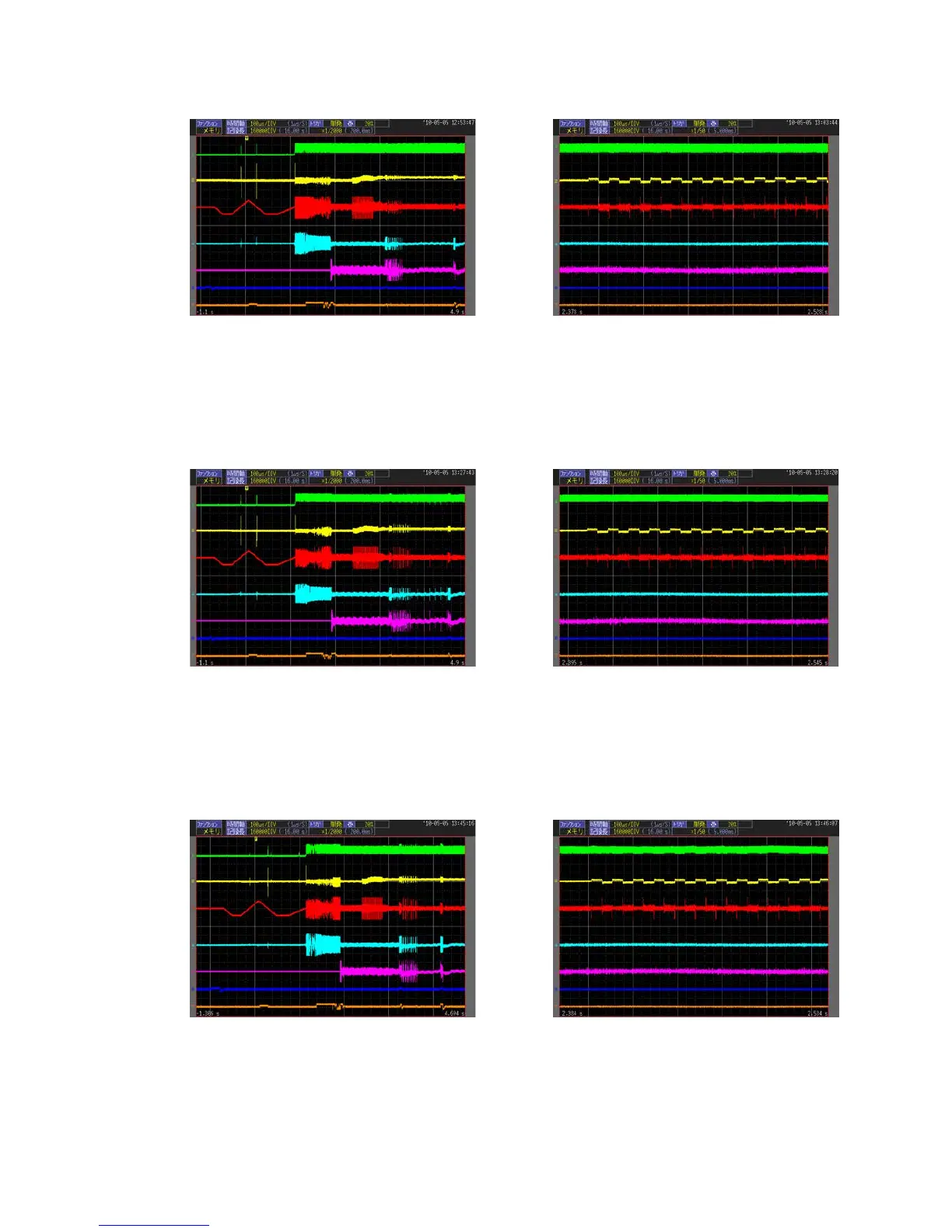

3. TOC READ
4. FOCUS
ADJUSTMENT
3.1 CD(TCD784) READ
1V/div
500mV/div
1V/div
1V/div
1V/div
500mV/div
1V/div
1V/div
500mV/div
1V/div
1V/div
1V/div
500mV/div
1V/div
1V/div
500mV/div
1V/div
1V/div
1V/div
500mV/div
1V/div
3.3 CD-RW (TCDW082W) READ
3.2 CD-R (TCDR082W) READ
4.1 CD(TCD784) FOCUS ADJUSTMENT
4.3 CD-RW (TCDW082W) FOCUS ADJUSTMENT
4.2 CD-R (TCDR082W) FOCUS ADJUSTMENT
w
RFO
e
FEI
r
FOO
t
TEI
y
TRO
u
FMO
i
DMO
w
RFO
e
FEI
r
FOO
t
TEI
y
TRO
u
FMO
i
DMO
w
RFO
e
FEI
r
FOO
t
TEI
y
TRO
u
FMO
i
DMO
52
54
Table of Contents
Default Chapter
2
Table of Contents
2
About this Manual
3
What You Can Do with this Manual
3
Using Adobe Reader (Windows Version)
4
Safety Precautions
6
Note for Schematic Diagram
7
Specifications
9
Caution in Servicing
10
Initializing STEREO CD RECEIVER
10
Support for Asia-Pacific Tropical Climate Regions
10
Disassembly
11
About the Photos Used for "Descriptions in the DISASSEMBLY" Section
12
Loader Panel Assy
12
Front Panel Assy
13
CD Mecha
14
Heat Sink Sub Assy
15
Rear Panel Assy
17
Power Unit Assy
19
Mcu Pcb Unit Assy
19
Trans
19
Note Handling and Replacement of the Laser Pick-Up
20
Protection of the LD
20
Precautions When Handling the Laser CD Mechanism
20
Cautions on Assembling and Adjustment
20
Determining Whether the Laser Pick-Up Is Defective
20
Service Mode
21
How to Input
21
Version Display Mode
21
VFD Checking Mode
21
Cold Start Mode (Initialization)
22
CD Test Mode
22
CD Heat Run Mode
26
Error Display
27
Accumulated Laser on Time Display Mode
28
Version Upgrade Procedure of Firmware
29
About Replace the Microprocessor Witha New One
29
Update Mode
29
Trouble Shooting
45
VFD Dosen't Light
45
No Sound, Noise Generated
46
Measuring Method and Waveforms
50
Mcu CD Pcb : Test Point
50
Input Pcb : Test Point
51
Waveforms
52
Block Diagram
55
Current Block DIAGRAM
56
Level Diagram
57
Wiring Diagram
58
Printed Wiring Boards
59
Amp
59
Power
59
Front
60
Speaker
60
Connector
61
Conneter
61
Mcu
62
Digital Input
63
DC-DC
63
Regulator
63
Dab
63
Schematic Diagrams (1/3)
64
Mcu&CD
64
Digital Input
65
Power & Amp
66
Exploded View
67
Exploded View of CD Mechanism Unit
68
Parts List of Exploded View
69
Parts List of CD Mechanism Unit
69
Packing View
70
Parts List of Packing & Accessories
70
Semiconductors
71
IC's
71
Fl Display
90
Parts List of Pcb Unit
93
