DentalEZ aXcs Series - Section V Operation; Delivery System; Handpiece

aXcs
®
Wall/Cabinet Unit
18 Installation, Operation and Care Manual
check the filter for cleaning or replacement by
lifting the delivery head cover and removing the
screws that secure the filter cover.
Delivery Head Positioning
The horizontal and vertical location of delivery head
can be varied by doing the following:
 To vary the horizontal location, push or pull the
instrument hanger bar handle.
 To raise the delivery head, lift up the instrument
hangar bar handle.

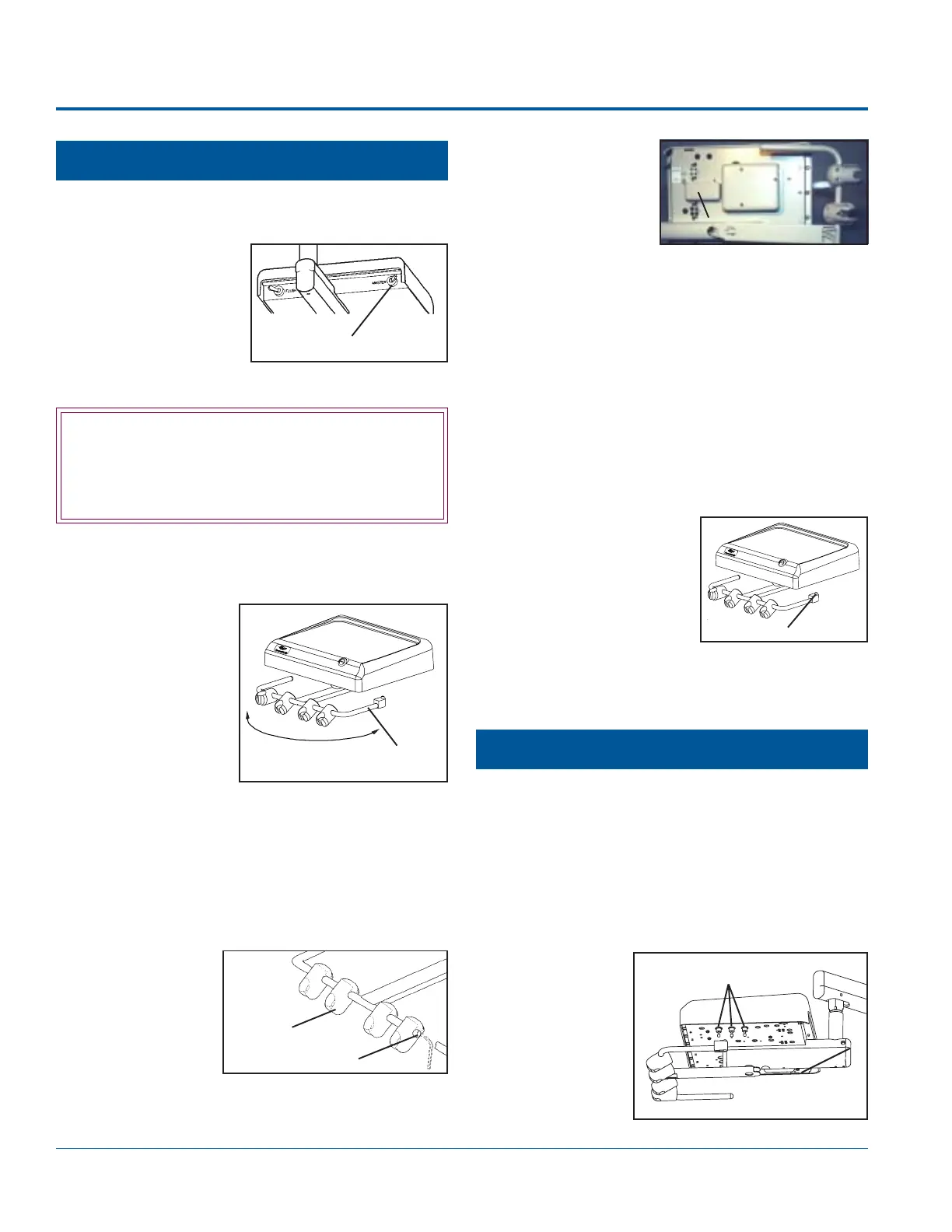

Section V Operation
Master Switch Controls
Delivery System
Master ON/OFF Switch
Set Screw
Handpiece
Holder
Instrument
Hanger
Rotate
The master toggle switch,
located in the rear of the
delivery unit, controls the
ON/OFF function of
air, water and electricity
to the entire unit.
 An oil collector/
filter is designed to
collect oil from the
handpiece exhaust
air. Periodically
Oil Collector/
Filter
 The handpiece
holder angle can
be adjusted by
using an Allen
wrench to loosen
two set screws
Brake Release Button
 To lower the delivery
head, depress the brake
release button, lift
slightly on the handle
and push the head down
Flip the toggle switch to the right to turn ON the unit.
 The entire instru-
ment hanger bar
can be moved to
the left or right to
provide easy access
to the optional tray
on top of the
delivery head.
Grasp the delivery head with one hand; with the
other hand, grasp the instrument hanger bar
handle and move it to the left or right.
 An automatic CUT OFF, can be demonstrated
by placing tubing in the hanger and disabling
operation for that position.
and rotating the holder to the desired angle; then
re-tightening the screws.
Handpiece
Coolant Water Spray
Coolant water spray to all the handpieces can be
turned ON or OFF using the toggle switch located
on the foot control.
1. The coolant spray volume is individually
adjustable for each handpiece by using the
using the handle. Release the button when the
delivery head is in the desired position.
Water Coolant Valves
water
coolant
valves
located on
the bottom
of the
delivery
head.
— CAUTION —
VERY IMPORTANT: At the end of each work
day and anytime the unit is unattended, make sure
the master control switch is in the OFF position.
Swing-Away Instrument Hanger
This features design allows the following functions:
