aXcs
®
Wall/Cabinet Unit
4 Installation, Operation and Care Manual
SHIPPING CONFIGURATION
Packaging
The aXcs DWM/DCM components are packaged and
shipped according to the shipping configuration on
this page.
NOTE: Be aware that some cartons are shipped as
fillers and may be empty (even if optional components
are ordered).
Please verify the aXcs DWM/DCM components
packaging contents against the packing list.
All parts supplied are necessary for proper installa-
tion, so be sure not to discard any hardware or com-
ponents until installation is complete.
DWM Carton Contents:
Accessory/Options:
- Handpiece and Syringe tubings
- Tray/Tray Pad
- Adjustment Tools
- Fiber Optic Control Module (Optional)
Utility Service Center (USC)
USC cover
USC base (floor plate)
Delivery Head/Arm Assembly
DCM Carton Contents:
Accessory/Options:
- Handpiece and Syringe tubings
- Tray/Tray Pad
- Adjustment Tools
- Fiber Optic Control Module (Optional)
— NOTICE —
For any questions about an order, please
contact a DentalEZ Equipment customer
service representative at 1-866-DTE-INFO.
Standard Features
Doctor's Controls
Three handpiece positions
Individual handpiece drive air adjustment
Individual handpiece coolant water adjustment
using sterilizable keys
Non-retraction coolant water
Handpiece flush system
Master on/off switch
Handpiece & syringe hangers individually adjustable
Swing away instrument hangar bar
Quick connect handpiece & syringe tubings-unit end
Three-way syringe
Wet/dry disc type foot control
Counterbalanced flex arm w/positive lock air brake
Handpieces not included
Pre-wired for COLORight
®
, StarBright
®
fiber optics
Standard 115 volt models UL and CSA approved
Stainless steel tray with pad.
Wall or Floor Mounted USC
Manual air and water shut off valves
Air and water filter/regulators with pressure gauges
Air actuated master shut off valves
Section I Introduction

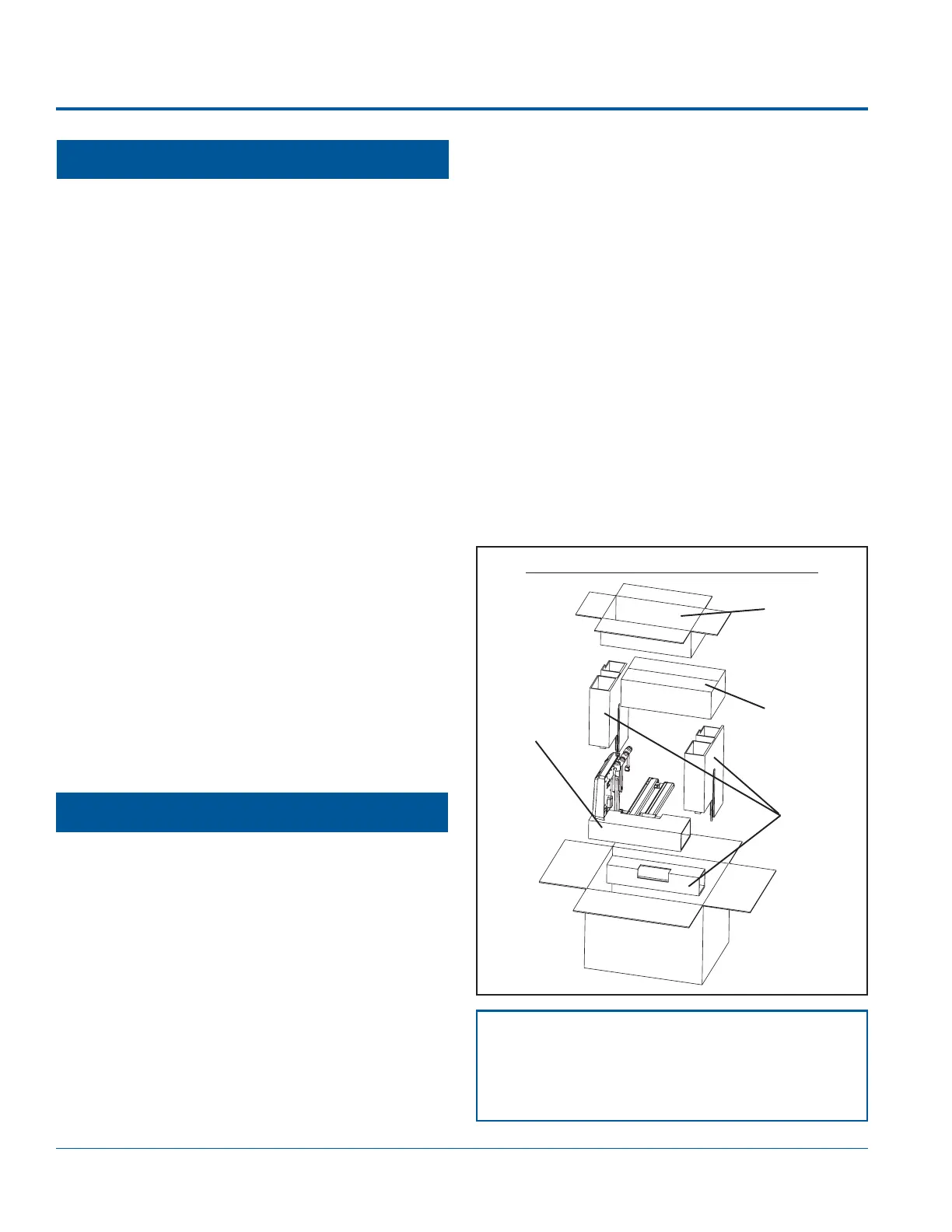

USC Box
(DWM only)
Supply Box
(mount, tubings,
covers, etc.)
Delivery
Head/ Arm
Assembly
Packing
Inserts
To Next Page
