Wall/Cabinet Unit 7
Section II Pre-installation
Electrical Contractor's Procedure
To ensure the most successful operation of the cabinet
mounted unit and provide the dentist with maximum
flexibility and convenience, consider the unit's dimen-
sions and use the DCM rotation/reach diagram below
as a guide to select the best mounting location that will
satisfy the following criteria:
4Easy access to utilities cabinet must be
able to accommodate installation of utilities.
4Adequate mounting support cabinet and
frame must be strong enough to support the
unit head with all accessories when the arms are
fully extended.
NOTE: Additional mounting
support is recommended for cabinets constructed
of particle board or containing thin side walls.
4 Proximity to dental chair provide
convenient access to dentist's work area.
Proceed to Section III, Installation, Cabinet Mounted
Unit, Page 11.
115 VAC
Receptacle
— NOTICE —
Electrical contractor's parts are not supplied.
The electrical contractor is to provide a covered 115
VAC receptacle which meets all applicable utility codes
and regulations.
Cabinet Mounted Unit

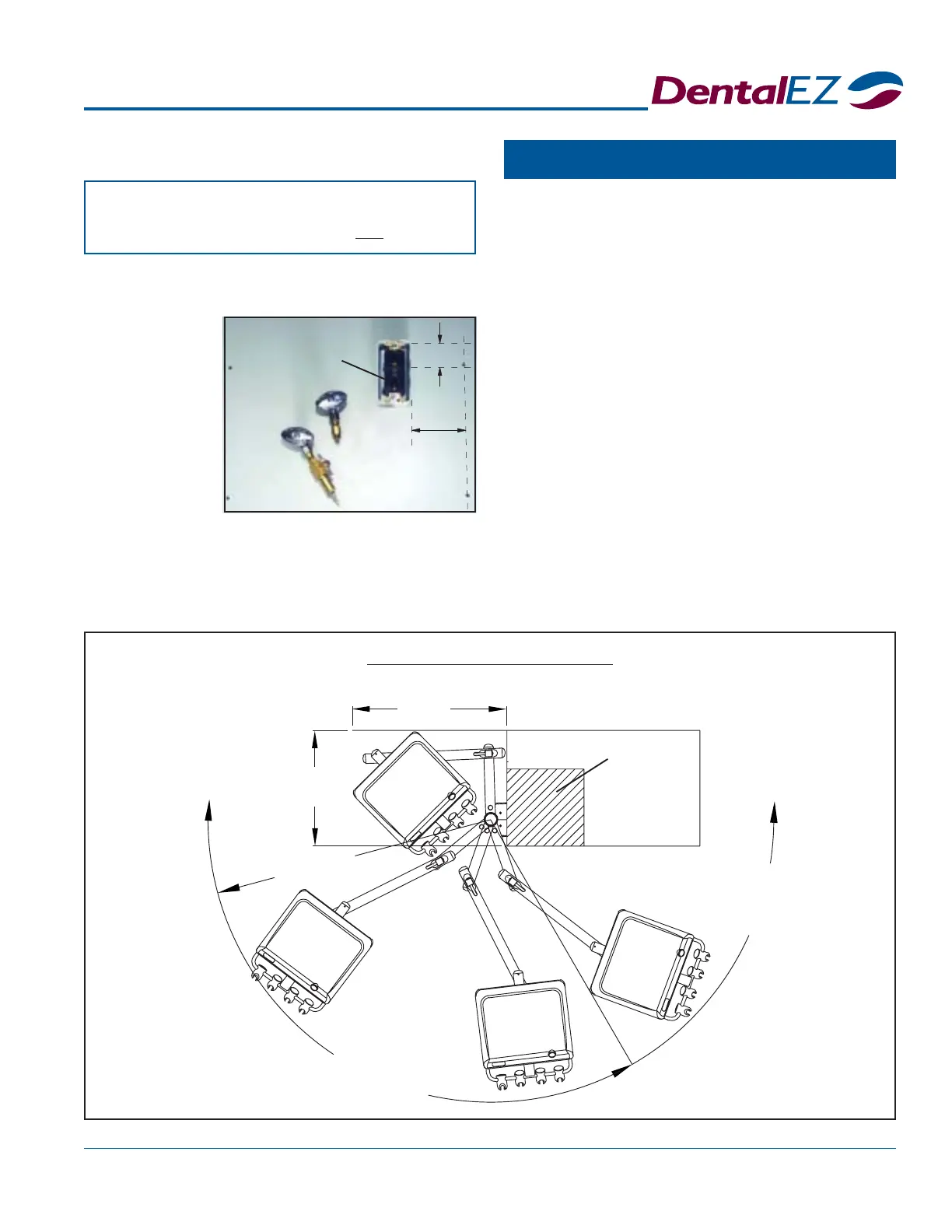

DCM ROTATION/REACH
NOTE: Minimum space
required for recessed storage:
18" deep, 24" wide.
24" min.
18"
min.
44" Reach
120
°
Rotation
(Full Reach)
60
°
Rotation
(Limited
Reach)
Wall
Cabinet
Space for
Utility
Connections
For the recom-
mended location
of the 115 VAC
receptacle, see the
full-size, scaled
USC template in
the back of this
manual.
NOTE: If the recommended location is not met, the
USC base may interfere with the 115 VAC receptacle.
Proceed to Section III, Installation, Wall Mounted
Unit, Page 8.
3-1/2"
1-1/8"
