DentalEZ aXcs Series - Section III Installation; Wall Mounted Unit

aXcs
®
Wall/Cabinet Unit
8 Installation, Operation and Care Manual
Section III Installation
NOTE: Once the location of the unit has been
established, carefully perform the following wall mount
or cabinet mount installation procedures:
DRY WALL  Attach the bracket to the wall
or optional mounting panel using four 1/4-20
cap screws, lock washers and T-nuts. (Do not
tighten until leveling procedure is complete.)
NOTE: The optional 18" x 18" laminated
mounting panel is recommended for all
sheetrock applictions. If using the optional
mounting panel, secure it to the wall using four
#10 x 2-1/2" wood screws (two in each stud).
CONCRETE BLOCK  Secure the
mounting bracket to the wall using four toggle
bolts (not supplied). (Do not tighten until
the following leveling procedure is complete.)
— IMPORTANT NOTE —
To ensure proper delivery head operation,
precise leveling of the pivot cylinder is necessary.

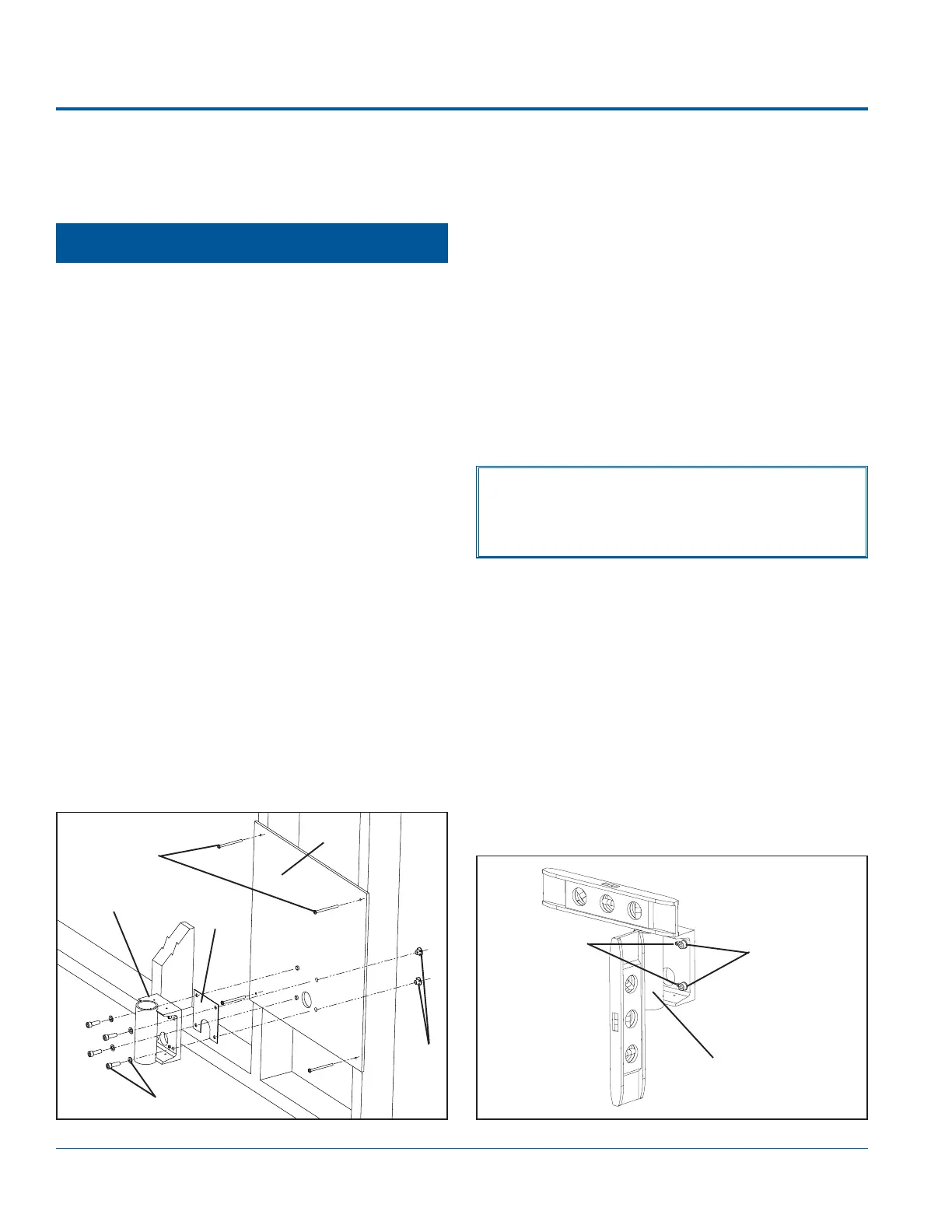

Mounting Panel
Mounting
Bracket
Leveling
Plate
2-1/2" Wood
Screws
T-Nuts
Cap Screws & Washers
Set Screws
Pivot Cylinder
Wall Mounted Unit
Installation Tools Required:
 Torpedo level
 Drill
 Set of Allen wrenches
- 1/16" hex tool
- 5/64" hex tool
- 1/8" hex tool
 Small-slotted screwdriver
Mounting Bracket
1. Using a 5/64" hex tool, remove the four #6-32
button-head screws from the mounting bracket
assembly and take off both bracket covers.
2. Using the template in the back of this manual
and placing it at the specified height, mark
and drill four 5/16" holes for the T-nuts.
3. Secure the mounting bracket to the wall using
the appropriate hardware needed for the
specific wall material.
NOTE: Remember to insert the leveling plate
between the bracket and wall (or mounting panel).
Leveling Procedure
1. Place a level both horizontally and vertically on
the pivot cylinder of the mounting bracket.
2. To plumb with the wall (front to back), adjust
the four set screws on the mounting bracket
using a 1/8" hex tool.
3. To plumb side to side, rotate the bracket while
adjusting the set screws.
4. Tighten all four cap screws when the pivot
cylinder is level.
Cap Screws
