DentalEZ aXcs Series - Cabinet Mounted Unit

aXcs
®
Wall/Cabinet Unit 11

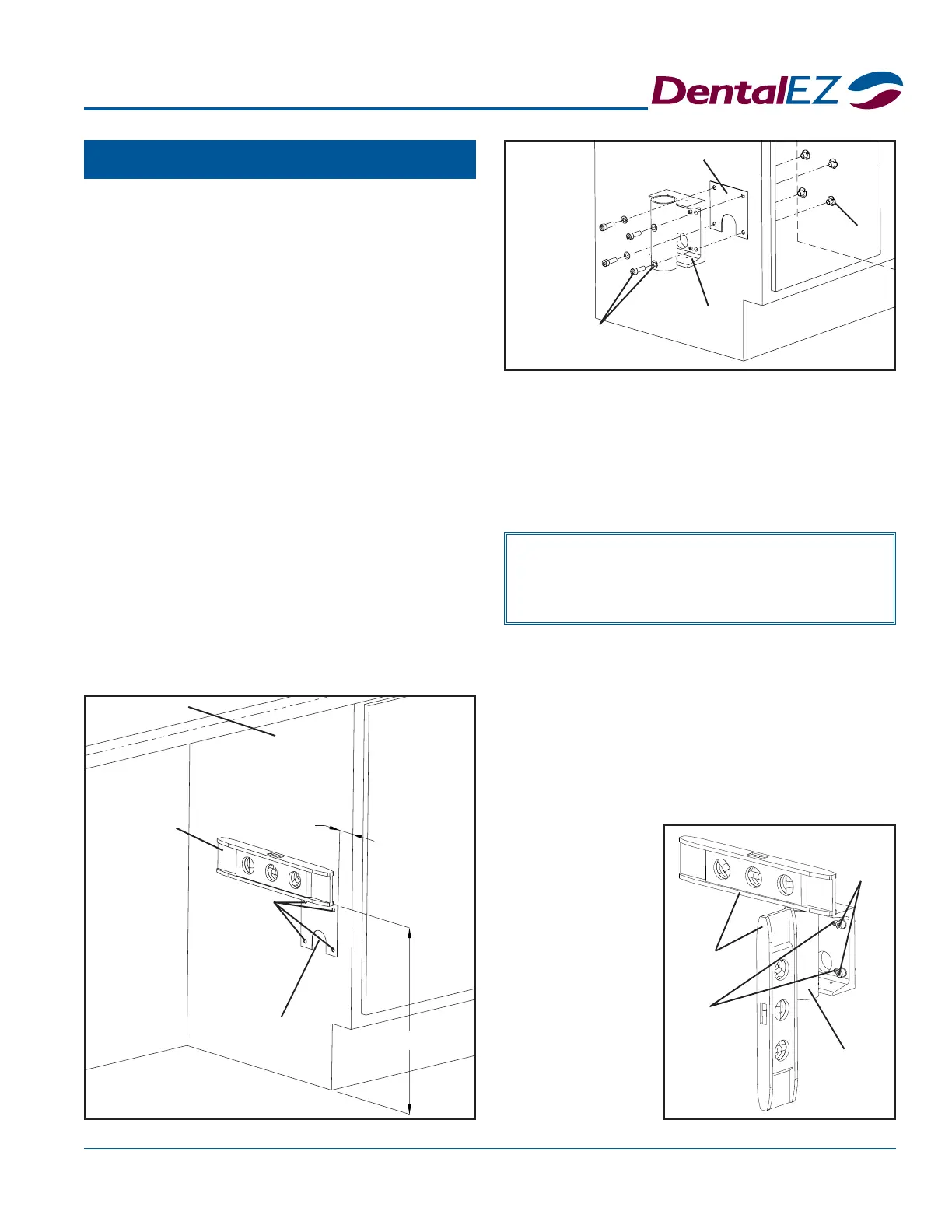

Section III Installation
4. Place the leveling plate between the mounting
bracket and the cabinet.
5. Secure the mounting bracket to the cabinet
using four 1/4-20 cap screws, lock washers and
T-nuts. Do not tighten screws at this time.
Cabinet Mounted Unit
Installation Tools Required:
 Torpedo level
 Drill
 Set of Allen wrenches
- 5/64" hex tool
- 1/8" hex tool
 Small-slotted screwdriver
Mounting Bracket
1. Using a 5/64" hex tool, remove the four #6-32
button-head screws from the mounting bracket
assembly and take off both bracket covers.
2. Using the template in the back of this manual,
place the leveling plate at the specified location
(14" from the top of the leveling plate to the
finished floor with a minimum distance of
1-1/2" from the front edge of the cabinet).
3. Level the leveling plate then mark and drill
four 5/16" holes for the T-nuts and one
1-1/4" hole for tubings.
Cap
Screws
(4)
Pivot
Cylinder
— IMPORTANT NOTE —
To ensure proper delivery head operation,
precise leveling of the pivot cylinder is necessary.
Leveling Procedure
1. Place a level both horizontally and vertically on
the pivot cylinder of the mounting bracket.
2. To plumb with the wall (front to back), adjust
the four set screws on the mounting bracket
using a 1/8" hex tool.
3. To plumb
side to side,
rotate the
bracket
while
adjusting the
set screws.
4. Tighten all
four cap
screws when
the pivot
cylinder is
level.
Level
Plate
5/16" Holes
(4)
(Distance from
Edge of Cabinet
to Edge of
Leveling Plate)
1-1/4" Hole
(1)
(Distance
from Floor
to Top of
Leveling
Plate)
Counter
To p
1-1/2"
14"
T-nuts
(4)
Leveling Plate
1/4-20 Cap
Screws (4)
and Lock
Washers (4)
Mounting
Bracket
Level
Cylinder
Set
Screws
(4)
