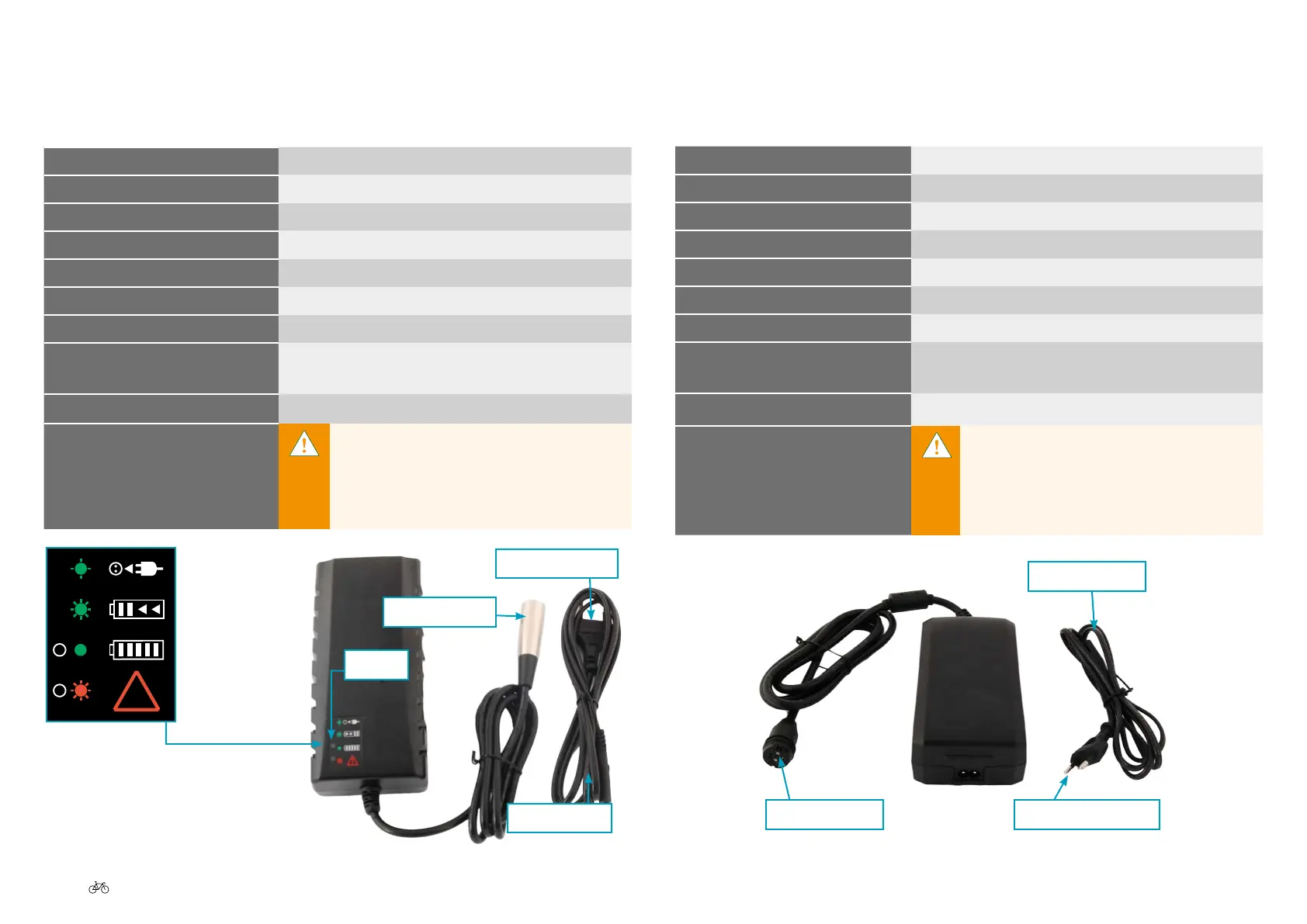

Charger type 2 for seat tube battery (Comfort/Compact)
Battery voltage
36 V
AC input voltage
230 V
Frequency
50 Hz
Max. DC output voltage
42 V
Max. charge current
3 A
Dimensions ( L I W I H)
171 mm I 77 mm I 40 mm
Operating temperature
-10°C to +40°C
Recommended storage tem-
perature
0 to 20°C
Weight
552 g
Protection class
The charger and the charging station is only
intended for interior use. Keep the charger
away from rain and moisture. If water gets
into the charger there is a risk of electric
shock.
LEDs
Power cable
Charging cable
Mains connector
!
Charger connected to
power supply
|thegreenLEDashes
Battery being charged
|thegreenLEDashes
Fully charged
| the green LED continually ON
Charging fault
|theredLEDashes
Description
of charging
indicator
Charger type 3 for down tube battery
Battery voltage
36 V
AC input voltage
230 – 240 V
Frequency
50 – 60 Hz
Max. DC output voltage
42 V
Max. charge current
4 A
Dimensions ( L I W I H)
171 mm I 78 mm I 42 mm
Operating temperature
-10°C to +40°C
Recommended storage tem-
perature
0 to 20°C
Weight
520 g
Protection class
The charger is only intended to be used
indoors. Keep the charger away from rain and
moisture. If water gets into the charger there
is a risk of electric shock.
Mains connector
Power cable
Charging cable
