7.1 7 95-8242
CERTIFICATIONS—
FMR: SeeAppendixAfordetails.
CSA: Explosion-proof for Class I, Division 1,
Groups C and D.
Dust ignition-proof for Class II, Division 1,
GroupsE,F,andG.
Enclosure Type 4 (Indoor and Outdoor
Use)
CSFM: Explosion-proofforClassI,Division1,
Groups B, C and D.
Dust ignition-proof for Class II, Division 1,
GroupsE,F,andG.
CENELEC: EExdIIB+H2T6(Tamb=–40°Cto+77°C)
EExdIIB+H2T4(Tamb=–40°Cto+125°C)
IP66
Special Conditions for Safe Use “X”:
The fused silica window is liable to be
damaged by impact. The detector should
be installed in such a manner as to prevent
the window from receiving mechanical
damage.
Russian PerformanceVeriedfrom–55°Cto+75°C
Certication: 1ExdIIBT6X(Tamb=–40°Cto+77°C)
1ExdIIBT4/H2X(Tamb=–40°Cto+125°C)
IP66
(A)
(B)
(C)
1.48 (37.59)
(D)
B1475
ALL CONTROLLER CAGES REQUIRE
A MINIMUM OF 10.12 INCHES (257.1 MM)
DEPTH CLEARANCE

(E)
RACK PA RT NUMBER CONTROLLER
TYPE 005269-XXX POSITIONS FOR: HT:DIM. (A) DIM. (B)DIM. (C)DIM. (D) DIM. (E)WEIGHT
FIRE GAS INCH MM INCH MM INCH MM INCH MM INCH MM LB KG
4U –001 8164U 19.00 482.6 18.30 464.8 17.36 440.9 4.00 101.6 6.97 177.1 9.3 4.2
4U –002 6124U 15.06 382.6 14.36 364.7 13.42 340.9 7.6 3.5
4U –003 484U 11.13 282.6 10.43 264.9 9.49 241.1 5.9 2.7
4U –004 364U 9.16 232.7 8.46 214.9 7.52 191.0 5.1 2.3
4U –005 244U 7.19 182.7 6.49 164.9 5.55 141.0 4.2 1.9
4U –006 124U 5.22 132.6 4.52 114.8 3.58 90.9 3.1 1.4
3U –007 16 3U 19.00 482.6 18.30 464.8 17.36 440.9 2.25 57.15 5.22 132.6 9.3 4.2
3U –008 12 3U 15.06 382.6 14.36 364.7 13.42 340.9 7.6 3.5
3U –008 83U 11.13 282.6 10.43 264.9 9.49 241.1 5.9 2.7
3U –010 63U 9.16 232.7 8.46 214.9 7.52 191.0 5.1 2.3
3U –011 43U 7.19 182.7 6.49 164.9 5.55 141.0 4.2 1.9
3U –012 23U 5.22 132.6 4.52 114.8 3.58 90.9 3.1 1.4

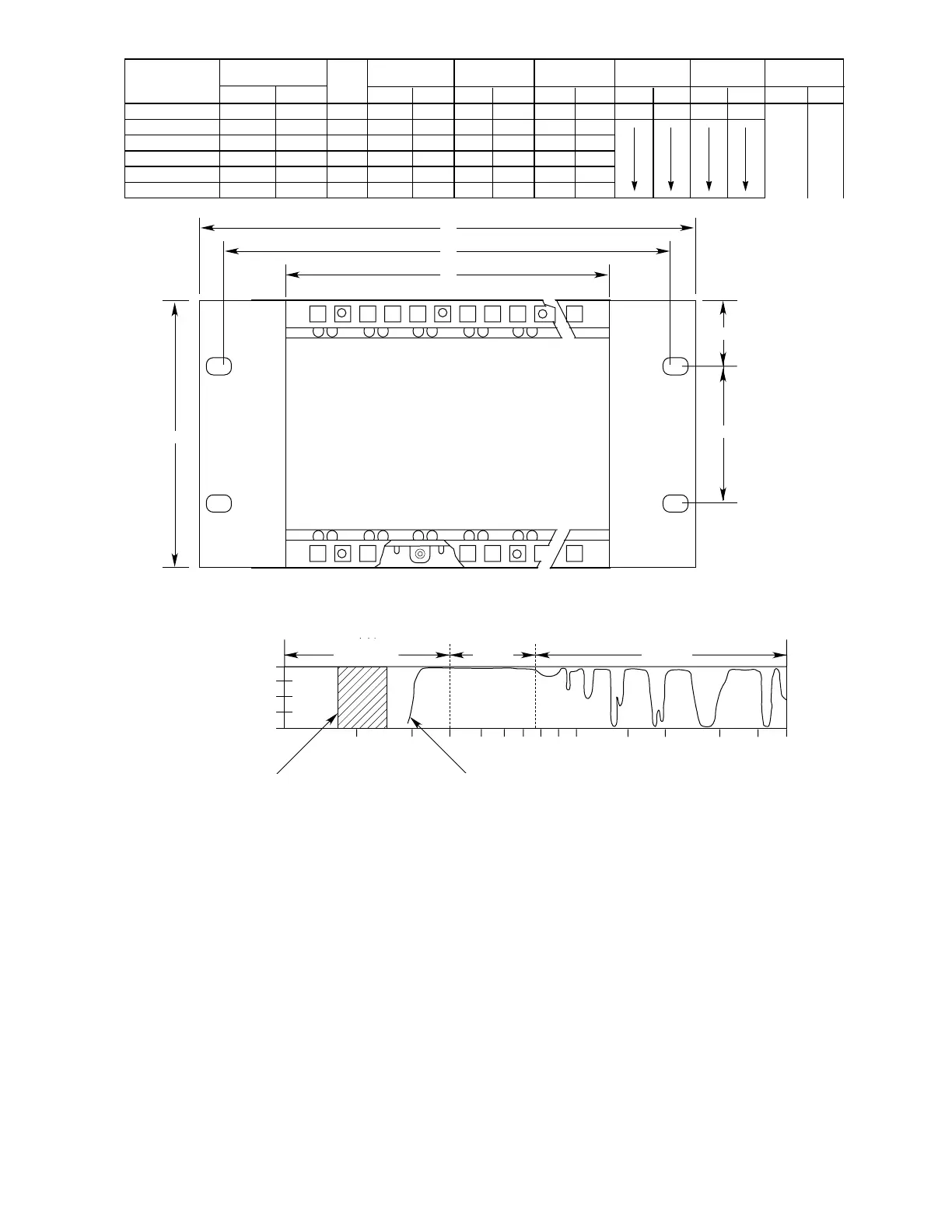

Figure 5—Q4004 Mounting Cage Dimensions in Inches (Millimeters)
5.04.03.02.01.51.00.90.80.70.60.50.40.30.20.1
ATMOSPHERIC
TRANSMISSION
WAVELENGTH (MICRONS)
SOLAR RADIATION REACHING THE EARTH
VISIBLE INFRARED
ULTRAVIOLET SENSOR RESPONSE
ULTRAVIOLET
100
75
50
25
0
A1898
Figure 6—Detector Range of Sensitivity
