95-876812.1
IMPORTANT
Be sure to read and understand the entire
instruction manual before installing or
operating the ame detection system. Any
deviation from the recommendations in this
manual may impair system performance
and compromise safety.
ATTENTION
The X3302 includes the Automatic
o
i
®
(Optical Integrity) feature — a calibrated
performance test that is automatically
performed once per minute to verify
complete detector operation capabilities.
Testing with an external test lamp is not
approved or required.
DESCRIPTION

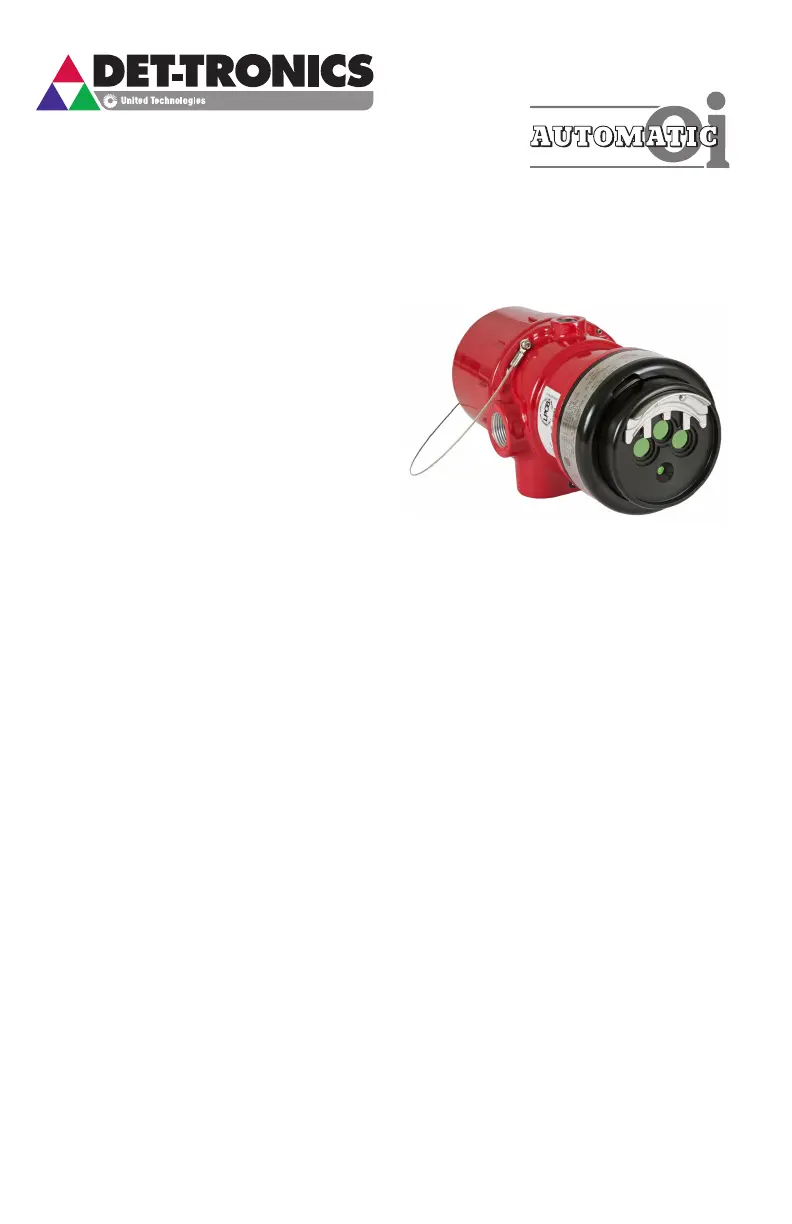

The X3302 brings state-of-the-art IR flame
detection to the difficult task of detecting invisible
hydrogen flames. Focusing on the water-band
IR emissions of hydrogen and hydrocarbon
flames, the X3302 overcomes the limited
detection range and false alarm tendencies of
other flame detectors by employing field proven
multispectrum infrared (MIR) technology. The
result is unsurpassed flame sensitivity with
discrimination of non-flame sources in situations
where traditional flame detectors are unsuitable.
Utilizing the X3301’s multi-patented signal
processing algorithms, the X3302 provides a
breakthrough in flame detection/surveillance of
hazardous materials that produce mostly water
vapor, and little or no Carbon Dioxide (CO
2
) in
the combustion process. The detection capability
of the X3302 is double that of traditional UV and
UVIR detectors. At the same time, it attains solar
resistance and insensitivity to artificial lights,
lightning, and “blackbody” radiation, which still
plague other detection technologies.
The detector has Division and Zone explosion-
proof ratings and is suitable for use in indoor and
outdoor applications.
The standard output configuration includes fire,
fault and auxiliary relays. Output options include:
– 0–20 mA output (in addition to the three relays)
– Pulse output for compatibility with existing
Detector Electronics Corporation (Det-Tronics)
controller based systems (with fire and fault
relays)
– Eagle Quantum Premier
®
(EQP) compatible
model (no analog or relay outputs)
– HART communication
A tri-color LED on the detector faceplate indicates
normal condition and notifies personnel of fire
alarm or fault conditions.
Microprocessor controlled heated optics increase
resistance to moisture and ice.
The X3302 housing is available in copper-free
aluminum or stainless steel, with Type 4X and
IP66/IP67 rating.
INSTRUCTIONS
Multispectrum IR Flame Detector
X3302
©Detector Electronics Corporation 2019
Last Manual Update: 6/26/19
