Model IR-700
IR-700 Instruction Manual Rev. 4.3 Page 8 of 46
When mounting on a pole, secure the Junction Box to a suitable mounting plate and attach the mounting plate
to the pole using U-Bolts. (Pole-Mounting brackets for Detcon J-Box accessories are available separately.)
Male 3/4" NPT Threads
Sensor Assembly
Splash Guard
2.125"
7.8"
Typ.
Ferrite Cylinder
Sensor Wires
2"
0.3"
5.48"
detcon inc.
LEL
MODEL
IR-700

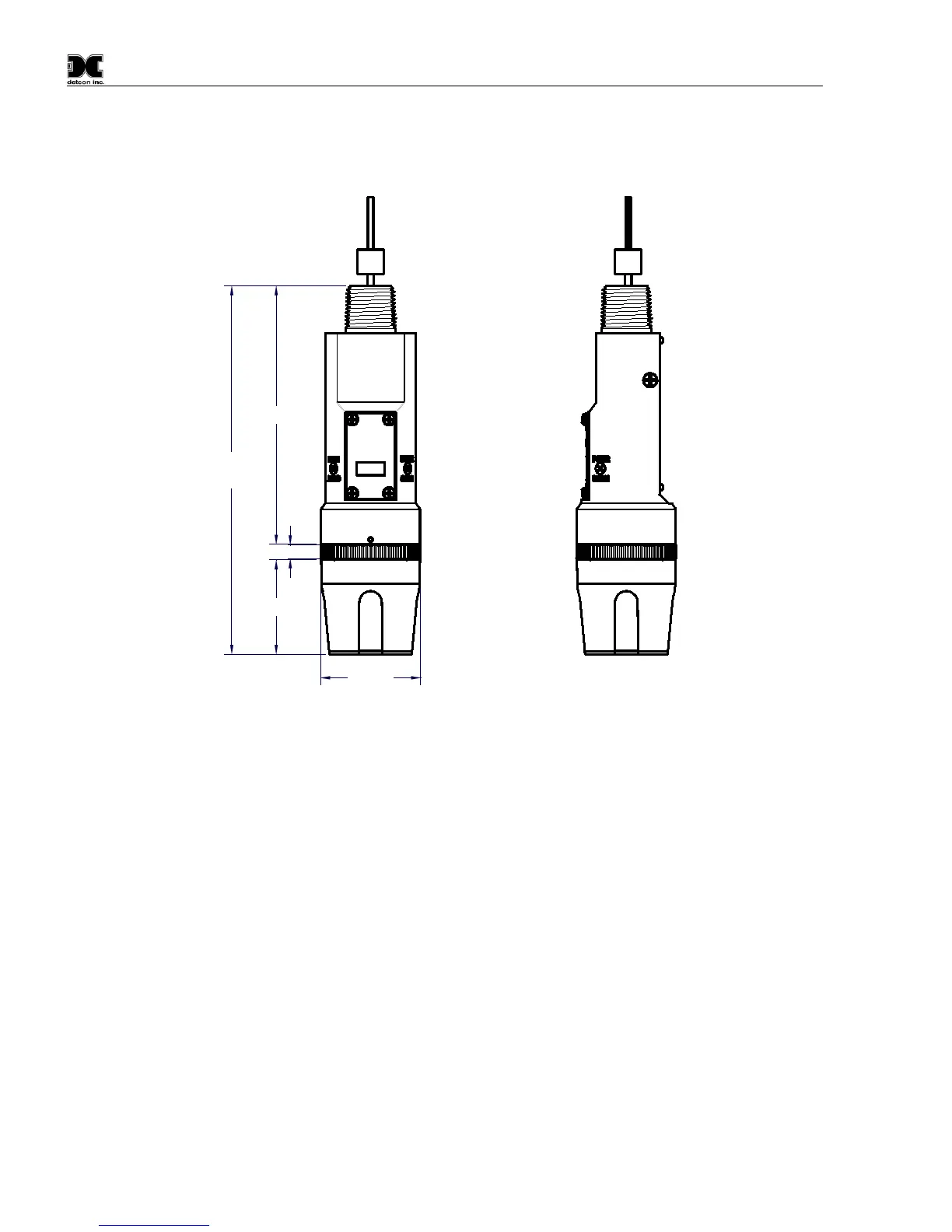

Figure 9 Outline and Mounting Dimensions (Sensor Assembly only)
