4. Installation Steps

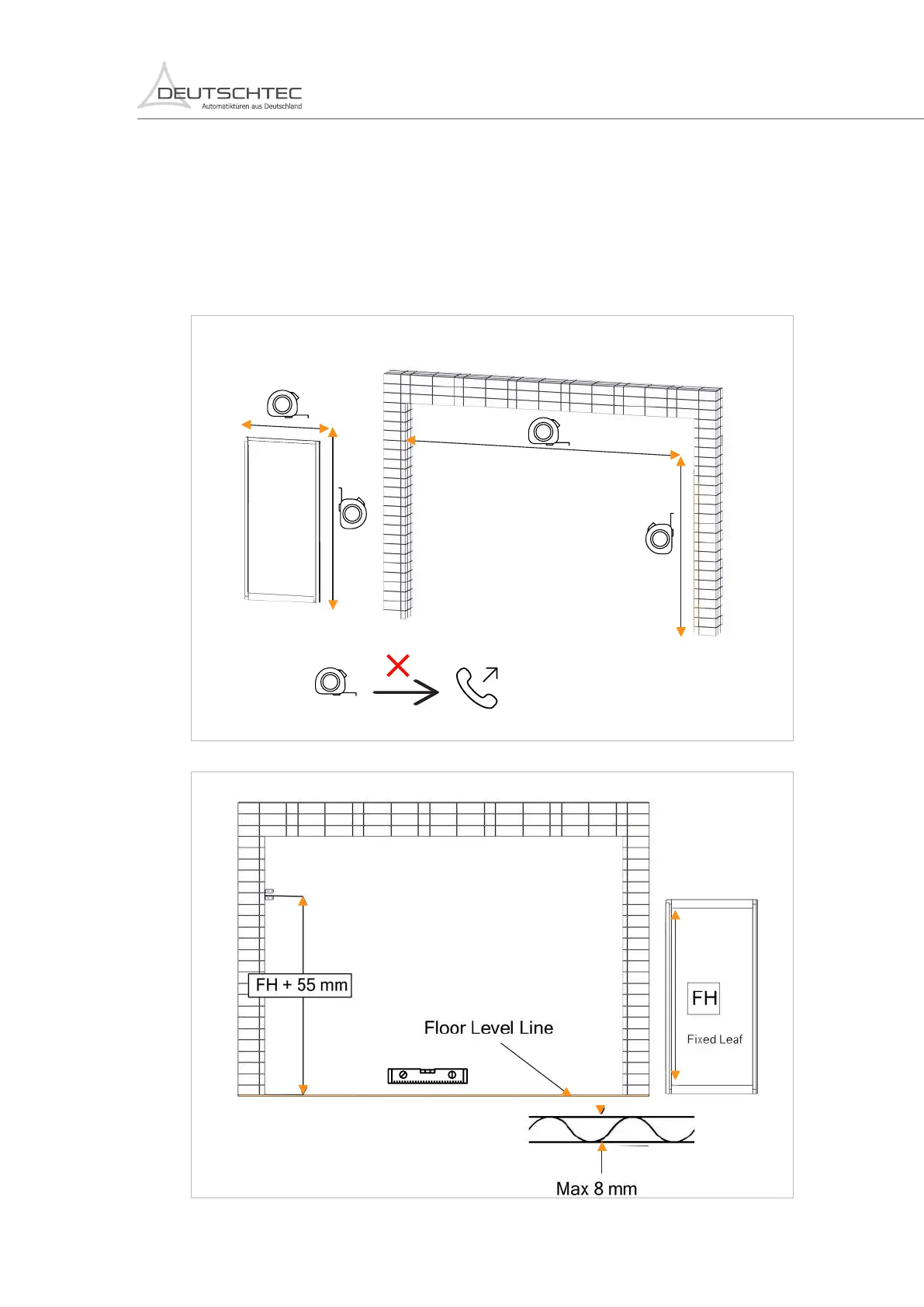

4.1 Check leaves & opening dimensions:

Note : This installation manual is based on combination of PrimeDrive-series ‘ operator

with back profile and THB frame.

EN.22.04032019
