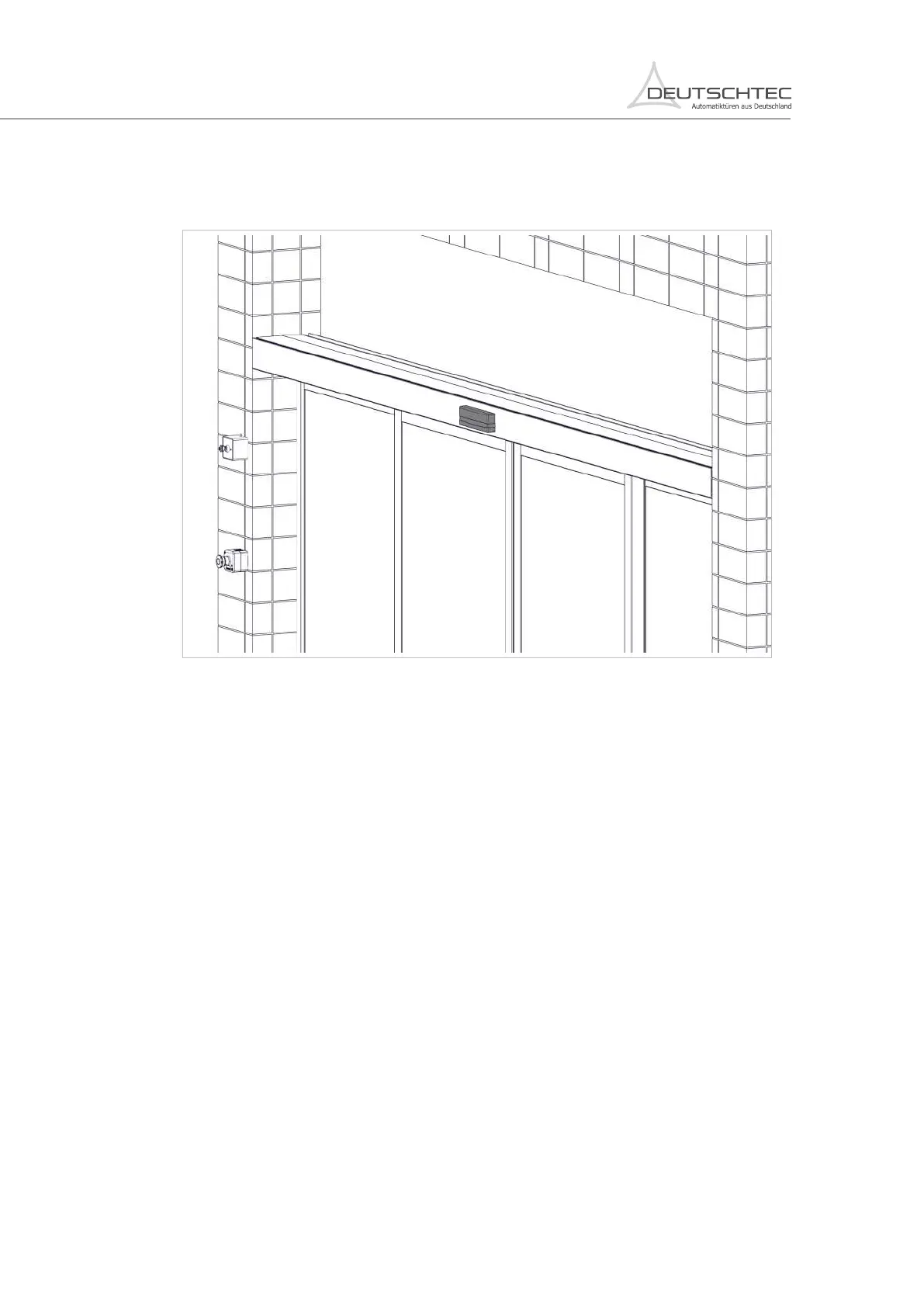

4.38 Install inside sensor:
The door must be operational when it is installed.
The travel way of the door leaf must be free of obstacles.
The battery terminal must not be pinned up.
The power supply should not be connected.
Sensors must not be connected.
The key switch must be set to 'Automatic'.
If a key switch is not available, you must position a bridge between connections
4 & 5. (This switches the system to automatic mode).
If an emergency shutdown switch is available, you do not need to install an additional bridge.
Instead, install a bridge between connections 1 & 2 .
The door must be opened manually to attain the desired opening width.
The SLT potentiometer must be positioned to the right.
Without digital key switch:
5. Starting up the operator
For a newly-installed system, the following conditions should be met prior to the test drive. A maximum of
5 calibration runs – or calibration runs that cover a total of one minute – can be used. After 5 calibration
runs, the door starts up and remains in the open position.
32
EN.22.04032019
