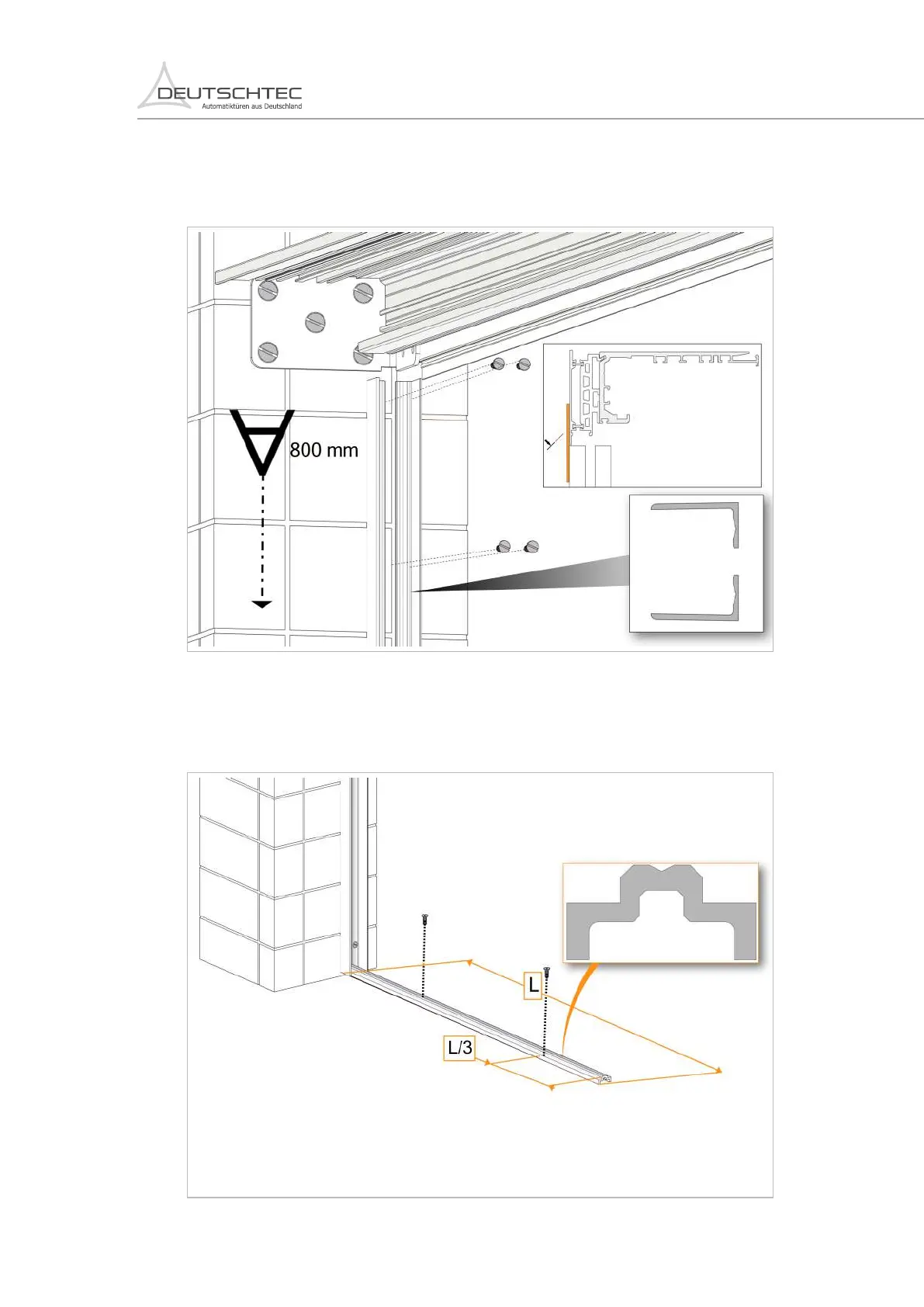

4.18 Install notch on side walls - corridor mounting:

- every 800 mm use a screw

4.19 Install filler for each fixed leaf on floor - corridor mounting:

EN.22.04032019
