International Mode
European Mode
Important:
IR presence sensor, if available, needs to be set to Normally Open mode. System also works without a
presence sensor(no test from control unit).
IR present sensor needs to be equipped with test signal and set to Normally Close NC.
IR Field
1- To run our systems as FRW/ES version, the SLT/Mode needs to be set to EU.
2- The IR present sensor needs to be set to Normally Close (NC). Outside sensor needs to be set to
Normally Open (NO) and the inside sensor needs to be set in Frequency Output (100Hz)

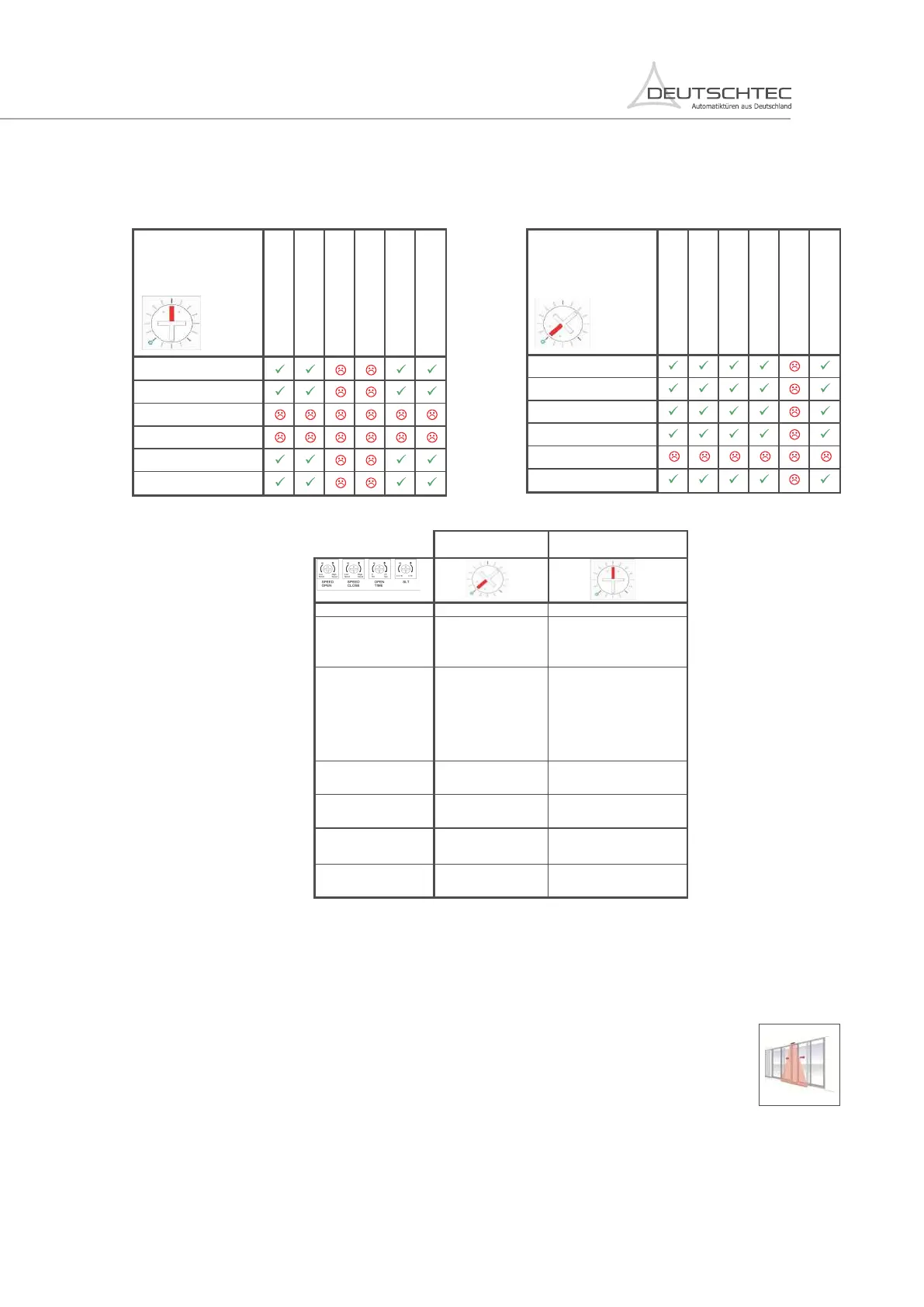

7. Sensors Setup Table
Combination of
sensors in
European mode
BEA IXIO DT3
BEA IXIO DT3
BEA ZEN
BEA IXIO DT1
BEA ZENSAFE
BEA ZEN
BEA VIO DT1
Optex OA Flex
BEA IXIO DT1
BEA ZENSAFE
BEA VIO DT1
Optex OA Flex
Combination of
sensors in
international mode
BEA IXIO DT1
BEA VIO DT1
BEA IXIO DT3
BEA ZEN
BEA ZENSAFE
BEA VIO DT1
Optex OA Flex
BEA IXIO DT3
BEA IXIO DT1
BEA ZEN
BEA ZENSAFE
Optex OA Flex
PRG Mode
Position
Jumper Position
BEA IXIO DT1
BEA IXIO DT3
BEA ZEN
BEA ZENSAFE
BEA VIO DT1
Optex OA Flex
Sensor Used International Mode European Mode
IR: Output: NO
IR: Output: NO
OK
OK
Not Possible
DIP 11: OFF DIP 11: ON
OK
Not Possible
Not Possible
IR: Output: NC
IR: Presense Time
min.30s (EN16005)
IR: Output: NC
IR: Presense Time
min.30s
Radar Output Sensor
Inside: Frequency in
ES/FRW
34
EN.22.04032019
