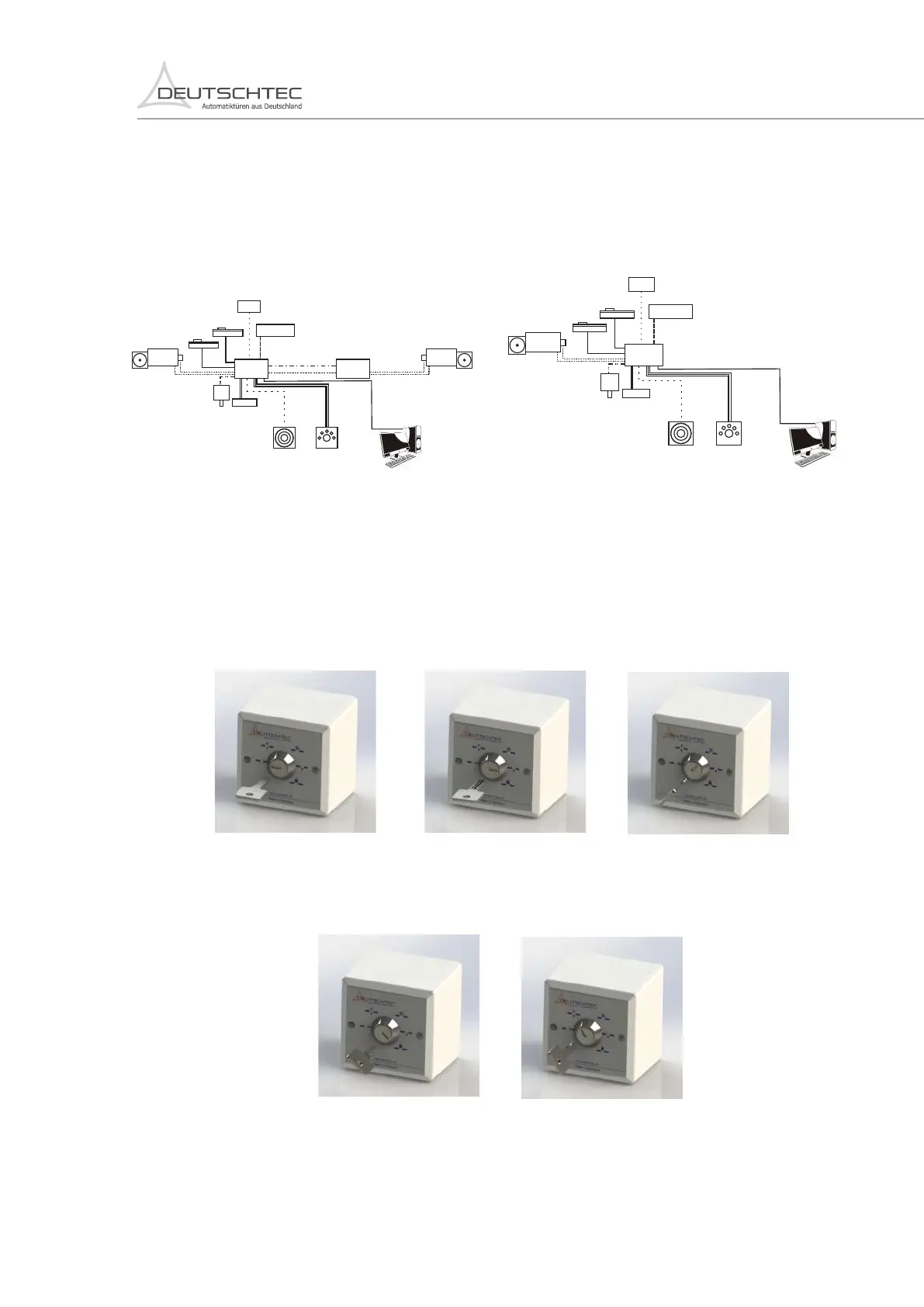

9. Block Diagram
Sensor outside
Sensor inside
Motor
Encoder
Remote control
Control unit
Lock
Battery
Emergency
button
Key switch
Power
supply
230 V AC
Standard-Version
Sensor outside
Sensor inside
Motor
Encoder
Remote control
Control unit
Lock
Battery
Emergency
button
Key switch
Backup
Control unit
Power Supply
Com
Motor
Encoder
Power
supply
230 V AC
Escape-Version
39
The key switch has 5 possible modes:
Full Open
The door leaves are opened
and kept open.
Partial Open
Lock
Automatic
10. Mechanical Key Switch
The door leaves are only
opened when the internal
sensors are activated.
One-way
The opening door leaves
are closed and the lock (if
installed) is activated.
The opening door leaves
are opened and closed
when the sensors are
activated.
The door leaves are opened
to a prespecified width.
