TARGET COUNT

Acquire Target Count

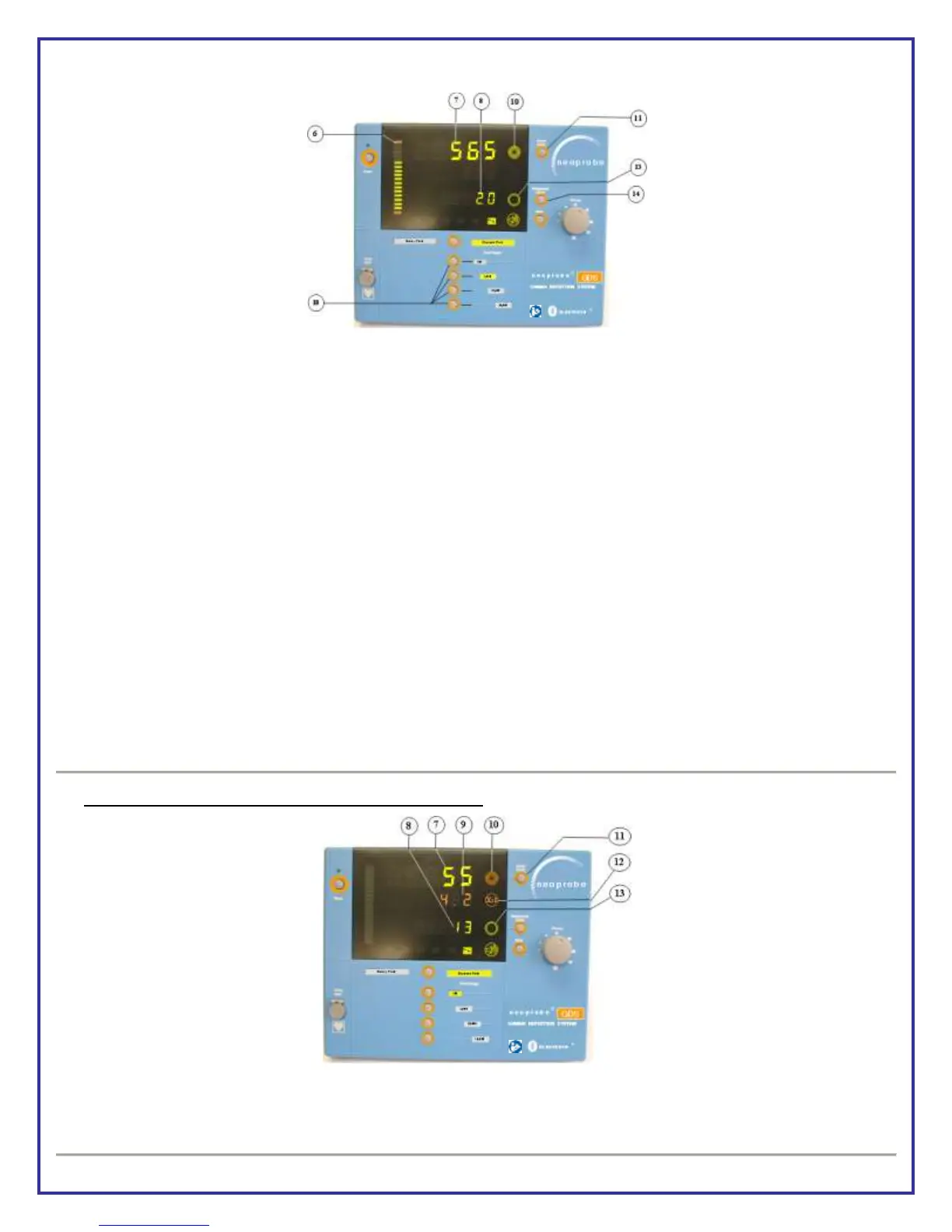

 Hold probe stationary over target area to achieve highest Target Count Readout value [7], highest Count Bar

level, and highest sound.

 Press and release Target Count Button [11]; keep probe steady over target area for 1 to 6 seconds until Count

Bar [6] is full and a double Stop Beep sounds.

Collect Target Count

 Target Count Symbol [10] flashes green.

 Target Count Readout [7] displays dashes.

 Count Bar [6] fills from bottom to top as data is collected.

Target Count Value

 Target Count Readout data [7] is displayed for 5 seconds; Target Count Symbol (10) flashes green.

 Count Bar [6] is off.

 After 5 seconds, double Stop Beep sounds and system returns to Dynamic Pitch Mode, displaying last

calculated Background Count [8] and current Count Rate [7].

Acquiring Target Count Ratio in Dynamic Pitch Mode

TARGET COUNT RATIO
