Acquire a Target Count Ratio

 Hold probe stationary over target area. Press and release Background Count Button [14]. Background Count

must be greater than default value (2%) of Count Range selected in order to activate Ratio Calculation

function.

 Hold probe stationary over target area. Press and release Target Count Button [11] until a beep sounds; hold

probe steady over target area for 1 to 6 seconds until Count Bar [6] is full and a double Stop Beep sounds.

Collect a Target Count

 Target Count Symbol [10] flashes amber.

 Target Count Readout [7] displays dashes.

 Count Bar [6] fills from bottom to top as data is collected.

Target Count Value

 Target Count Readout data [7] and Ratio Readout [9] are displayed for 5 seconds; Target Count Symbol [10]

flashes amber.

 Amber Ratio Symbol [12] displayed below Target Count Symbol [10].

 Count Bar [6] off.

 After 5 seconds, a double Stop Beep sounds and system returns to Dynamic Pitch Mode displaying last

calculated Background Count [8] and current Target Count [7] data.

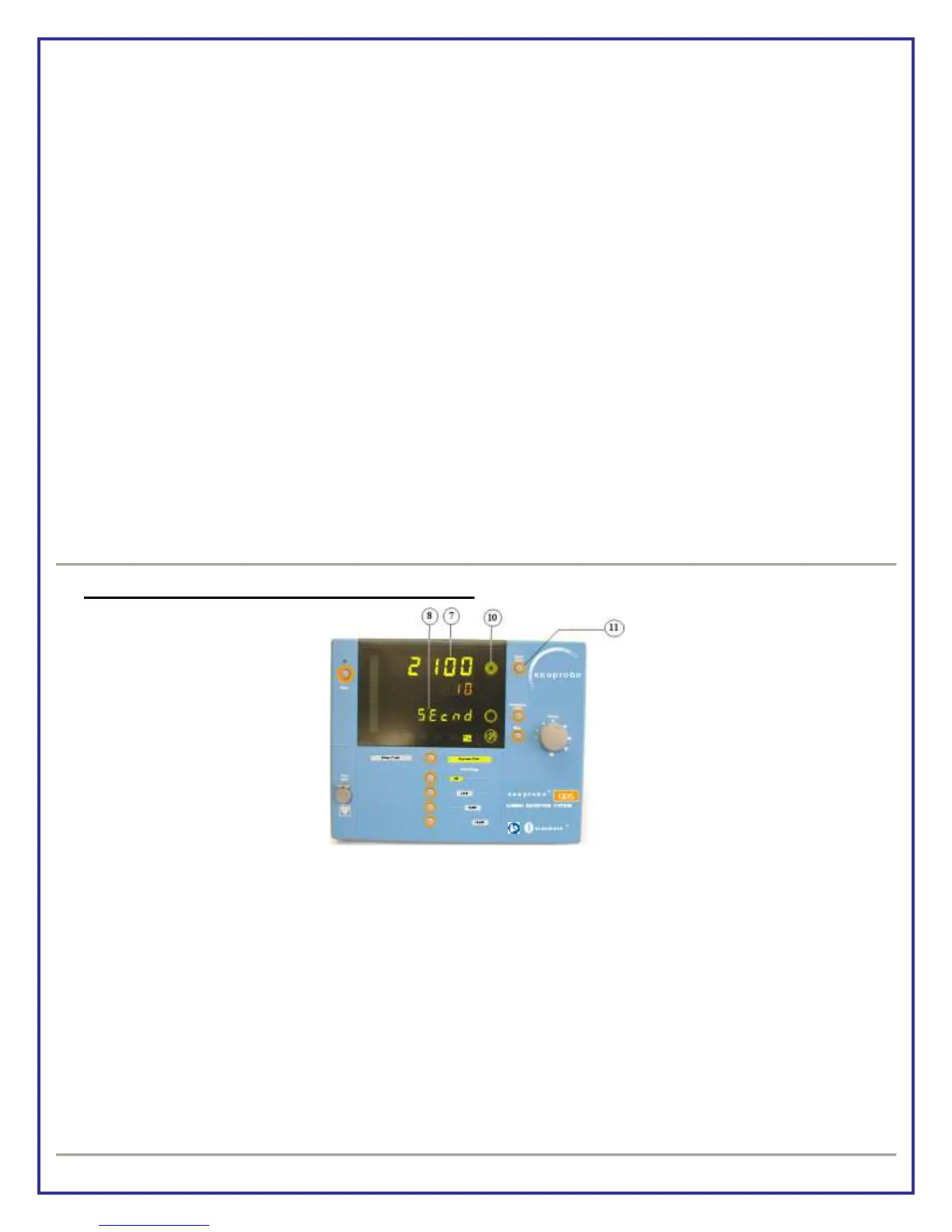

Acquiring Ten Second Count in Dynamic Pitch Mode

TEN SECOND COUNT

Acquire a Ten Second Count

 Hold probe stationary over target area.

 Press and hold Target Count Button [11] until beep sounds; then release button.

 Hold probe steady for 10 seconds over target area until Count Bar [6] is full and double Stop Beep sounds.

Collect Ten Second Target Count

 Target Count Symbol [10] flashes green.

 Target Count Readout [7] displays dashes.

 Count Bar [6] fills from bottom to top as data is collected.
