GDS Operation Manual
AW-000639 Page 12 of 38
Ten Second Target Count Value
Note: Value displayed is not counts per second. Value is total counts obtained in 10 seconds.
10 second Target Count [7] displayed for 5 seconds; Target Count Symbol [10] flashes amber.
“10” is displayed below amber Target Count Readout, and message “secnd” displayed in green.
Count Bar [6] off.
After 5 seconds, double Stop Beep sounds and system returns to Dynamic Pitch mode, displaying last
calculated Background Count [8] and current Target Count Readout data [7].

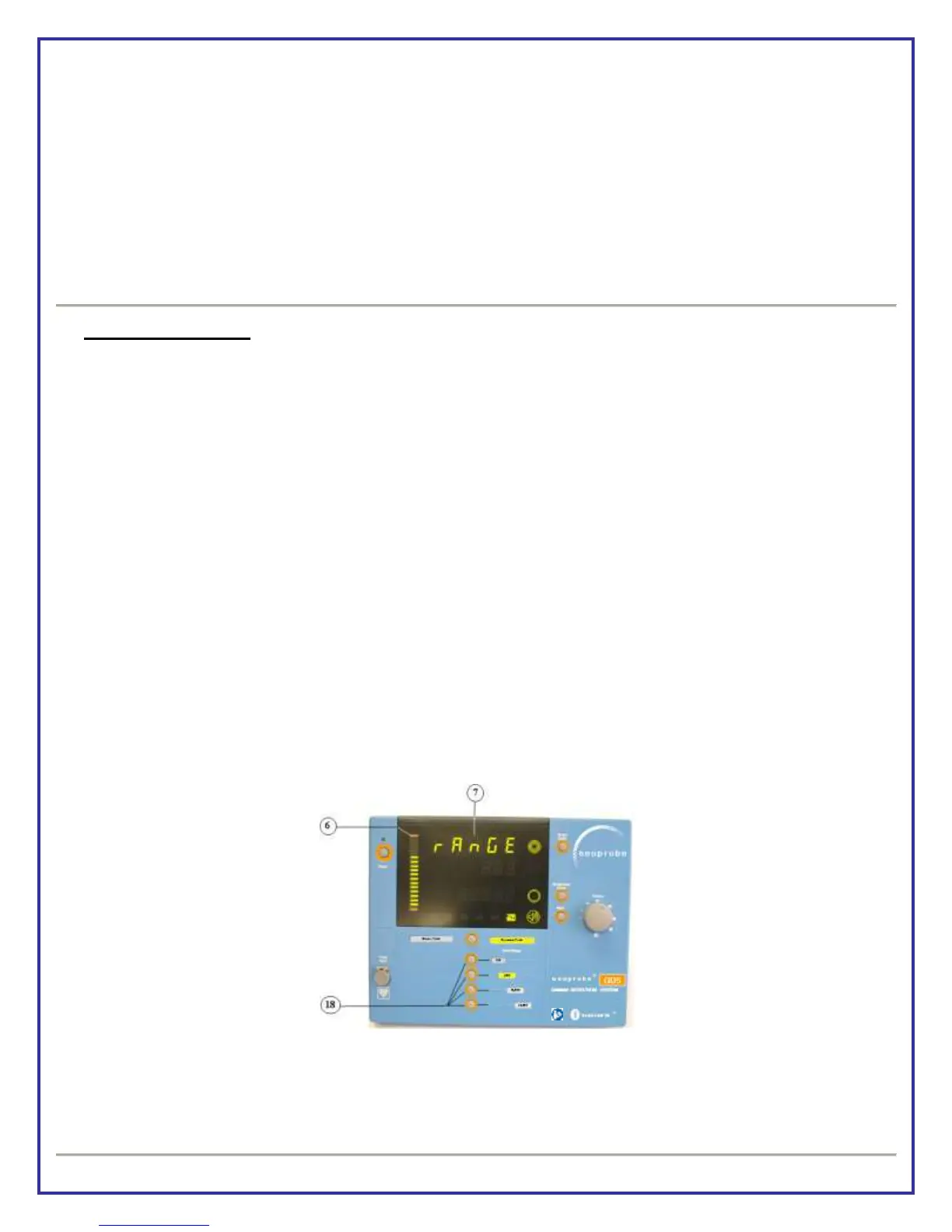

How to Use Autorange
Console has 4 preset ranges: 100; 1000; 10000; and 50000 counts per second. Physician can define a different range
with Autorange function.
Hold probe stationary over target area to achieve highest Target Count Readout data [7] and highest sound.
Press and hold one of four Dynamic Pitch Range Buttons [18] until beep sounds, release button. Hold probe
steady over target area until Count Bar [6] is full and double Stop Beep sounds.
NOTE: Press and release any Dynamic Pitch Range Button [18] to return to default settings for desired range.
NOTE: If Target Count Value [7] is greater than maximum value of desired Dynamic Pitch Range [18], then
Count Bar [6] is full and flashes with varying beep.
Console display
Target Count Readout data [7] is displayed.
Background Count Data [8] is blank.
Count Bar [6] fills from bottom to top as data is collected; double Stop Beep sounds when completed.
NOTE: Autorange feature sets maximum data point of user defined range to 125% of Target Count [7] acquired
during Autorange process.
Background Count [8] is set to either 2 counts per second or 2% of full scale, whichever is greater.
Selected Dynamic Pitch Range light [18] flashes.
AUTORANGE
