DeVilbiss 7314P-D - Important Parts of Your 7314 Series DeVilbiss Suction Unit; Disposable Container with Internal Filter Cartridge; Disposable Container with External Bacteria Filter; Reusable Container with External Bacteria Filter

EN - 4 A-7314

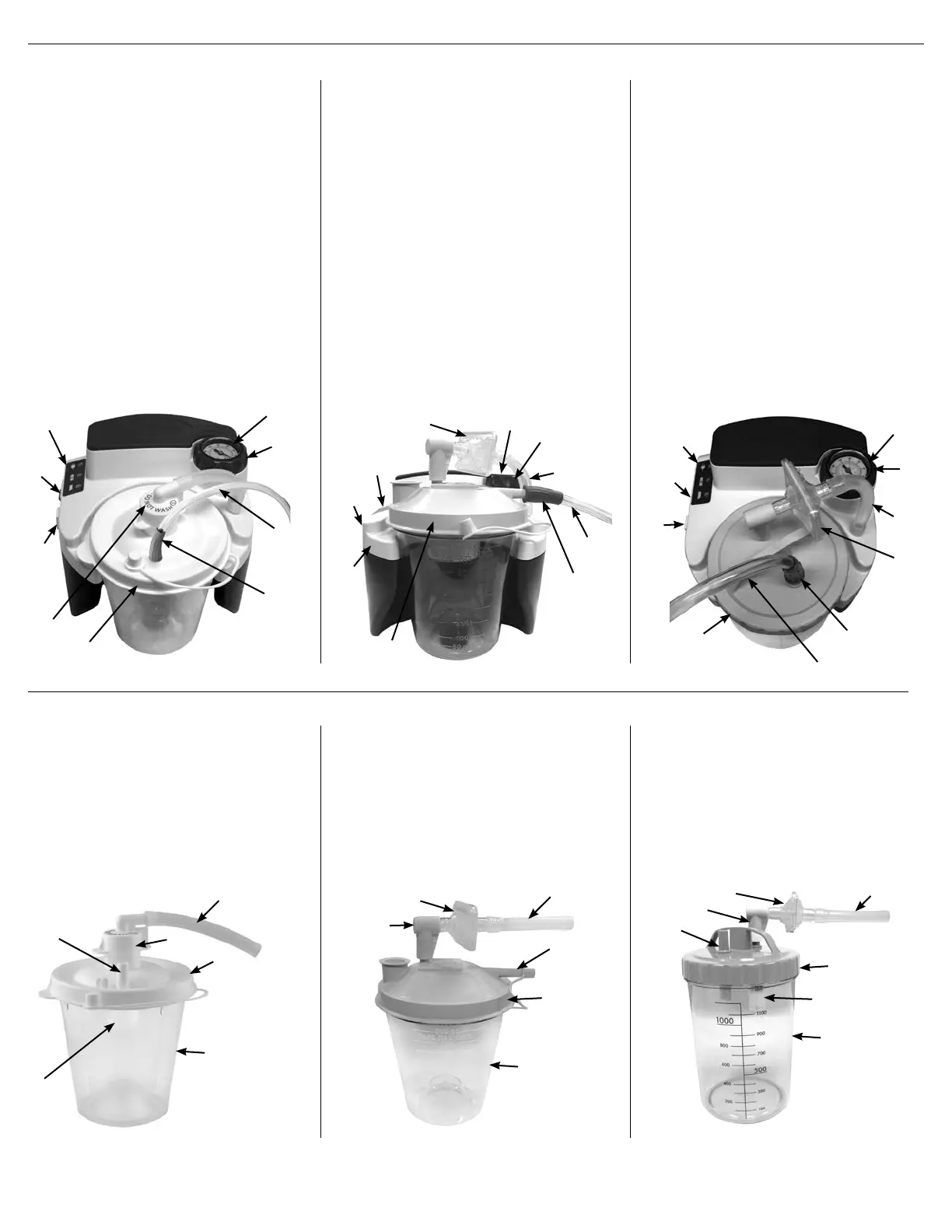

IMPORTANT PARTS
Disposable Container with Internal Filter
Cartridge and Splash Guard
1. 4-1/2” (11.43 cm) connection tubing
2. Filter cartridge (Do not get wet)
3. Lid
4. Jar
5. Splash guard
6. Patient tubing connector
Disposable Container with External Bacteria
Filter
1. 3-3/8” (8.57 cm) connection tubing
2. Patient tubing connector
3. Lid
4. Jar
5. Connection elbow
6. Bacteria lter
Reusable Container with External Bacteria
Filter
1. 4-1/2” (11.43 cm) connection tubing
2. Lid with o-ring
3. Overow valve
4. Jar
5. Patient tubing connector
6. Connection elbow
7. Bacteria lter
6
1
4
2
7
8
9
5
3
7
1
5
2
8
9
10
6
4
3
1
5
3
6
2
4
7
1
2
5
3
4
6
1
5
2
4
6
3
with Disposable Container and Internal Filter
Cartridge
1. Vacuum gauge
2. Vacuum regulator knob
3. 6’ patient tubing
4. Patient tubing connector
5. Disposable container with lid (oat shut off
incorporated into lid) and lter cartridge
6. Filter cartridge with 4-1/2” (11.43 cm) tubing
7. DC power input (on side)
8. Power switch
9. LED power lights
AC to DC adapter (not shown)
DC power cord (not shown) optional
Internal rechargeable battery (not shown) 7314P
series only
Carrying case (not shown) 7314P series only
with Disposable Container and External
Bacteria Filter
1. Vacuum gauge
2. Vacuum regulator knob
3. 3-3/8” (8.57 cm) connection tubing
4. 6’ patient tubing
5. Patient tubing connector
6. Disposable container with lid (oat shut off
incorporated into lid)
7. DC power input (on side)
8. Power switch
9. LED power lights
10. External bacteria lter
AC to DC adapter (not shown)
DC power cord (not shown) optional
Internal rechargeable battery (not shown) 7314P
series only
Carrying case (not shown) 7314P series only
with Reusable Container and External
Bacteria Filter
1. Vacuum gauge
2. Vacuum regulator knob
3. 4-1/2” (11.43 cm) connection tubing
4. External bacteria lter
5. Patient tubing connector
6. 6’ patient tubing
7. Lid
8. DC power input (on side)
9. Power switch
10. LED power lights
AC to DC adapter (not shown)
DC power cord (not shown) optional
Internal rechargeable battery (not shown) 7314P
series only
Carrying case (not shown) 7314P series only
7314 Series DeVilbiss Vacu-Aide QSU Suction Unit
7
5
6
10
1
4
8
3
2
9
