DeVilbiss 7314P-D - Battery Charging & Filter Maintenance; Changing Internal Filter Cartridge; Changing External Bacteria Filter

EN - 6 A-7314
NOTE– Charge battery for a minimum of 17 hours before rst use.
NOTE– Fully recharge battery after each use. The unit will continue to oat charge the battery after the charge indicator turns off, so leave the unit connected to AC when not in use.
CAUTION– Discharging the battery completely will shorten the life of the battery. Do not operate the unit more than a few minutes if the low battery indicator light is lit. Recharge as soon
as possible.
NOTE– Unit run time will decrease as the battery ages.
NOTE– Unit run time will also be reduced by letting the battery sit at a discharged state for extended periods.
STORAGE NOTE– Battery should be charged for a minimum of 17 hours prior to storage, and at least once every 6 months. Important - If battery recharge is delayed beyond 6 months,
battery may be able to provide full run time after completion of 3 full charge and discharge cycles.
NOTE– A fully charged battery will provide approximately 60 minutes of continuous operation at a zero vacuum level (free ow). Operation time will decrease with higher vacuum levels.
NOTE– When charging the battery, use an external power source and verify that the charge light illuminates when the unit is in the “Off’ position. If the battery does not charge, please
be sure the model you are using has a battery installed prior to contacting your authorized DeVilbiss Healthcare provider.
NOTE– The internal rechargeable battery is sealed lead-acid. Contact your local authorities for instruction on proper disposal.
NOTE– Do not connect the AC adapter to an outlet controlled by a switch to ensure power is supplied to unit at all times.
NOTE– Do not connect the DC power cord to an outlet that is not constantly energized.

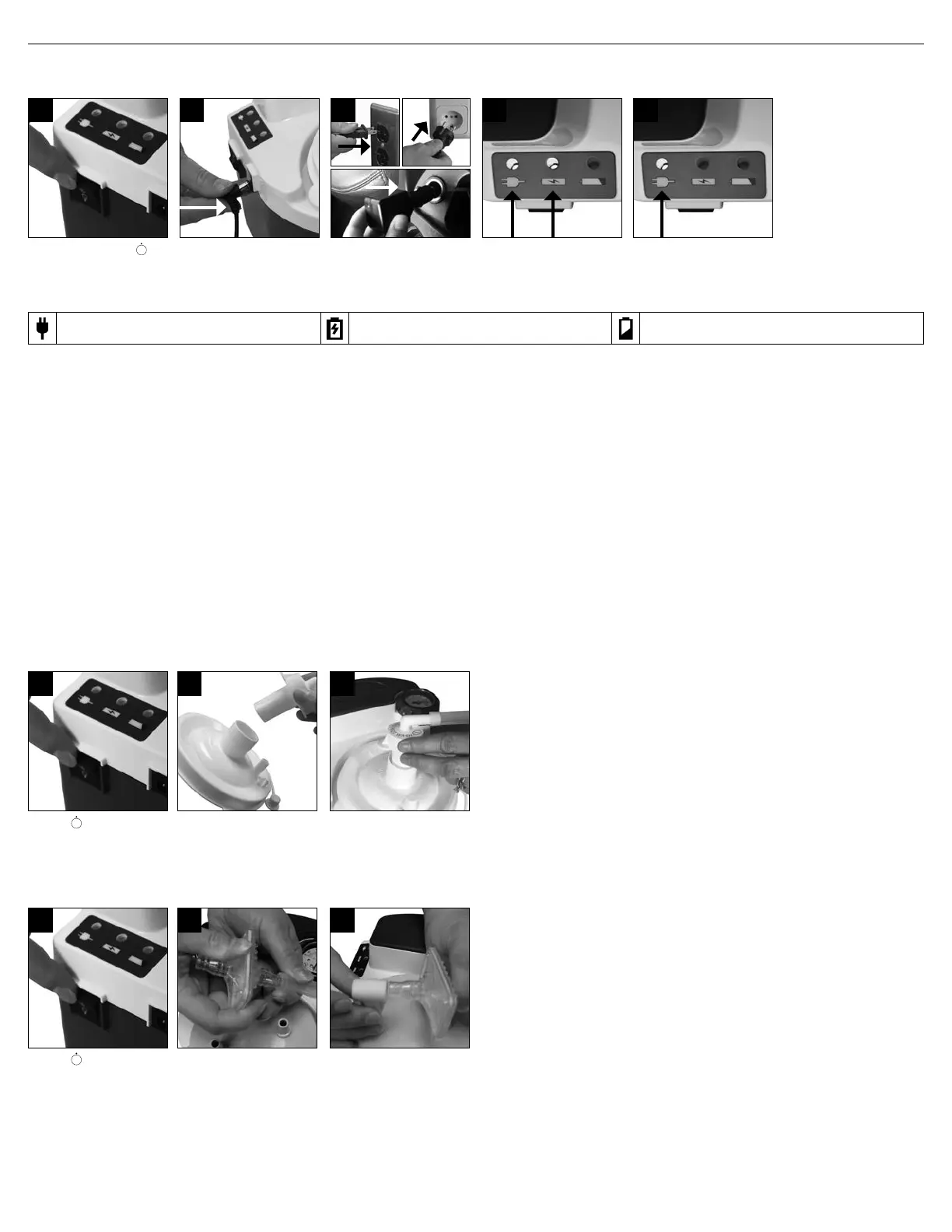

BATTERY CHARGING & FILTER MAINTENANCE
Battery Charging (7314P Series Only)
On 7314P series, the units are equipped with a factory-installed rechargeable battery. The unit will have a light for low battery and charge indication.
Ensure power switch is “off”.
Plug the small connector of
the AC or DC adapter into the
DC power input.
Plug the other end into an AC
wall outlet or DC receptacle.
Battery charging begins; 17
hours for full charge.
1 2 4
Battery charging complete.
5
3
Changing Internal Filter Cartridge (single-patient use) Disposable Container
Change lter cartridge if overow occurs or every two months, whichever comes rst.
Turn unit “off”.
Remove lter cartridge and
4-1/2” (11.43 cm) tubing.
Install new cartridge and
attach tubing.
1 2 3
Changing External Bacteria Filter (single-patient use) Reusable Container and/or Disposable Containter
Change bacteria lter if overow occurs or every two months, whichever comes rst.
NOTE– Do not substitute any other material for this
bacteria lter. Substitution may lead to contamination
or poor performance; use only DeVilbiss lters.
NOTE– Bacteria lter must be changed between
patients.
Turn unit “off”.
Remove lter by disconnecting
it from suction unit and lid
assembly.
Replace with a clean DeVilbiss
bacteria lter (non-sterile) and
remount to suction unit and lid.
Ensure that the clear side of the
bacteria lter is toward elbow
and bottle when installing. Do
not reverse direction of lter.
Additional lters (7305D-608
12/pack) may be purchased
from your authorized DeVilbiss
Healthcare provider.
1 2 3
NOTE– Do not substitute any other material for this lter cartridge. Substitution may lead
to contamination or poor performance; use only DeVilbiss lter cartridges.
NOTE– The lter cartridge contains a hydrophobic lter. If the lter media becomes wet,
air ow will be stopped. The lter cartridge must then be replaced. Do not remove lter
media from lter cartridge.
NOTE– Filter cartridges are included with each disposable container. They are also
available separately (7305D-635 12/pack).
LED Explanations:
Green– Illuminated when external power is supplied to
unit from an AC or DC power source.
Yellow– Battery is being charged. Light will go out
when battery is fully charged.
Red– Low battery. Seek another power source and charge
battery as soon as possible when light illuminates.
Service Life
• Service life of the suction unit is 5 years.
• Service life of the battery is 200 discharge cycles.
• Service life of the disposable container is 30 dishwasher cycles.
• Service life of the reusable container is 30 autoclave cycles at 121°C.
