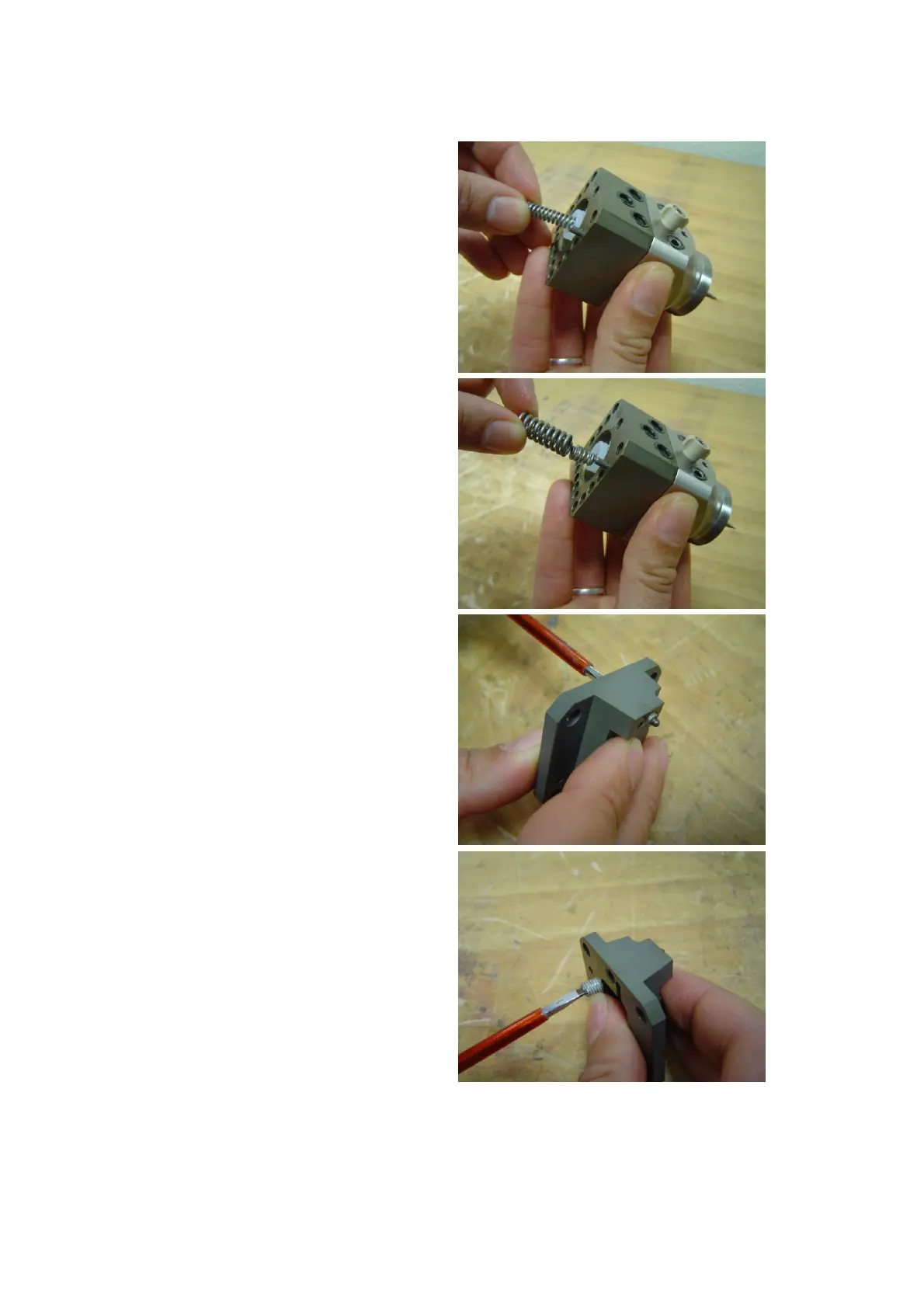

11. Push the small spring (item 16) onto the
spring pin.
12. Push the large spring (item 17) over the
small spring.
13. Screw the elastic pressure piece
(item 19) into the end plate.
Note:
The ball must protrude forward about 3 mm.
14. Secure the elastic pressure piece with
the set screw (item 18).
