High-performance automatic gun
AGMD
1-1-AGMD-514&515-E-002-1
23

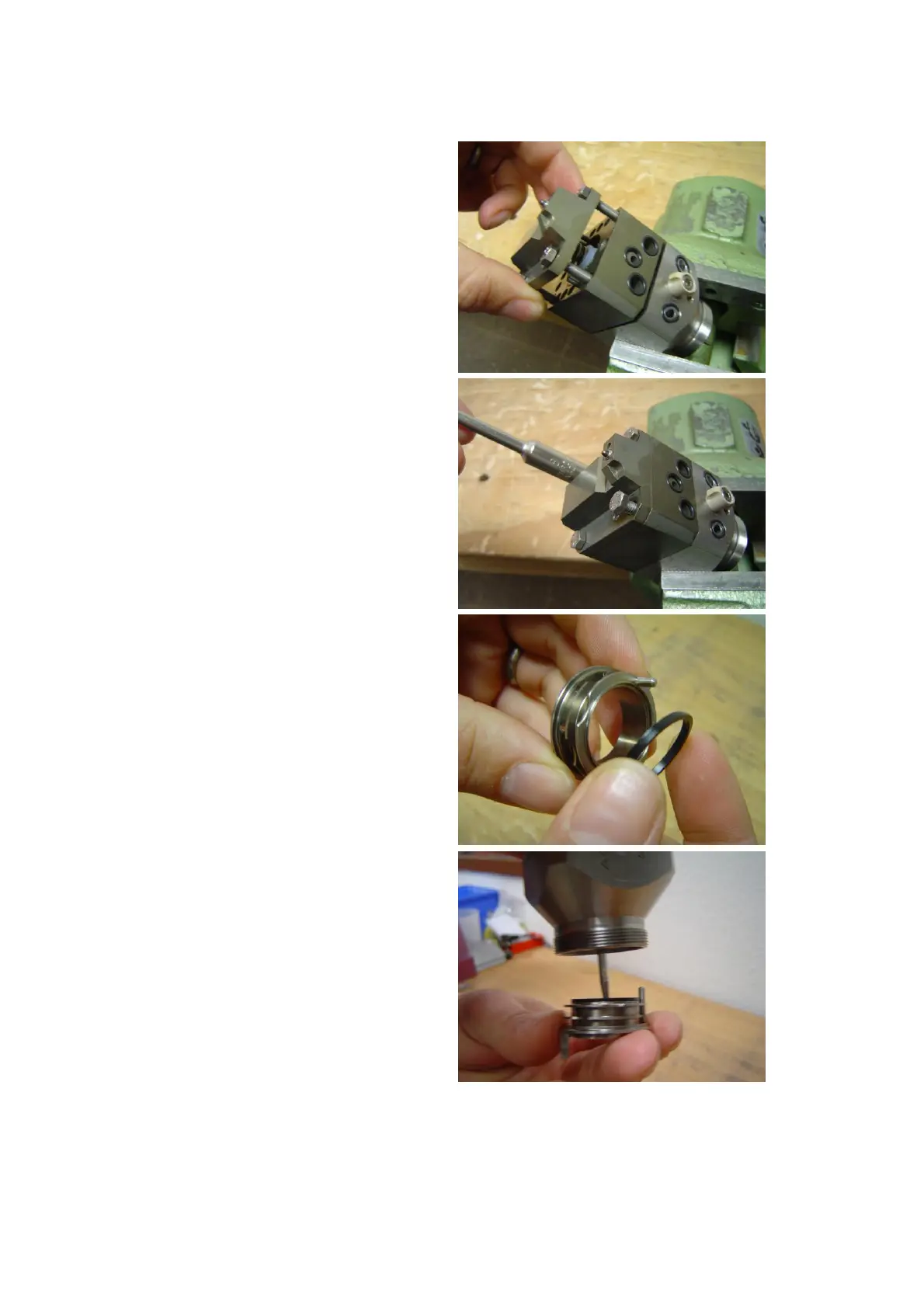

15. Place the end plate (item 20) on the
head holder (item 21) with the hexagon
screws.
16. Cross tighten the screws (item 21) to a
torque of 4.5 Nm.
17. Insert the lower gasket (item 4) into the
air distributing ring (item 5).
18. From below, position the air distributing
ring with gasket in the head.
Note:
Make certain the gasket does not slip out of
place.
