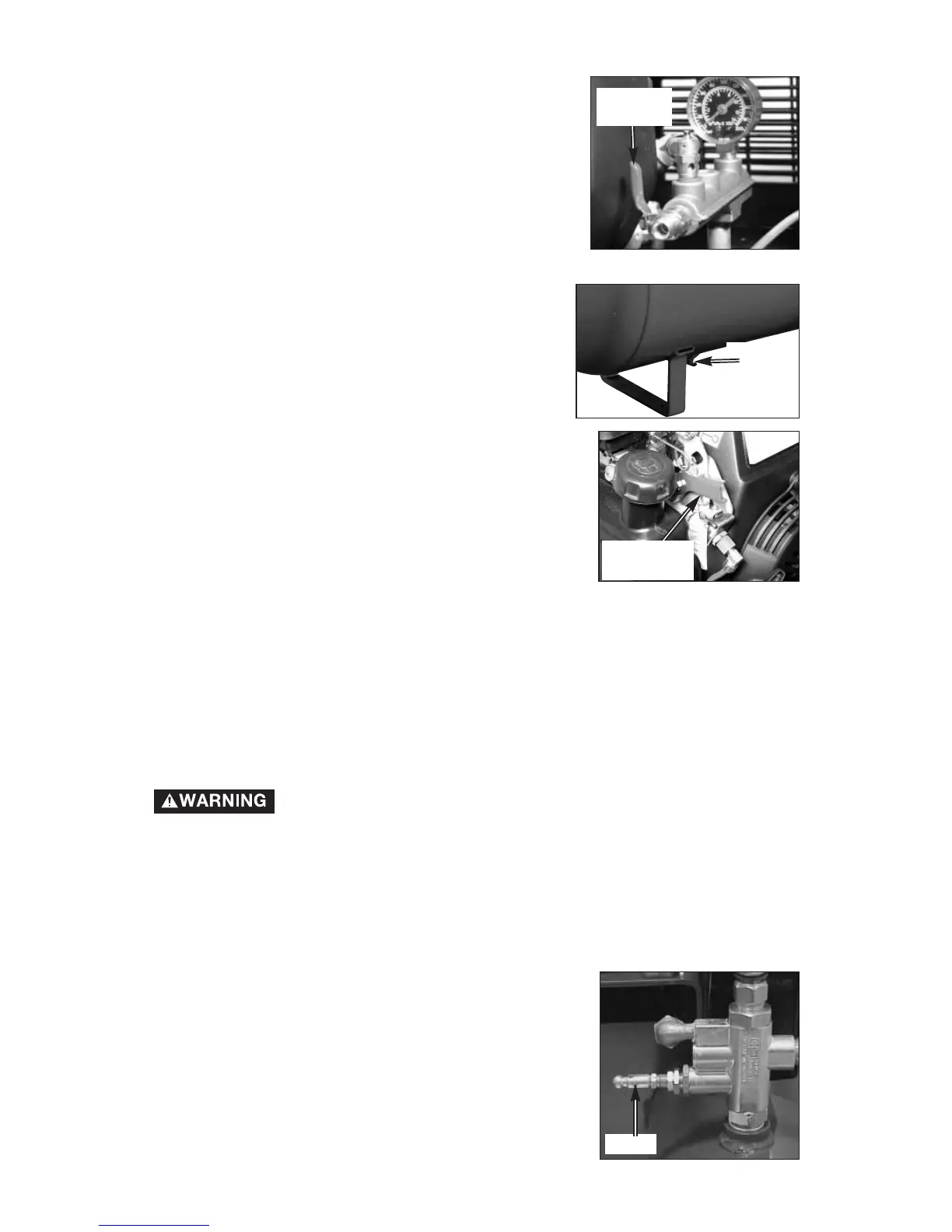

Shut Off Valve: Opens and closes air flow.
Drain Valve: The drain valve is located at the base
of the air tank and is used to drain condensation
at the end of each use.
Air Intake Filter (not shown): This filter is
designed to clean air coming into the pump. This
filter must always be clean and ventilation
openings free from obstructions. See
"Maintenance".
Engine Stop Lever: Used to stop engine. Push down
and hold until engine shuts off.
Shut-off
Valve
Drain
Valve
Engine
Stop Lever
How to Use Your Unit
How to Stop:
1. See the engine manufacturer's manual for the procedure to safely shut
down the gasoline engine. Turning the gasoline engine off will turn off the air
compressor as well.
Before First Start-up
Break-in Procedure
Serious damage may result if the following break-in
instructions are not closely followed.
This procedure is required when:
1. Before the air compressor is used for the first time.
2. When the unloader valve is
replaced.
3. When a complete compressor pump is replaced.
The procedure:
1. To prevent pressure from building up in the air
tanks during this break-in period, you must
open the unit's unloader valve. Place unloader
valve in “Open” position as shown.
Open
