11- ENG
D26805

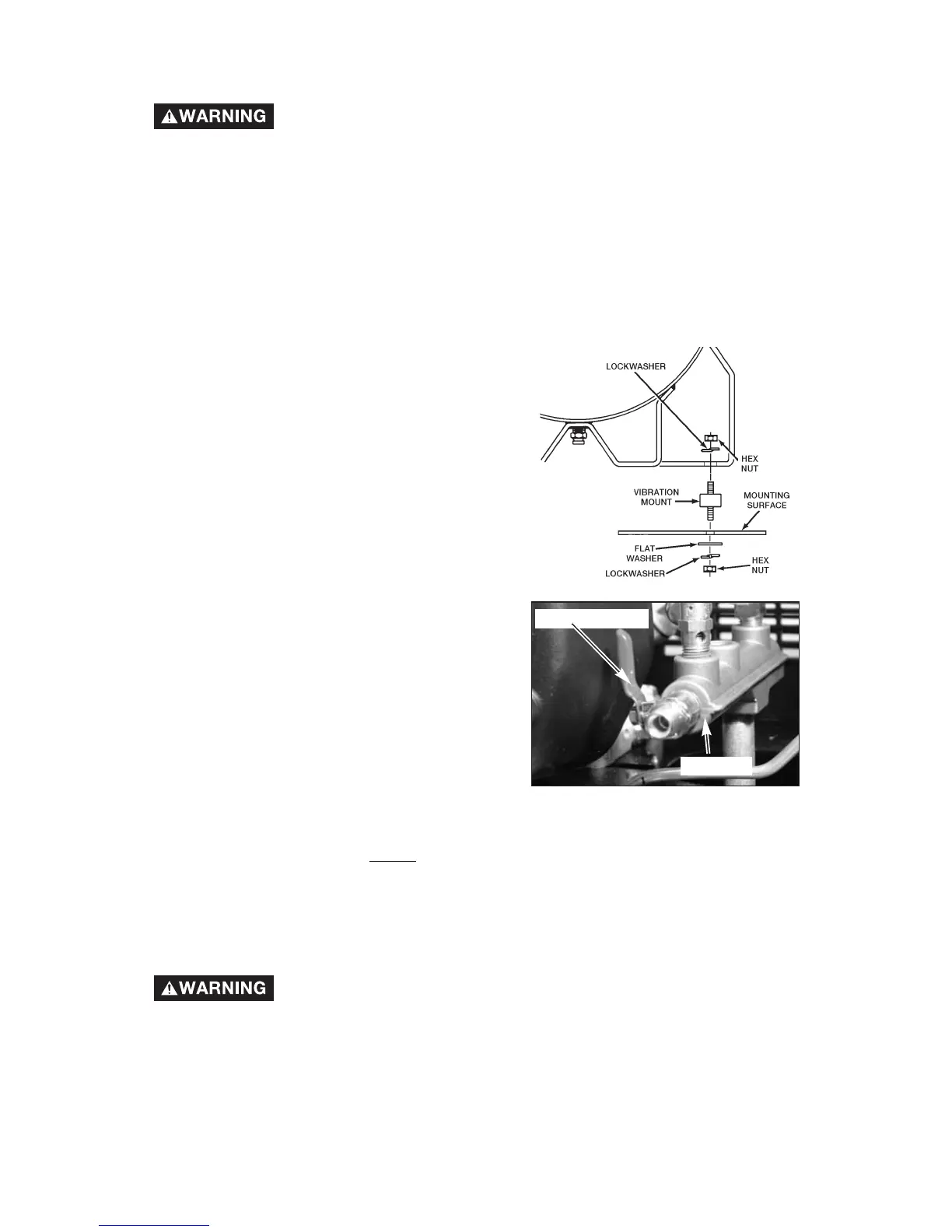

Assemble Shut-Off Valve
1. Apply pipe sealant to the tapered pipe
threads on the shut-off valve and
tighten into the manifold.
Permanent Installation
Bolting legs to a stiff surface can cause tank rupture
resulting in serious injury or damage. Do not permanently
mount compressor to any surface without using the vibration mount kit.
This compressor may be permanently mounted in a location such as a truck
bed, it desired. A vibration mount kit is included for this purpose.
1. In order to maintain adequate ventilation for compressor cooling and to
avoid contact with pick-up truck bed, always mount the unit at least 8"
from any vertical wall. Using the holes in the air tank legs as a guide, mark
and drill four 5/16" diameter holes in the mounting surface.
2. Insert the vibration mounts in the mounting holes. Place a flat washer
under the mounting surface and secure each mount with a lock washer
and nut.
3. Set the unit on the exposed threaded
ends of the mount to the air tank legs with
a lock washer and nut.
Lubrication and Oil
Engine
1. The engine was filled WITH
oil at the manufacturer. Check engine oil level
before operating unit. If necessary, fill engine to the appropriate level with
recommended oil, see engine manual supplied by engine manufacturer for
correct procedure.
2. Add fuel to engine. See engine manual supplied by engine manufacturer for
correct procedure.
Gasoline vapor is highly flammable. Refuel outdoors
preferably, or only in well-ventilated areas. Do not refuel or
check gasoline level while the engine is running. Do not store, spill, or use
gasoline near an open flame, a source of sparks (such as welding), or near
operating electrical equipment.
shut-off valve
manifold
