DeVilbiss PD1000 - PARTS and Illustrations

LT-1859
8
PARTS AND ILLUSTRATIONS
EXTERNAL PARTS LISTS
PD1000D-601 Top/Bottom Cover
PD1000D-602 Rotary Selector
PD1000D-608 Battery Door
PD1000D-609 Regulator Knob
PD1000D-610 Cover Screws 6 x 1
PD1000D-611 Cover Screws 6 x .25
Cannula Fitting
PD1000D-612 Aluminum-2 lpm
PD1000D-613 Gold-3 lpm
PD1000D-614 Green-4 lpm
PD1000D-615 Blue-5 lpm
PD1000D-616 Red-6 lpm

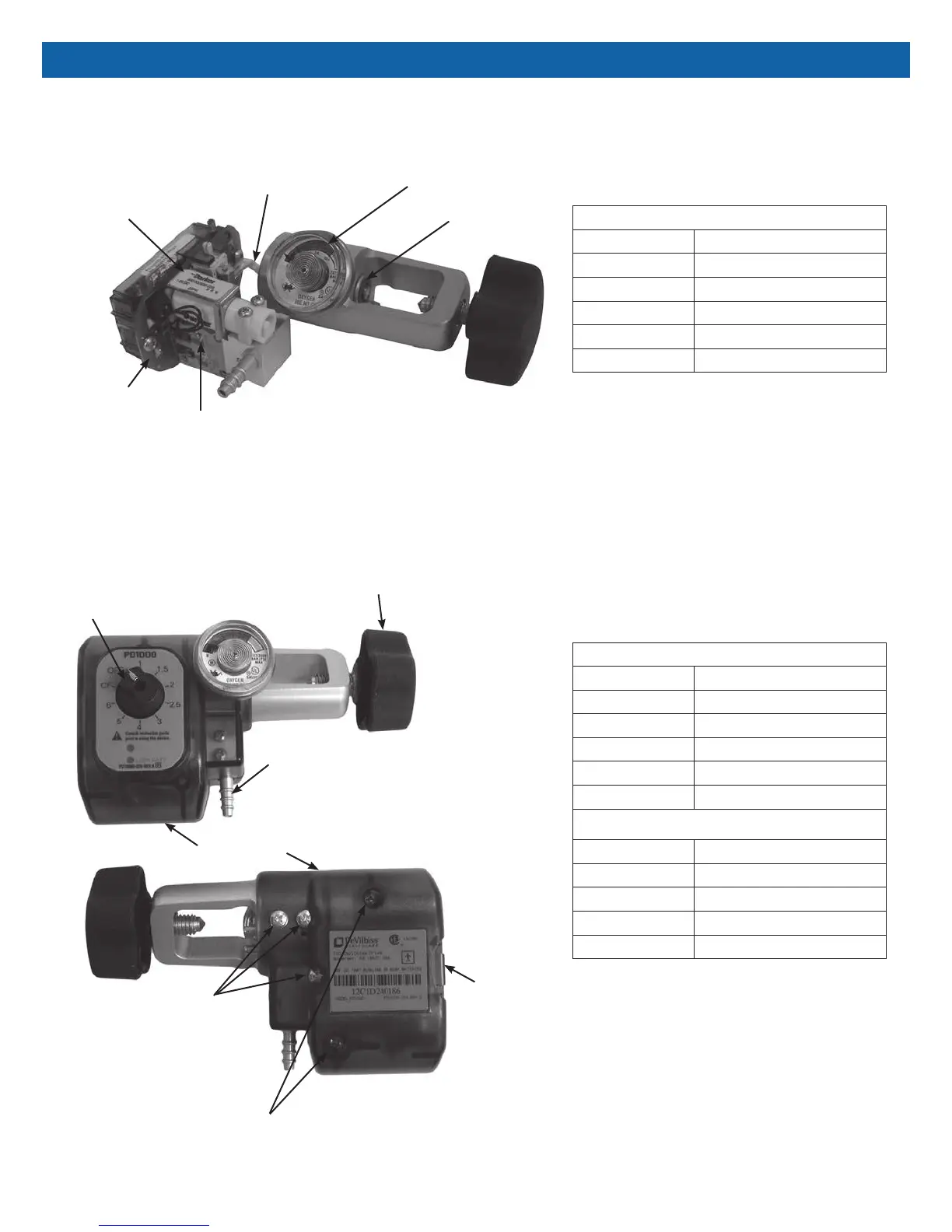

VII. PARTS AND ILLUSTRATIONS
Regulator/Gauge
PC Board
Regulator Seal
Regulator Hose
Solenoid/Manifold
Vacuum Switch
Internal Parts
Cover Screws
6x.25
Regulator
Knob
Top/Bottom Cover
Battery
Door
Cover Screws
6x1
Rotary Selector
Cannula Fitting
External Parts
INTERNAL PARTS LISTS
9286-RD Regulator Seal
PD1000D-604 Solenoid/Manifold
PD1000D-605 Vacuum Switch
PD1000D-606 Regulator/Gauge
PD1000D-607 PC Board
Regulator Hose
