Devolo Magic 1 WiFi mini User Manual

35 Network configuration
devolo Magic 1 WiFi mini

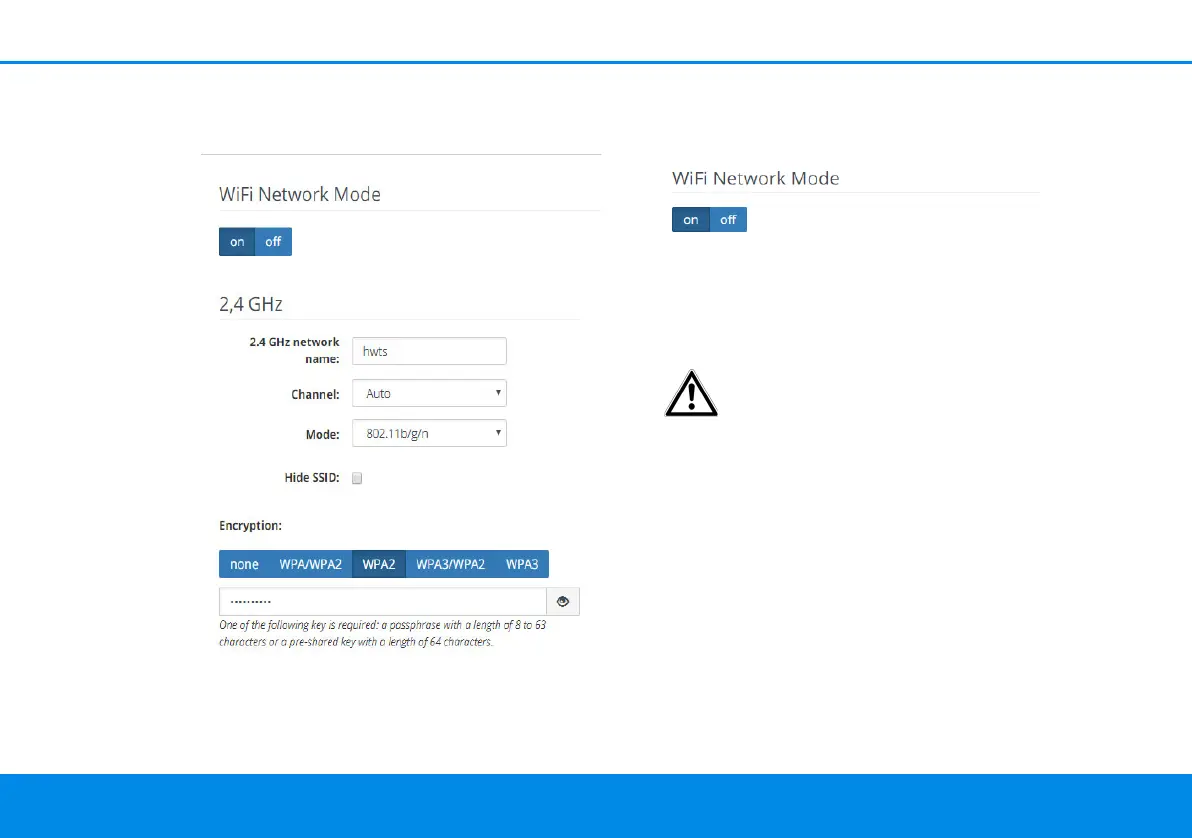

4.4.2WiFi networks
You can make all necessary changes to your Wi-Fi
network here.
Wi-Fi network mode
The WiFi network mode field lets you define your
preferred setting by clicking the respective field:
b On – The 2.4 GHz frequency band is used
b Off – If desired, you can completely switch off
the Wi-Fi section of your
devolo Magic 1 WiFi mini here.
Keep in mind that after saving this set-
ting, you will be disconnected from any
existing wireless connection to the
devolo Magic 1 WiFi mini. In this case,
configure the device over Ethernet.
Network name
The network name (SSID) determines the name of
your wireless network. You can see this name
when logging onto the Wi-Fi, allowing you to
identify the correct Wi-Fi network.
Channel
There are 13 channels available in the 2.4 GHz
frequency band. The channels recommended for
Europe are the channels 1, 6 and 11. This ensures
Wi-Fi networks
Magic_1_WiFi_mini.book Seite 35 Mittwoch, 16. Oktober 2019 11:27 11

Devolo Magic 1 WiFi mini Specifications

General

Modulation	64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, DSSS, OFDM, QPSK
Power plug	Type C
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit AES, WPA, WPA2, WPS, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1200 Mbit/s
Maximum operating distance	400 m
Ethernet LAN interface type	Fast Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
WLAN data transfer rates supported	300 Mbit/s
Certification	CE
Product color	White
LED indicators	PLC, WLAN
Cables included	LAN (RJ-45)
Quantity per pack	- pc(s)
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power consumption (standby)	1 W
Power consumption (typical)	4.4 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks
Linux operating systems supported	Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10
Mobile operating systems supported	Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13
Windows operating systems supported	Windows 10, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	41 mm
Width	68 mm
Package depth	231 mm
Package width	190 mm
Package height	92 mm
Package weight	670 g
