Devolo Magic 1 WiFi mini User Manual

51 Network configuration
devolo Magic 1 WiFi mini
4.6 LAN
You make changes to the network settings in the
LAN area.
4.6.1Status
You can see the current LAN status of the
devolo Magic adapters here. The Ethernet area
shows the network devices connected to the two
network connectors Port 1 (e.g. PC, NAS, etc.).
IPv4/IPv6
Depending on how the devolo Magic 1 WiFi mini
is connected to the Internet (IPv4 or IPv6), current
network information is displayed, such as Address,
Subnet mask, Standard gateway and DNS server.
4.6.2IPv4/IPv6 configuration
In the factory default settings, only the Get IP con-
figuration from a DHCP server option for IPv4 is
enabled. This means that the IPv4 address is retrie-
ved automatically from a DHCP server. The current-
ly assigned network data are visible (greyed out).
If a DHCP server is already present on the network
for assigning IP addresses (e.g. your Internet rou-
ter), you should leave the Get IP configuration
from a DHCP server option enabled so that the
devolo Magic 1 WiFi mini automatically receives
an address from it.
If you want to assign a static IP address, make
entries accordingly for the Address, Subnet mask,
Default gateway and DNS server fields.
Confirm your settings by clicking the Disk icon.
Then, restart the devolo Magic adapter (see Chap-
ter 4.7.3 Configuration) to ensure that your chan-
ges take effect.

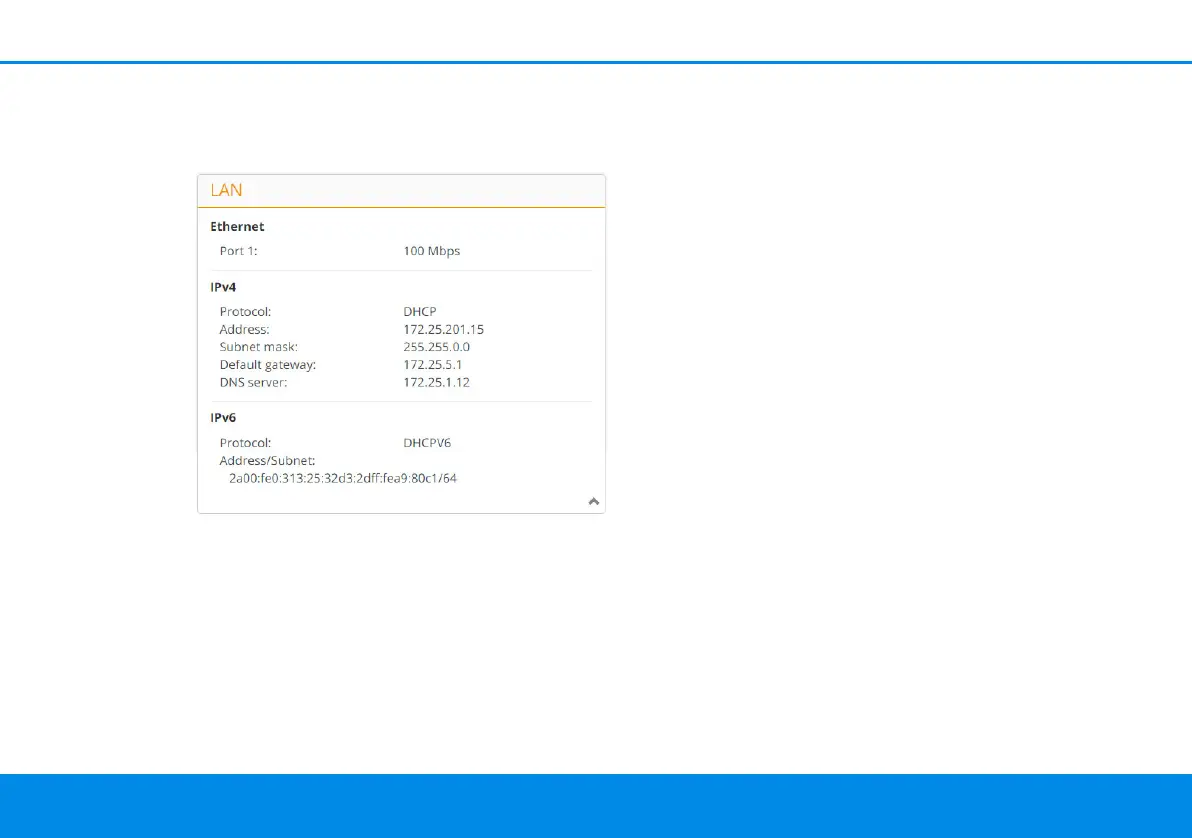

LAN status
Magic_1_WiFi_mini.book Seite 51 Mittwoch, 16. Oktober 2019 11:27 11

Devolo Magic 1 WiFi mini Specifications

General

Modulation	64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, DSSS, OFDM, QPSK
Power plug	Type C
Ethernet LAN	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit AES, WPA, WPA2, WPS, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Built-in power socket	No
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	1200 Mbit/s
Maximum operating distance	400 m
Ethernet LAN interface type	Fast Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
WLAN data transfer rates supported	300 Mbit/s
Certification	CE
Product color	White
LED indicators	PLC, WLAN
Cables included	LAN (RJ-45)
Quantity per pack	- pc(s)
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power consumption (standby)	1 W
Power consumption (typical)	4.4 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks
Linux operating systems supported	Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10
Mobile operating systems supported	Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13
Windows operating systems supported	Windows 10, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	41 mm
Width	68 mm
Package depth	231 mm
Package width	190 mm
Package height	92 mm
Package weight	670 g
