19 Introduction
devolo Magic 2 WiFi next
* Information about the web interface can be
found in Chapter 4 Network configuration.
** Information on improving the transmission rate
can be found in Chapter 5.2 Bandwidth optimi-
zation.
***A devolo Magic adapter switches to standby
mode after approximately 10 minutes if no active
network device (e.g. computer) is connected to the
network interface and the Wi-Fi is switched off. In
this mode, the devolo Magic adapter cannot be
accessed over the electrical wiring. As soon as the
network device (e.g. computer) connected to the
network interface is switched on again, your
devolo Magic adapter can also be accessed over
the electrical wiring again.
Check whether the adapter is connected to the
mains supply correctly and whether the pairing
operation has been carried out successfully. For
more information about this, refer to 3.3
Connecting the devolo Magic 2 WiFi next.
2.3.2Wi-Fi button
This button controls the following functions:
Wi-Fi on/off
In the factory default settings, the Wi-Fi setting is
already enabled and the Wi-Fi encryption is set to
WPA2. The default WiFi key for the initial
installation of the devolo Magic 2 WiFi next is the
device's WiFi key. You will find the unique key on
the label on the back of the housing.

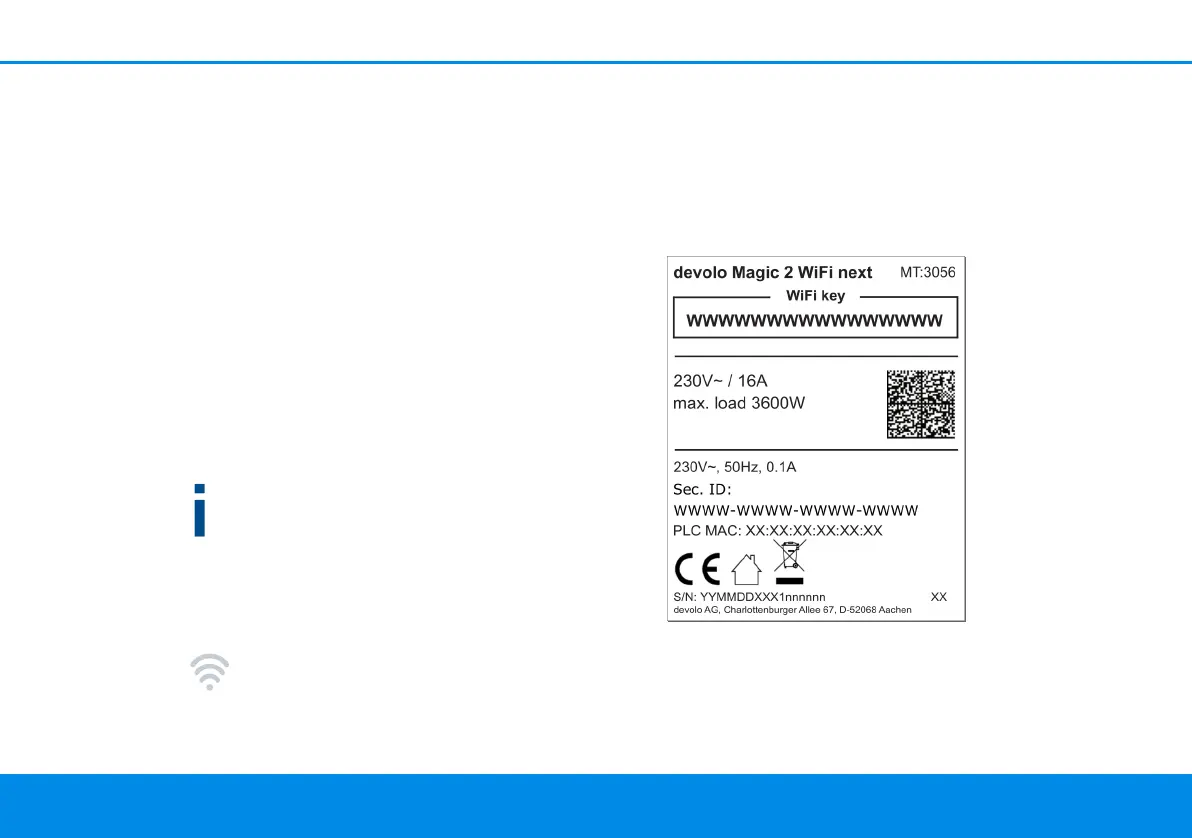

Fig. 4: country-specific type plate

Devolo Magic 2 WiFi next Specifications

General

MIMO type	Multi User MIMO
Power plug	-
Ethernet LAN	Yes
Damping filter	2 - 86 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA, WPA2, WPA3-PSK, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	2400 Mbit/s
Maximum operating distance	500 m
Ethernet LAN interface type	Gigabit Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
WLAN data transfer rates supported	300, 867 Mbit/s
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)
Antenna type	Internal
Certification	WEEE
Product color	White
Country of origin	Germany
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power over Ethernet (PoE)	No
Power consumption (standby)	3.1 W
Power consumption (typical)	8.9 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	40 mm
Width	76 mm
Height	152 mm
Package depth	92 mm
Package width	118 mm
Package height	190 mm
Package weight	570 g
