Devolo Magic 2 WiFi next User Manual

Introduction 14
devolo Magic 2 WiFi next
2.3 Pairing – Establishing a PLC
connection
devolo Magic adapters that are in the factory de-
fault condition, i.e. have been recently purchased
or successfully reset (see Chapter 3.5 Removing
the devolo Magic adapter from a PLC network),
automatically start to attempt to pair (establish a
PLC connection) with anotherdevolo Magic adap-
ter when reconnected to the mains supply.
Starting up a new devolo Magic PLC network
After plugging the devolo Magic adapters into
available power sockets, a new devolo Magic net-
work is established automatically within 3 minutes.
Expanding an existing devolo Magic PLC net-
work by adding another devolo Magic adapter
In order to use a new devolo Magic 2 WiFi in your
devolo Magic- network, first you have to connect it
to your existing devolo Magic adapters devices as a
network. This is accomplished by using a shared
PLC password, which can be assigned in various
ways:
b Using devolo Cockpit or the
devolo Home Network App (see Chapter 3.4
Installation of devolo software)
b Using the web interface (see Chapter 4.5
Powerline)
b Using the PLC button as described below.

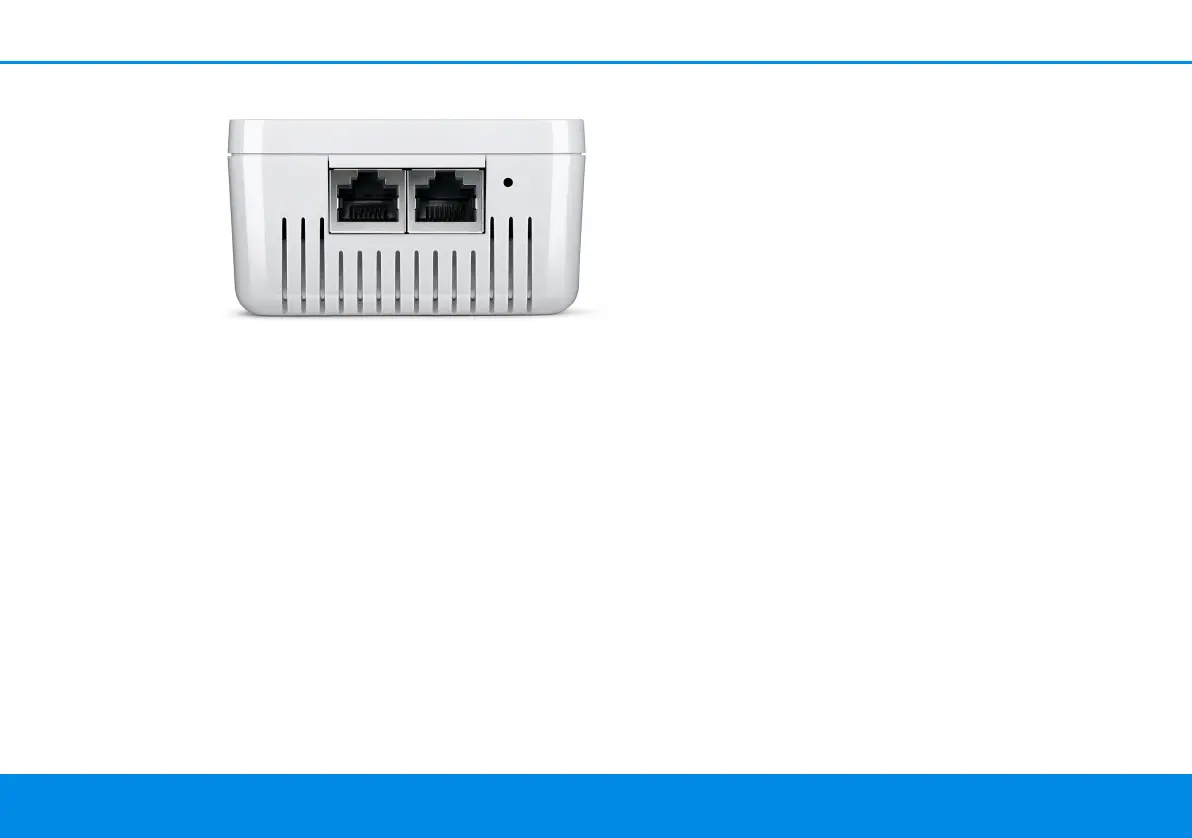

Fig. 3 Network connections

Devolo Magic 2 WiFi next Specifications

General

MIMO type	Multi User MIMO
Power plug	-
Ethernet LAN	Yes
Damping filter	2 - 86 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA, WPA2, WPA3-PSK, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	2400 Mbit/s
Maximum operating distance	500 m
Ethernet LAN interface type	Gigabit Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
WLAN data transfer rates supported	300, 867 Mbit/s
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)
Antenna type	Internal
Certification	WEEE
Product color	White
Country of origin	Germany
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power over Ethernet (PoE)	No
Power consumption (standby)	3.1 W
Power consumption (typical)	8.9 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	40 mm
Width	76 mm
Height	152 mm
Package depth	92 mm
Package width	118 mm
Package height	190 mm
Package weight	570 g
