Devolo Magic 2 WiFi next User Manual

Network configuration 44
devolo Magic 2 WiFi next
4.6 LAN
You make changes to the network settings in the
LAN area.

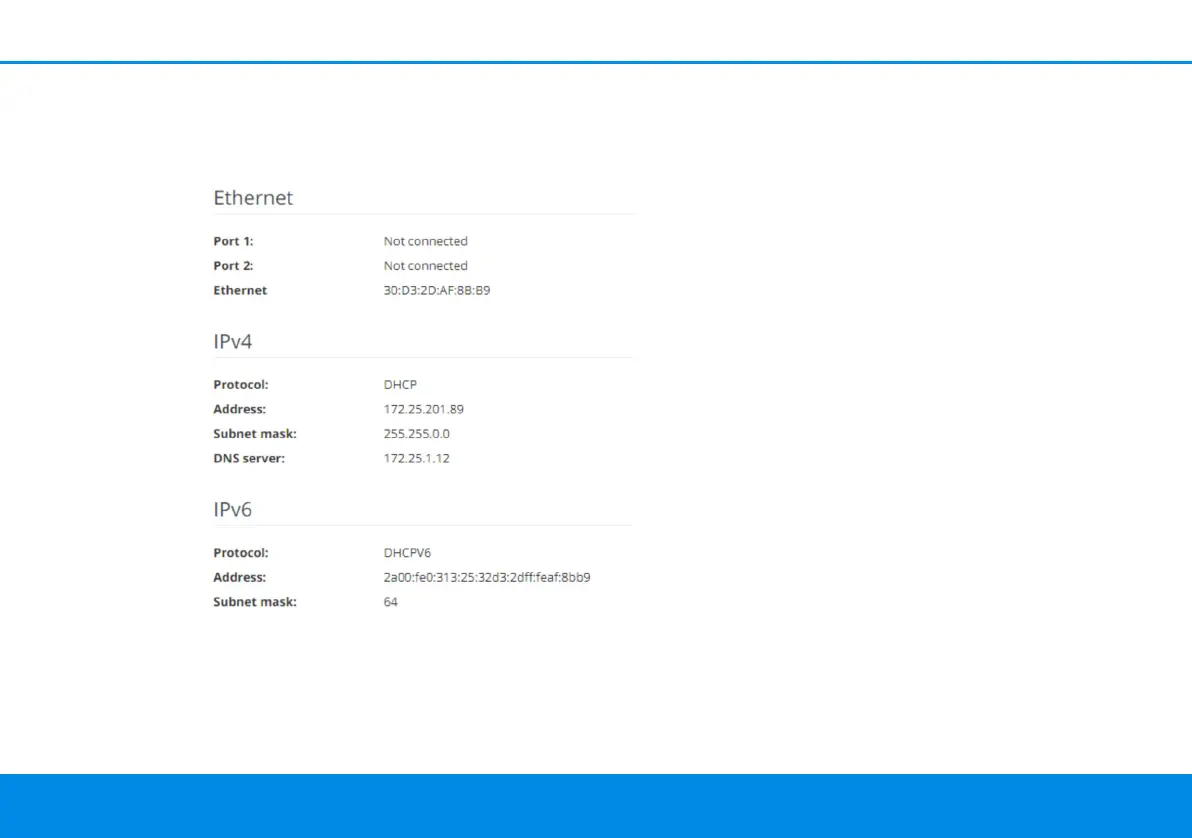

4.6.1Status
You can see the current LAN status of the
devolo Magic adapters here. The Ethernet area
shows the network devices connected to the two
network connectors Port 1 and Port 2 (e.g. PC,
NAS, etc.).
IPv4/IPv6
Depending on how the devolo Magic 2 WiFi next
is connected to the Internet (IPv4 or IPv6), current
network information is displayed, such as Address,
Subnet mask, Standard gateway and DNS server.
4.6.2IPv4/IPv6 configuration
In the factory default settings, only the Retrieve
network settings from a DHCP server option for
IPv4 is enabled. This means that the IPv4 address is
retrieved automatically from a DHCP server. The
currently assigned network data are visible (greyed
out).
If a DHCP server is already present on the network
for assigning IP addresses (e.g. your Internet rou-
ter), you should leave the Retrieve network set-
tings from a DHCP server option enabled so that
the devolo Magic 2 WiFi next automatically recei-
ves an address from it.
If you want to assign a static IP address, make
entries accordingly for the Address, Subnet mask,
Default gateway and DNS server fields.
Confirm your settings by clicking the Disk icon.

Devolo Magic 2 WiFi next Specifications

General

MIMO type	Multi User MIMO
Power plug	-
Ethernet LAN	Yes
Damping filter	2 - 86 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA, WPA2, WPA3-PSK, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	2400 Mbit/s
Maximum operating distance	500 m
Ethernet LAN interface type	Gigabit Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
WLAN data transfer rates supported	300, 867 Mbit/s
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)
Antenna type	Internal
Certification	WEEE
Product color	White
Country of origin	Germany
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power over Ethernet (PoE)	No
Power consumption (standby)	3.1 W
Power consumption (typical)	8.9 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	40 mm
Width	76 mm
Height	152 mm
Package depth	92 mm
Package width	118 mm
Package height	190 mm
Package weight	570 g
