31 Network configuration
devolo Magic 2 WiFi next

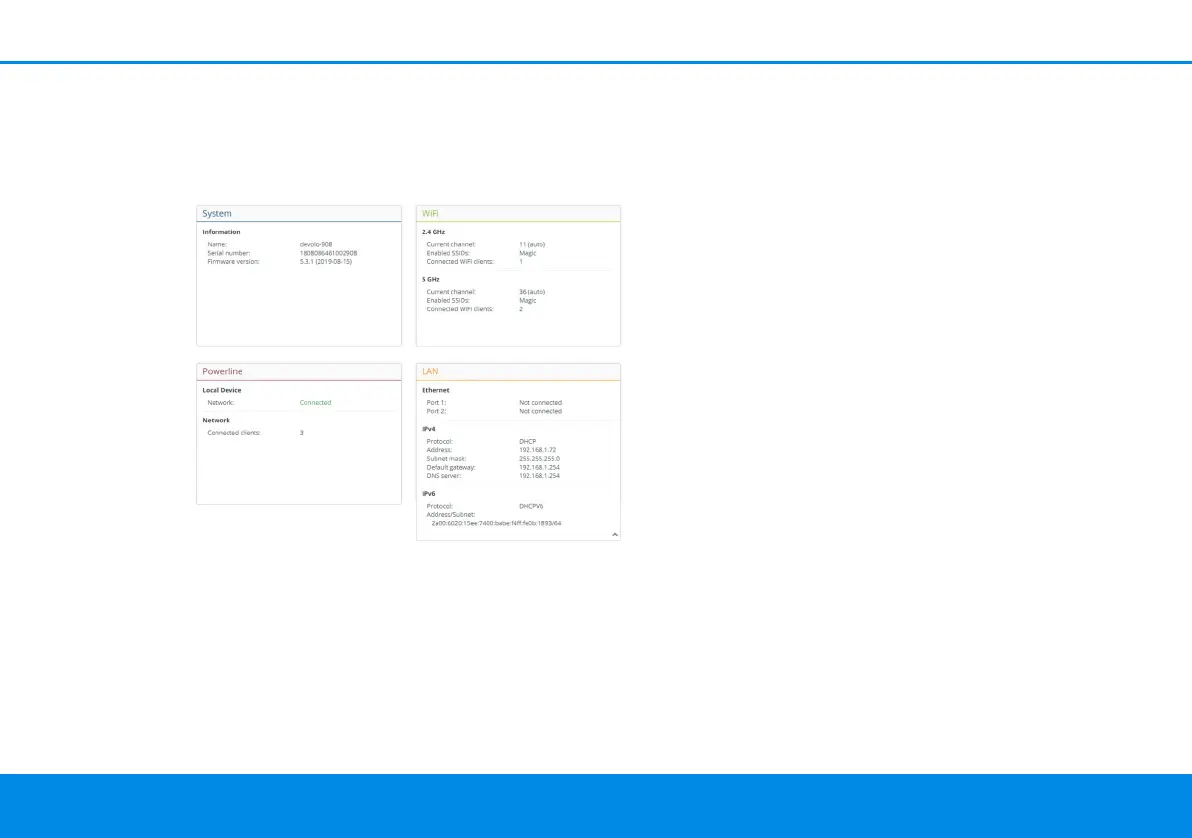

4.3 Overview
The Overview area shows the status of the
devolo Magic 2 WiFi next and the connected LAN,
PLC and Wi-Fi devices.
4.3.1System
Name: Device name
Serial number: Device serial number
Firmware version: Firmware version of the device
4.3.2Wi-Fi
2.4 GHz
Current channel: used frequency channel in the
2.4-GHz frequency range
Enabled SSID: name of the enabled Wi-Fi network
Connected Wi-Fi clients: number of devices
connected to the network.
5 GHz
Current channel: used frequency channel in the 5-
GHz frequency range
Enabled SSIDs: Name of the enabled Wi-Fi
networks
Connected Wi-Fi clients: number of devices
connected to the network.
4.3.3Powerline
Local device
Network: status information “connected“ or “not
connected“
Network
Connected clients: number of devices connected
to the Powerline network

Devolo Magic 2 WiFi next Specifications

General

MIMO type	Multi User MIMO
Power plug	-
Ethernet LAN	Yes
Damping filter	2 - 86 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA, WPA2, WPA3-PSK, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	2400 Mbit/s
Maximum operating distance	500 m
Ethernet LAN interface type	Gigabit Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
WLAN data transfer rates supported	300, 867 Mbit/s
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)
Antenna type	Internal
Certification	WEEE
Product color	White
Country of origin	Germany
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power over Ethernet (PoE)	No
Power consumption (standby)	3.1 W
Power consumption (typical)	8.9 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	40 mm
Width	76 mm
Height	152 mm
Package depth	92 mm
Package width	118 mm
Package height	190 mm
Package weight	570 g
