Devolo Magic 2 WiFi next User Manual

33 Network configuration
devolo Magic 2 WiFi next
4.4.1Status
You can see the current status of your Wi-Fi net-
work configuration here, e.g. the connected Wi-Fi
stations, the MAC address, the selected frequency
band, the SSID, the transfer rates and the connecti-
on duration.

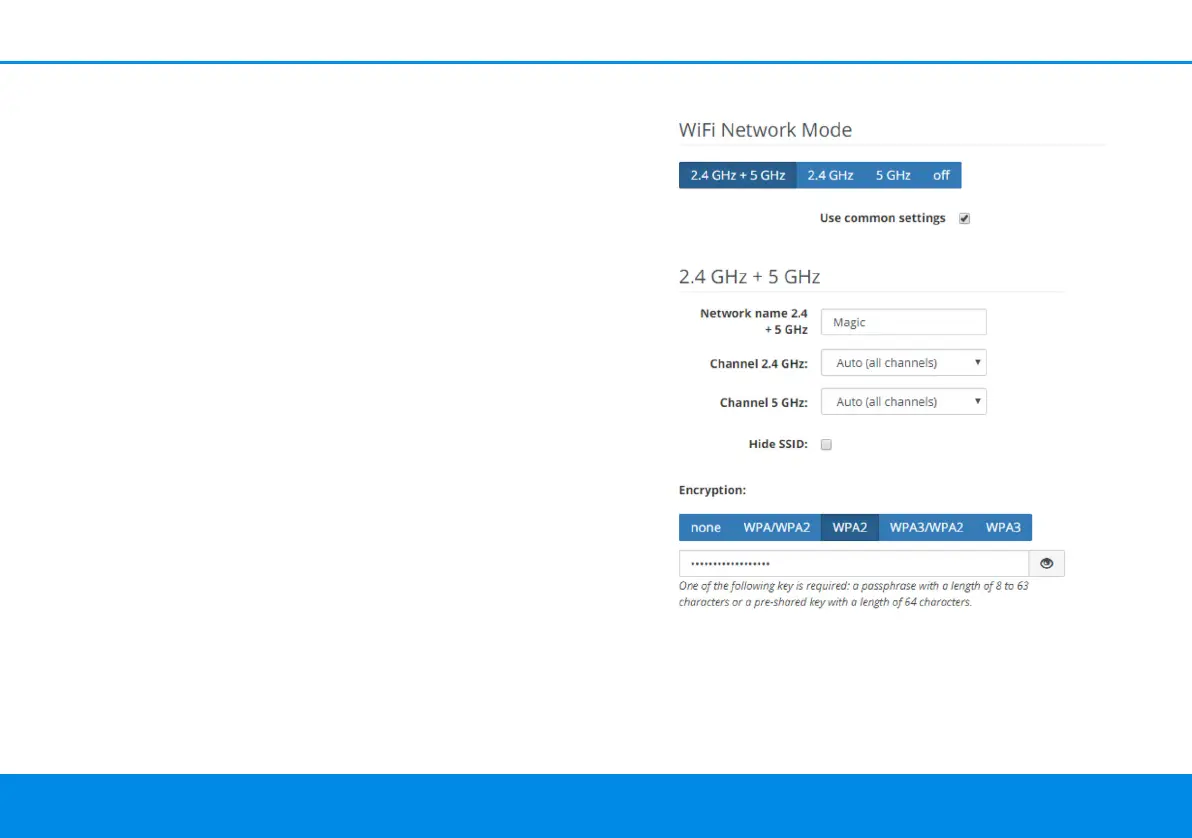

4.4.2Wi-Fi networks
You can make all necessary changes to your Wi-Fi
network here.
Wi-Fi network mode
The devolo Magic 2 WiFi next supports both the
parallel operation of the Wi-Fi frequency bands
and their separate use.

Devolo Magic 2 WiFi next Specifications

General

MIMO type	Multi User MIMO
Power plug	-
Ethernet LAN	Yes
Damping filter	2 - 86 MHz
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA, WPA2, WPA3-PSK, WPS-PBC, WPS-PIN
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	2
Maximum data transfer rate	2400 Mbit/s
Maximum operating distance	500 m
Ethernet LAN interface type	Gigabit Ethernet
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
WLAN data transfer rates supported	300, 867 Mbit/s
Mobile operating systems supported	Android, iOS
Cables included	LAN (RJ-45)
Quantity per pack	1 pc(s)
Antenna type	Internal
Certification	WEEE
Product color	White
Country of origin	Germany
AC input voltage	196 - 250 V
AC input frequency	50 Hz
Power over Ethernet (PoE)	No
Power consumption (standby)	3.1 W
Power consumption (typical)	8.9 W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	40 mm
Width	76 mm
Height	152 mm
Package depth	92 mm
Package width	118 mm
Package height	190 mm
Package weight	570 g
