Page 14 of 63

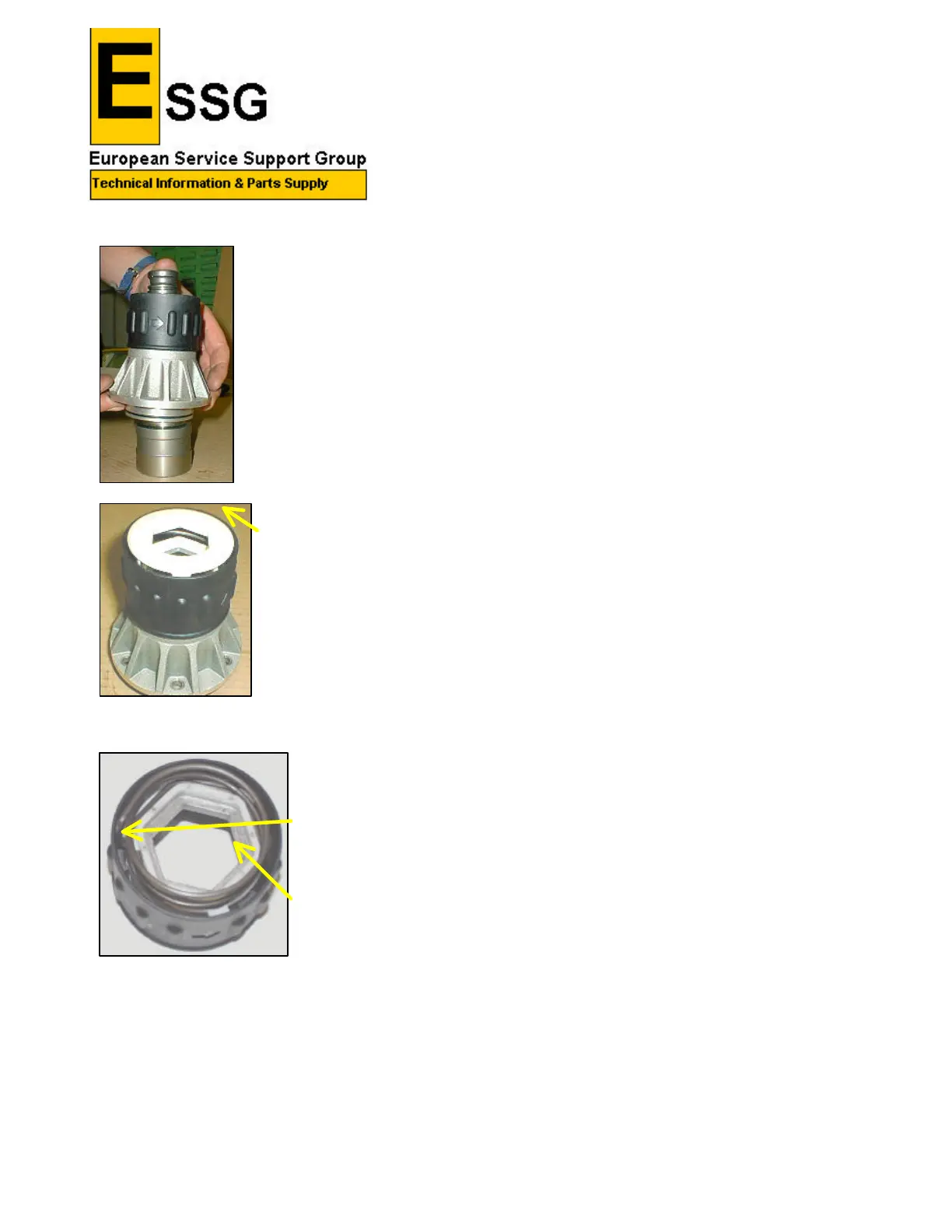

q Lift off housing complete with the Turning sleeve Assembly from Spindle
(107).
Remove Spring Guide item (98) from Turning Sleeve Assembly
q Lever out Spring (99) BEWARE the Spring will be under tension.
q Remove SA Sleeve item (100).

Table of Contents

Other manuals for DeWalt D25900K

Preview: Manual
Manual100 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the DeWalt D25900K and is the answer not in the manual?

DeWalt D25900K Specifications

General IconGeneral
Input power1500 W
Power sourceAC
AC input voltage230 V
AC input frequency50 Hz
Impact rate2040 bpm
Impact energy (max)25 J
Chuck typeSDS Max
Weight and Dimensions IconWeight and Dimensions
Weight9800 g
