Page 42 of 63

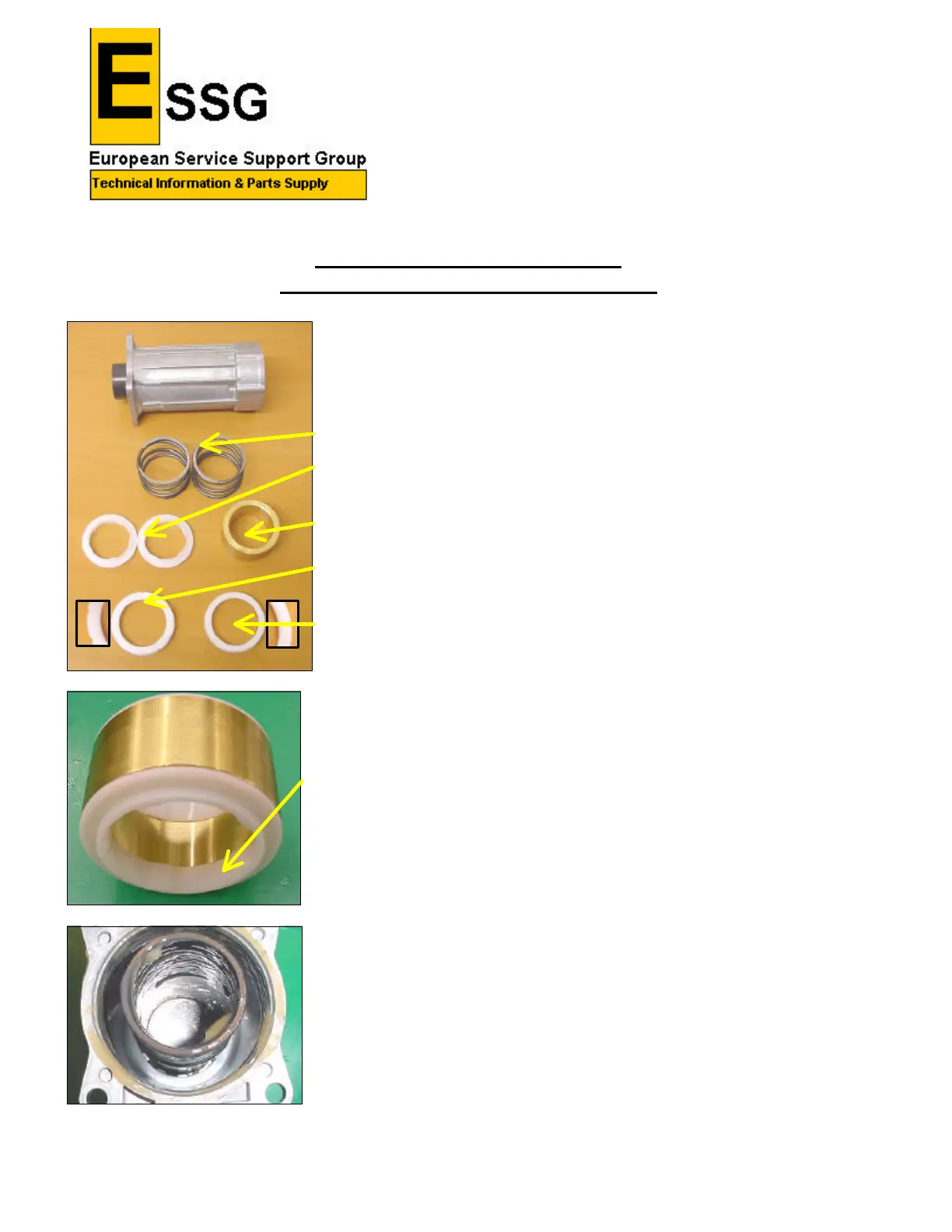

Reassemble Anti-Vibration Unit.
Total amount of Grease (800) 39 Grams.
Spring x 2 (81) 487247-00.
Guide x 2 (82) 576489-00.
Counterweight (83) 579781-00.
Spring Guide grooved (86) 576488-00
Spring Guide smooth (80) 487293-00
q Fit the 2 Guides (82) to the Counterweight (83) with the tapered
diameter into the internal bore of the Counterweight.
q Fit the smooth Spring Guide into the housing over the Cylinder
with the recess facing up.
q Lightly grease both ends of one Spring (81) place the spring over
the Cylinder and into the Housing.
