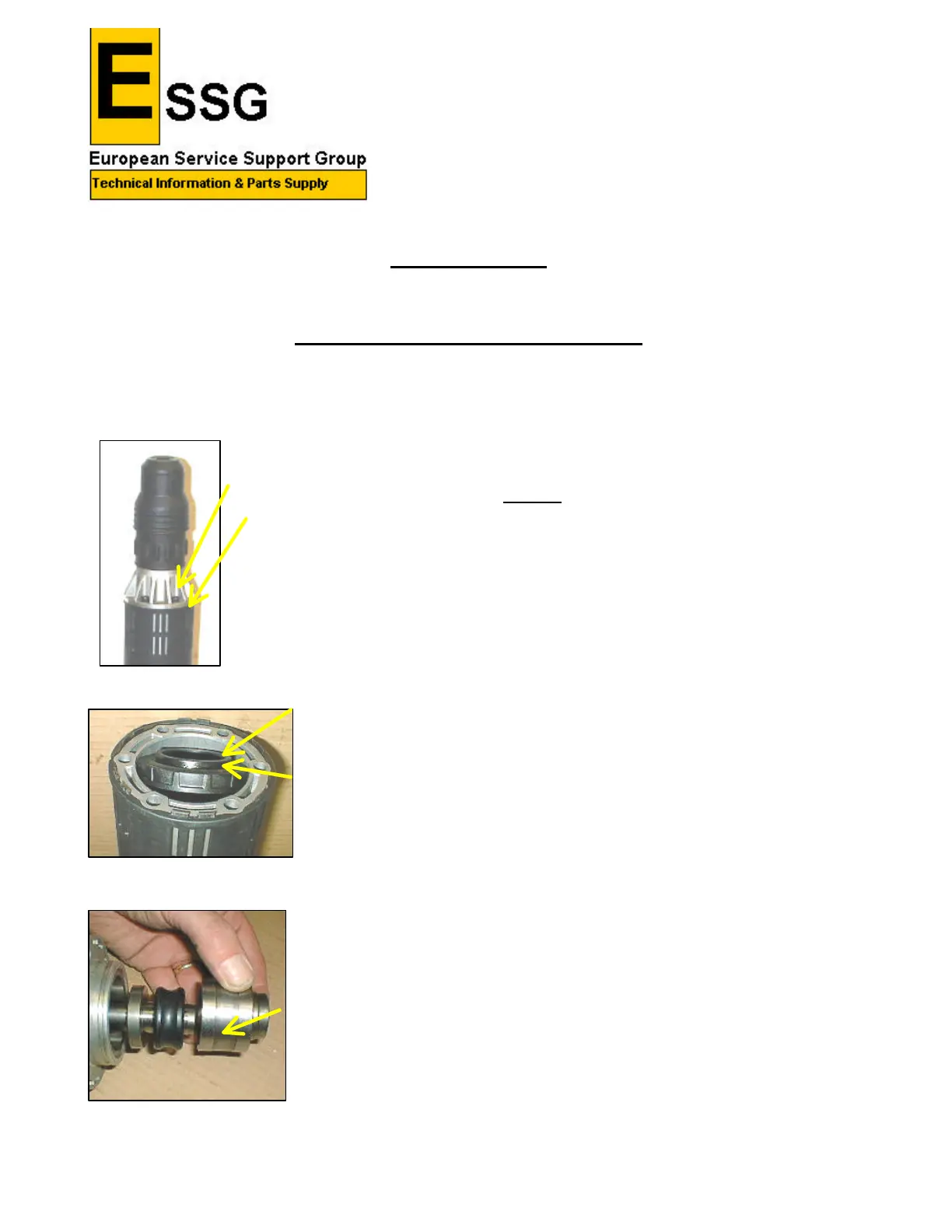

Remove Tool Holder and Beat Piece.
q Remove Side handle (59) if fitted.
q Undo six screws (102) remove Tool Holder Assembly (111) a flat bladed
screwdriver may be required to Gently lever the housing away from the
Anti-vibration unit.
q Beware that the internal components will fall out from the Tool Holder
q Remove item (72) from inside the Housing.
q Remove the O Ring
q Remove items (67,68,69,70). From inside the Tool Holder Unit,
