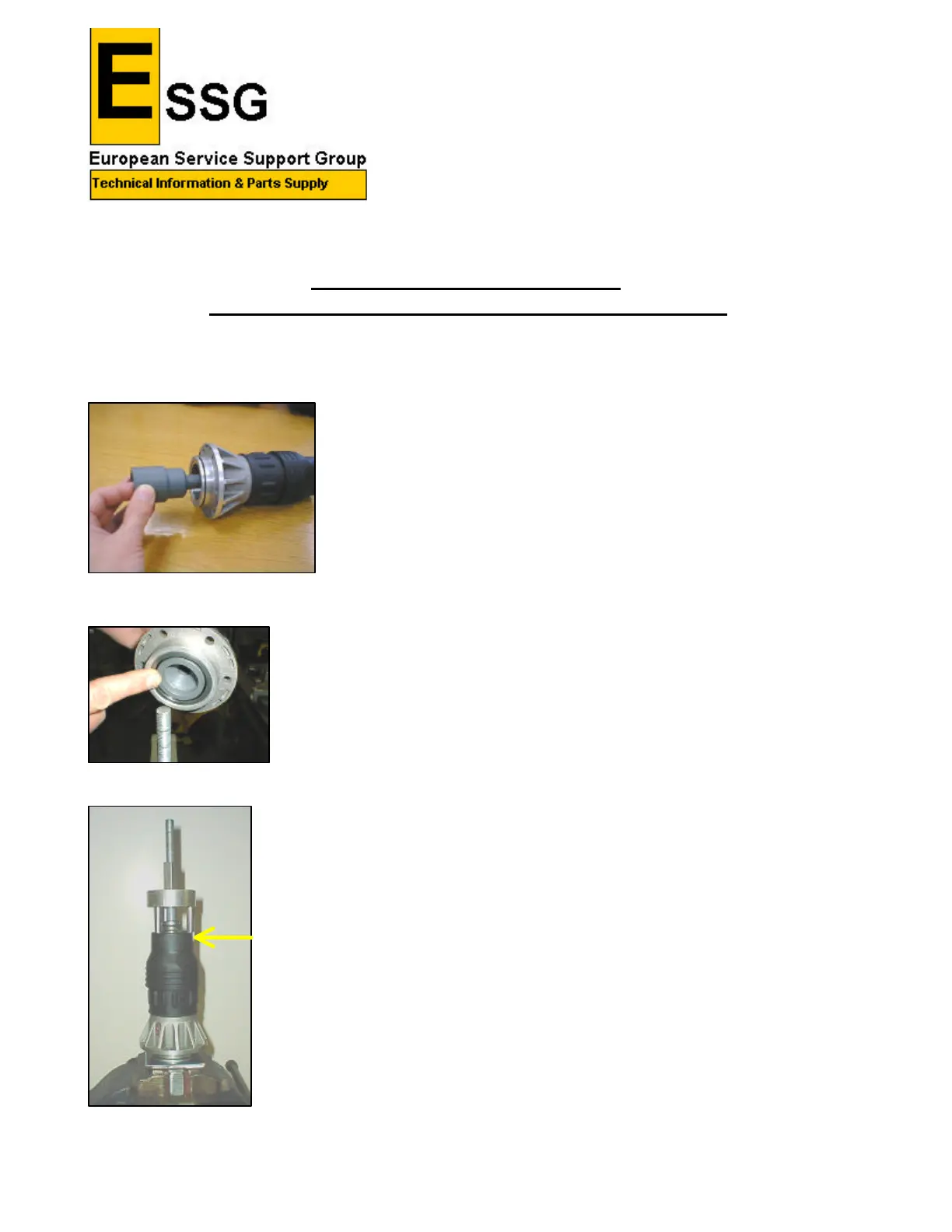

Dismantle Tool Holder Assembly.
Service Tooling 559619-99 Snap Ring Assembly tool.
q Clamp Service tool into a vice.
q Important Note, Fit insert from Service Jig into the Tool
Holder spindle, be careful not to damage the Seal.
q Make sure that the insert stays in position otherwise the Seal inside the
Spindle could be damaged, then lower the Tool Holder onto the Jig..
q Place the ‘Three legged ’part of the service tool over the threaded rod so
that the legs rest on the edge of the Black Sliding Sleeve (91).
