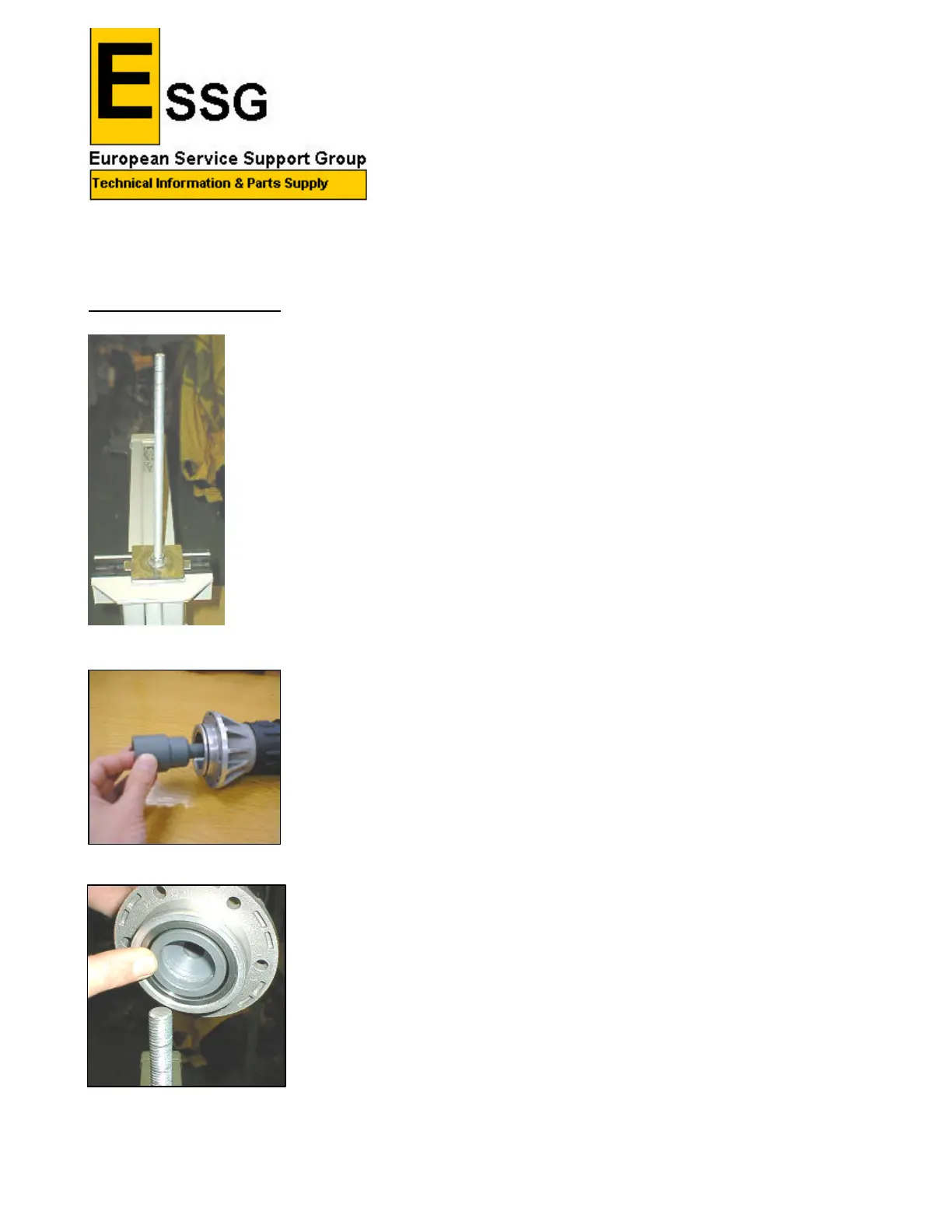

Snap Ring Assembly
q Clamp Service Tool 559620-99 in vice.
q Fit insert from Service Jig into the spindle be careful not to
damage the Seal .
q Place Flange and Spindle SA on Service Jig,
q MAKE SURE THE PROTECTIVE INSERT STAYS INSIDE THE
SPINDLE WHILE THE FLANGE IS LOWERED ONTO THE
SERVICE TOOL. OTHERWISE THE SEAL WILL BE DAMAGED
BY THE THREAD ON THE STUD
